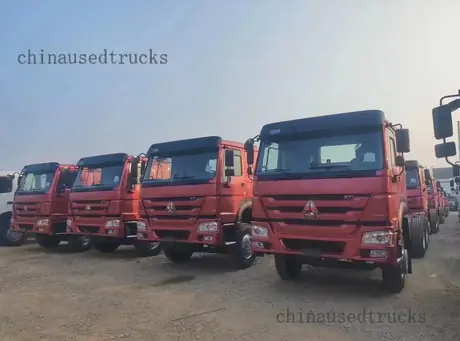

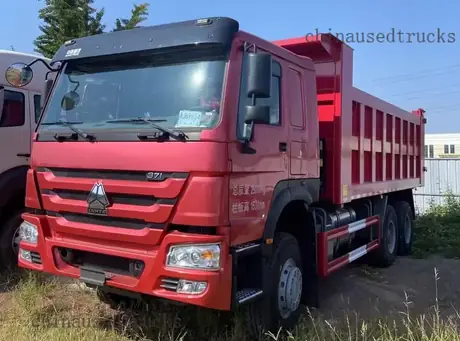

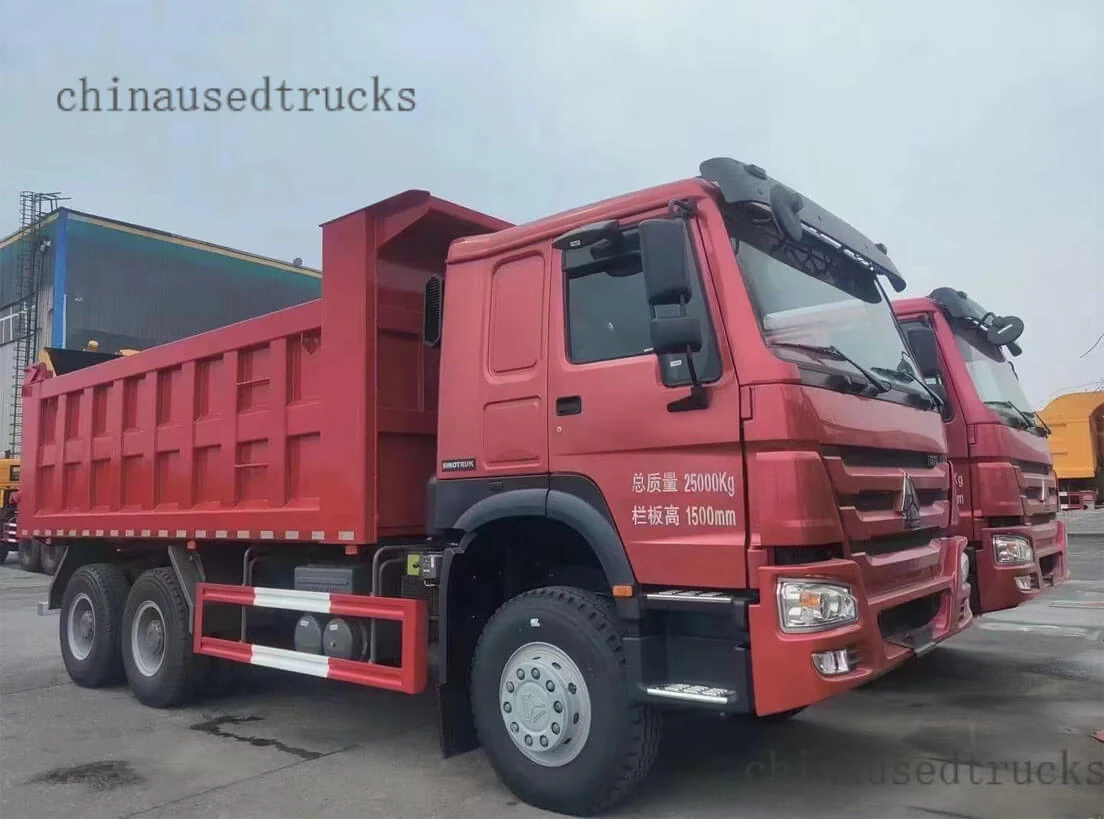

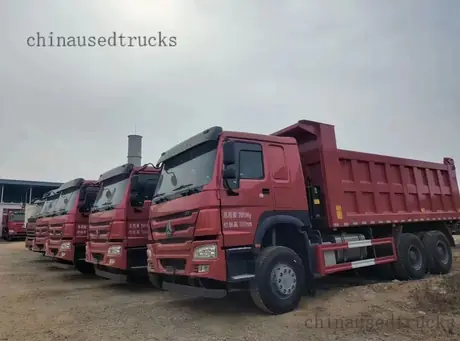

HOWO 6x4 dump truck The whole vehicle chassis has New truck can be picked up
HOWO V7 6x4 tipper with a double deck frame and 14 millimetre floor plate
A HOWO V7 6x4 dump truck with the HW76 cab and a WD615.47 371 horsepower engine driving through an HW19712 gearbox with an HW50 direct coupling power take off. The 5800 by 2350 by 1500 millimetre body sits on a double frame of 8 plus 8 by 300 with a 14 millimetre floor and 10 millimetre sides. Complete chassis and the truck can be picked up as new stock.
Photographs of the specific unit are sent before loading. Specification confirmed in writing.
Key Benefits
01
Double deck 8 plus 8 by 300 frame built for continuous heavy load rather than occasional overload
02
14 millimetre floor plate and 10 millimetre sides survive rock and demolition spoil
03
MCP16ZG double rear axle on a 5.26 ratio for pulling power on loaded gradients
Who It Is For
- Quarry operators hauling blasted rock
- Demolition contractors moving spoil
- Aggregate fleets on mixed surfaces
Problems It Solves
- Thin floor plate deforms in the first season of rock haulage
- Single layer frames crack where the body meets the chassis
- Standard axle ratios leave a loaded truck short of torque on a climb
Specifications
Figures below are taken from the published specification of this listing. Anything not listed will be confirmed in writing before loading.
| Model | HOWO V7 |
|---|---|
| Cab | HW76 |
| Engine | WD615.47(371hp) |
| Gear Box | HW19712 |
| Front Axle | VGD95 |
| Rear Box | MCP16ZG double rear box |
| Speed Ratio | 5.26 |
| Frame | Double frame (8+8/300) |
| Steering | 8118 |
| Exhaust System | Standard |
| Bumper | High bumper (all metal) |
| Tyre | 12.00R20(Reinforced Steel ring/mixed pattern) |
| Fuel Tank | 300L |
| Top Configuration | 5800*2350*1500;bottom 14;side 10 |
Use Guide
- Use the HW50 power take off for the tipping circuit rather than adding a separate drive
- Reinforced steel rings on the 12.00R20 tyres suit mixed pattern site and road running
How It Compares
Compared with An 8x4 tipper
6x4 keeps traction on soft ground while 8x4 spreads load for higher payload on firmer surfaces
Where It Is Used
- Urgent project mobilisation
- Fleet top up between budget cycles
- Dealer batch stocking
- Body and superstructure conversion
Related Products
DISCOUNT SPOT TRUCK
A number of discount spot truck Shacman mixer trucks price for saleUnused Shacman mixer chassis from spot stock ready for immediate loading
View specification
DISCOUNT SPOT TRUCK
Used Concrete Pump Truck 371HP High Quality371HP concrete pump truck on a HOWO chassis for high rise and long distance placement
View specification
DISCOUNT SPOT TRUCK
A 5.6m HOWO second-hand dump truck sell at a discount5.6 metre HOWO tipper with a 400 horsepower Weichai engine offered at a discount
View specification
DISCOUNT SPOT TRUCK
Multiple HOWO 6x4 right-hand drive 380hp 5.6m dump truckBatch of right hand drive HOWO 6x4 tippers with 380 horsepower Weichai engines
View specificationRelated Case Studies
Frequently Asked Questions
Is This a New Truck
The listing states the whole vehicle chassis is present and that the new truck can be picked up, so it is spot stock rather than a worked vehicle.
What Is the Floor and Side Plate Thickness
The top configuration is 5800 by 2350 by 1500 millimetres with a 14 millimetre bottom and 10 millimetre sides.
What Does the Speed Ratio of 5.26 Mean in Practice
It is the final drive ratio at the rear axles. A numerically higher ratio favours pulling power on gradients over top speed.
Ask About This Unit
Send us the listing name and we will confirm current availability photographs and the delivered specification.
