SRC Series Twist Clamp Cylinder is listed in the pneumatic cylinders section of the Betre catalogue under the Twist Clamp Cylinder series. It is manufactured by YUEQING BETRE AUTOMATION CO., LTD. in Yueqing, Zhejiang, and supplied to automation machine builders and distributors in China and export markets.

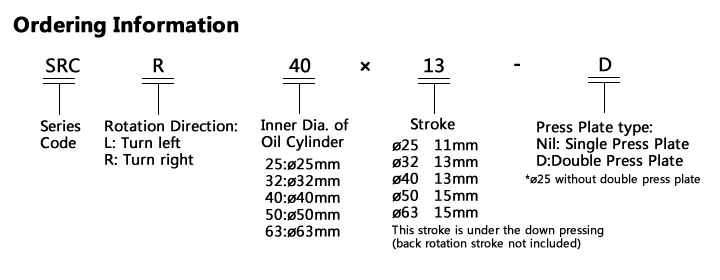

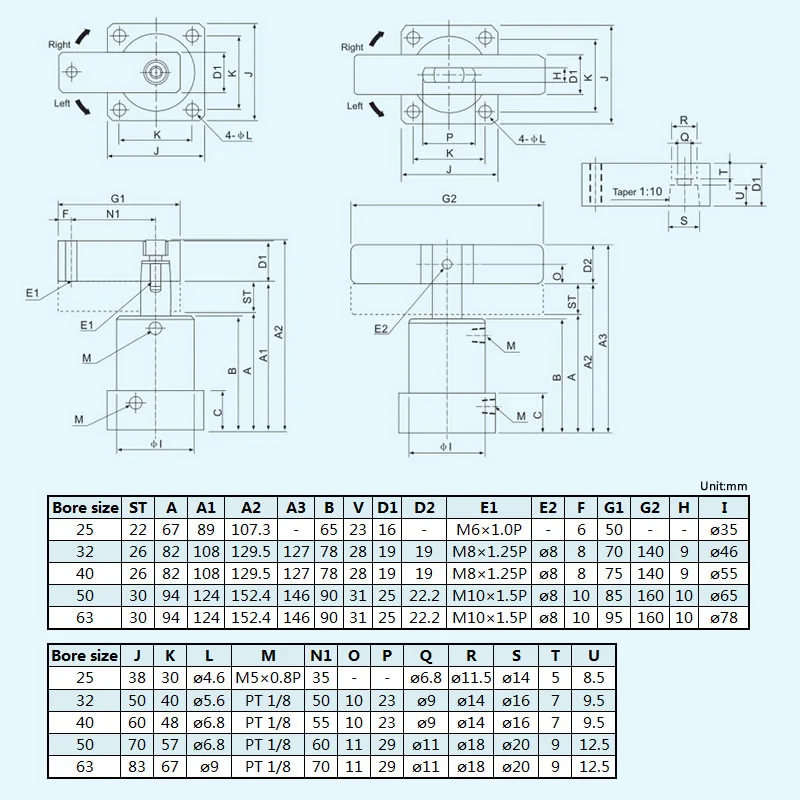

The tables and drawings below are reproduced from the Betre product catalogue for this model.
| Cylinder diameter (mm) | 25 | 32 | 40 | 50 | 63 | ||
| Acting mode | Repeated move | ||||||
| Fluid | Air | ||||||
| Pressure range | 1.5~9.5kgf/cm²(0.15~0.95MPa) | ||||||
| Working temperature | 0~60℃ | ||||||
| Operating speed | 30~500mm/sec | ||||||
| Back rotation stroke | 11mm | 13mm | 15mm | ||||
| Down pressing stroke | 11mm | 13mm | 15mm | ||||
| Rotation angle | 90° others able to be designed(0°,45°,60°) | ||||||
| Rotation direction | Turn left(from right to left)--L; Turn right(from left to right)--R | ||||||
| Buffering direction | Rubber gasket buffer | ||||||
| Lubrication | Free supply | ||||||
| Port size | M5×0.8 | ||||||
Other parts from the same Twist Clamp Cylinder range, usually quoted alongside this one.
SRC Series Twist Clamp Cylinder sits in the Pneumatic Cylinders category of the Betre catalogue, under the Twist Clamp Cylinder series.
Yes. We offer OEM and ODM services according to customers' requirements and we make our own moulds and tooling.
Email [email protected] or [email protected] with the model code and quantity, or call +86-577-61712130. Our contact person is April Huang.
Yes. We do the inspection for all the products before delivery.
Our products sell all over China and in the international markets of European, North and South American countries, Southeast Asia and Oceania.
Send the quantity and any port thread or bore requirement, and we will confirm price and lead time.
