SDA Series Compact Cylinder is listed in the pneumatic cylinders section of the Betre catalogue under the Compact Cylinder series. It is manufactured by YUEQING BETRE AUTOMATION CO., LTD. in Yueqing, Zhejiang, and supplied to automation machine builders and distributors in China and export markets.

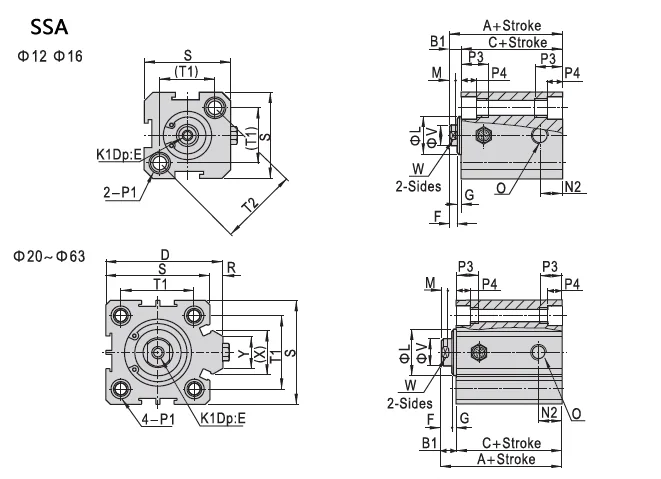

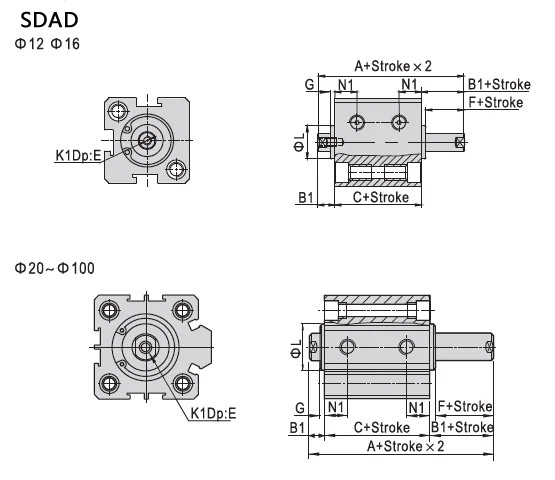

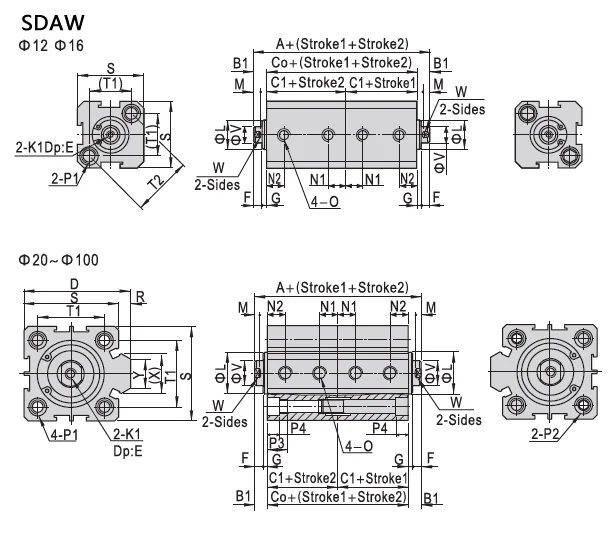

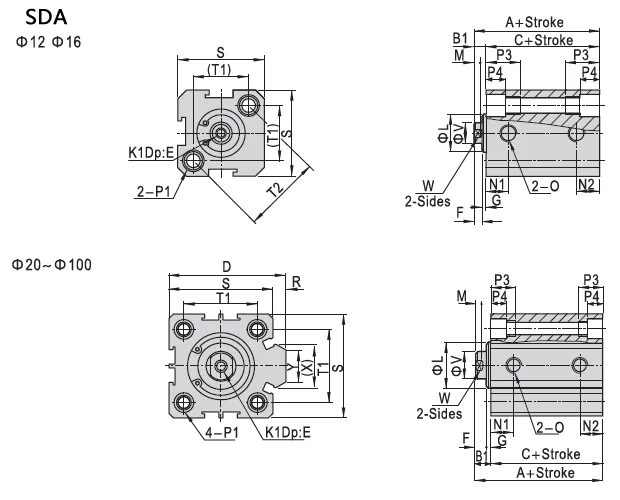

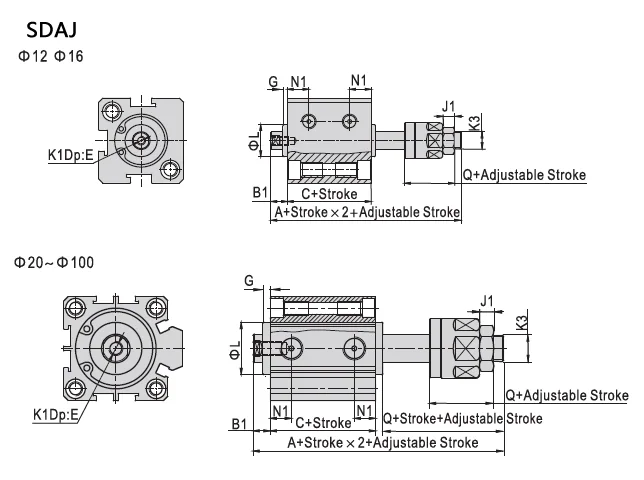

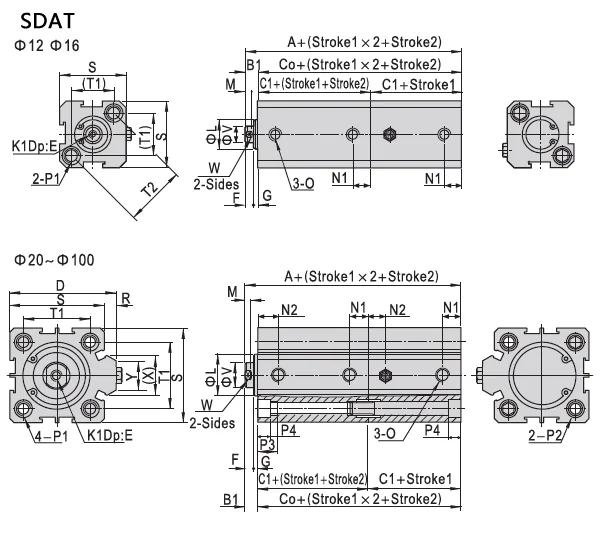

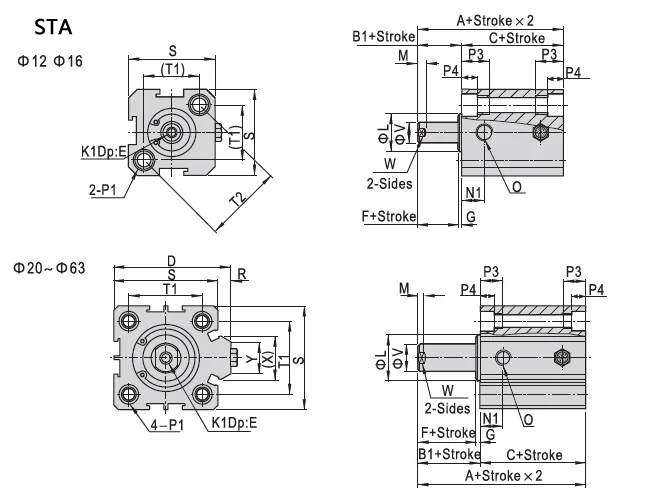

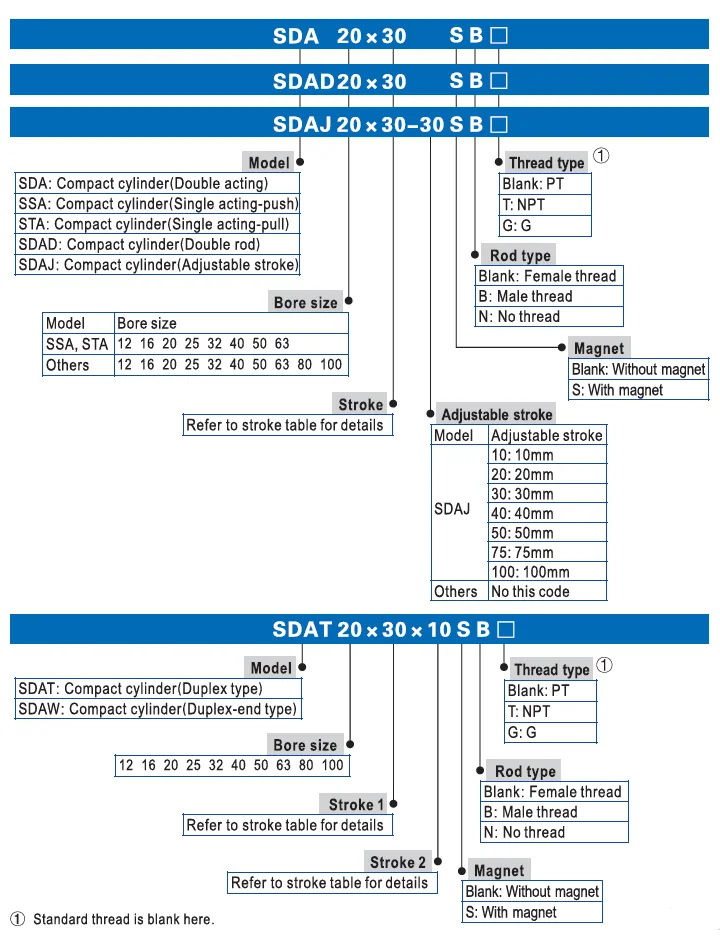

The tables and drawings below are reproduced from the Betre product catalogue for this model.
| Bore size(mm) | 12 | 16 | 20 | 25 | 32 | 40 | 50 | 63 | 80 | 100 | ||
| Acting type | Double acting | |||||||||||
| Single acting-Push type, Single acting-Pull type | - | |||||||||||
| Fluid | Air( to be filtered by 40μm filter element | |||||||||||
| Operating pressure | Double acting | 0.1~1.0MPa(15~145psi)(1.0~10.0bar) | ||||||||||
| Single acting | 0.2~1.0MPa(28~145psi)(2.0~10.0bar) | |||||||||||
| Proof pressure | 1.5MPa(215psi)(15bar) | |||||||||||
| Temperature℃ | -20~80 | |||||||||||
| Speed range mm/s | Double acting:30~500 Single acting:50~500 | |||||||||||
| Stroke tolerance | +1.0/0 | |||||||||||
| Cushion type | Bumper | |||||||||||
| Port size Note) | M5×0.8 | PT1/8 | PT1/4 | PT3/8 | ||||||||
| Bore size(mm) | Standard stroke(mm) | Max.std stroke | Max. stroke | ||||||||
| 12,16 | Double acting | With magnet | 5,10,15,20,25,30,35,40,45,50 | 50 | 70 | ||||||
| Without magnet | 5,10,15,20,25,30,35,40,45,50,55,60 | 60 | 80 | ||||||||
| Single acting | 5,10,15,20,25,30 | 30 | - | ||||||||
| 20 | Double acting | With magnet | 5,10,15,20,25,30,35,40,45,50,55,60,65,70,75,80,85,90 | 90 | 130 | ||||||
| Without magnet | 5,10,15,20,25,30,35,40,45,50,55,60,65,70,75,80,85,90,100 | 100 | 140 | ||||||||
| Single acting | 5,10,15,20,25,30 | 30 | - | ||||||||
| 25,32,40,50,63 | Double acting | With magnet | 5,10,15,20,25,30,35,40,45,50,55,60,65,70,75,80,85,90,100,110,120 | 120 | 150 | ||||||
| Without magnet | 5,10,15,20,25,30,35,40,45,50,55,60,65,70,75,80,85,90,100,110,120,130 | 130 | 160 | ||||||||
| Single acting | 5,10,15,20,25,30 | 30 | - | ||||||||
| 80,100 | Double acting | With magnet | 5,10,15,20,25,30,35,40,45,50,55,60,65,70,75,80,85,90,100,110,120 | 120 | 150 | ||||||
| Without magnet | 5,10,15,20,25,30,35,40,45,50,55,60,65,70,75,80,85,90,100,110,120,130 | 130 | 160 | ||||||||
| Bore size (mm) | A | C | B1 | D | E | F | G | K1 | L | M | N1 | N2 | ||||
| Standard | With magnet | Standard | With magnet | St=5 | St>5 | St=5 | St>5 | |||||||||
| 12 | 22 | 32 | 17 | 27 | 5 | - | 6 | 4 | 1 | M3 x 0.5 | 10.2 | 3 | 7.5 | 7.5 | 5 | 5 |
| 16 | 24 | 34 | 18.5 | 28.5 | 5.5 | - | 6 | 4 | 1.5 | M3 x 0.5 | 11 | 3 | 8 | 8 | 5.5 | 5.5 |
| 20 | 25 | 35 | 19.5 | 29.5 | 5.5 | 36 | 8 | 4 | 1.5 | M4 x 0.7 | 13 | 3 | 9 | 9 | 5.5 | 5.5 |
| 25 | 27 | 37 | 21 | 31 | 6 | 42 | 10 | 4 | 2 | M5 x 0.8 | 17 | 3 | 9.2 | 9.2 | 5.5 | 5.5 |
| 32 | 31.5 | 41.5 | 24.5 | 34.5 | 7 | 50 | 12 | 4.6 | 2.4 | M6 x 1.0 | 22 | 3 | 9 | 9 | 6.5 | 9 |
| 40 | 33 | 43 | 26 | 36 | 7 | 58.5 | 12 | 4 | 3 | M8x1.25 | 28 | 3 | 9.5 | 9.5 | 7.5 | 7.5 |
| 50 | 37 | 47 | 28 | 38 | 9 | 71.5 | 15 | 5 | 4 | M10x1.5 | 38 | 3 | 8 | 10.5 | 8 | 10.5 |
| 63 |
41 |
51 | 32 | 42 | 9 | 84.5 | 15 | 5 | 4 | M10x1.5 | 40 | 3 | 9.5 | 12 | 9.5 | 11 |
| 80 | 52 | 62 | 41 | 51 | 11 | 104 | 20 | 6 | 5 | M14x1.5 | 45 | 4 | 11.5 | 14.5 | 11.5 | 14.5 |
| 100 | 63 | 73 | 51 | 61 | 12 | 124 | 20 | 7 | 5 | M18x1.5 | 55 | 4 | 16 | 20.5 | 16 | 20.5 |
| Bore size (mm) | O | P1 | P3 | P4 | R | S | T1 | T2 | V | W | X | Y | |||
| 12 | M5 x 0.8 | 2-Sides:ø6.5 Thread: M5x0.8 Thru.hole:ø4.2 | 12 | 4.5 | - | 25 | 16.2 | 23 | 6 | 5 | - | - | |||
| 16 | M5 x 0.8 | 2-Sides:ø6.5 Thread: M5x0.8 Thru.hole:ø4.2 | 12 | 4.5 | - | 29 | 19.8 | 28 | 6 | 5 | - | - | |||
| 20 | M5 x 0.8 | 2-Sides:ø6.5 Thread: M5x0.8 Thru.hole:ø4.2 | 14 | 4.5 | 2 | 34 | 24 | - | 8 | 6 | 11.3 | 10 | |||
| 25 | M5 x 0.8 | 2-Sides:ø8.2 Thread: M6x1.0 Thru.hole:ø4.6 | 15 | 5.5 | 2 | 40 | 28 | - | 10 | 8 | 12 | 10 | |||
| 32 | PT1/8 | 2-Sides:ø8.2 Thread: M6x1.0 Thru.hole:ø4.6 | 16 | 5.5 | 6 | 44 | 34 | - | 12 | 10 | 18.3 | 15 | |||
| 40 | PT1/8 | 2-Sides:ø10 Thread: M8x1.25 Thru.hole:ø6.5 | 20 | 7.5 | 6.5 | 52 | 40 | - | 16 | 14 | 21.7 | 16 | |||
| 50 | PT1/4 | 2-Sides:ø11 Thread: M8x1.25 Thru.hole:ø6.5 | 25 | 8.5 | 9.5 | 62 | 48 | - | 20 | 17 | 30 | 20 | |||
| 63 | PT1/4 | 2-Sides:ø11 Thread: M8x1.25 Thru.hole:ø6.5 | 25 | 8.5 | 9.5 | 75 | 60 | - | 20 | 17 | 28.7 | 20 | |||
| 80 | PT3/8 | 2-Sides:ø14 Thread: M12x1.75 Thru.hole:ø9.2 | 25 | 10.5 | 10 | 94 | 74 | - | 25 | 22 | 36 | 26 | |||
| 100 | PT3/8 | 2-Sides:ø17.5 Thread: M14x2.0 Thru.hole:ø11.3 | 30 | 13 | 10 | 114 | 90 | - | 32 | 27 | 35 | 26 | |||
