CQ2B Series Compact Cylinder is listed in the pneumatic cylinders section of the Betre catalogue under the Compact Cylinder series. It is manufactured by YUEQING BETRE AUTOMATION CO., LTD. in Yueqing, Zhejiang, and supplied to automation machine builders and distributors in China and export markets.
The tables and drawings below are reproduced from the Betre product catalogue for this model.

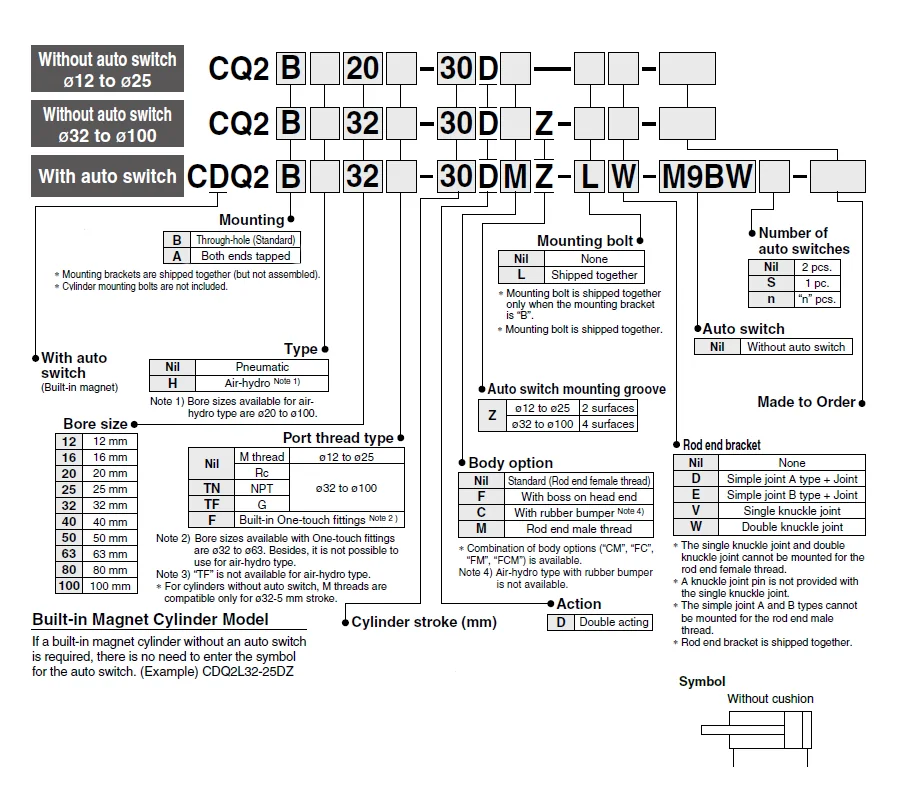

| Bore size(mm) | 12 | 16 | 20 | 25 | 32 | 40 | 50 | 63 | 80 | 100 | |||
| Action | Double acting,Single rod | ||||||||||||
| Fluid | Air | ||||||||||||
| Proof pressure | 1.5MPa | ||||||||||||
| Maximum operating pressure | 1.0MPa | ||||||||||||
| Minimum operating pressure | 0.7MPa | 0.05MPa | |||||||||||
| Amblent and fluid temperature |
Without auto switch:-10 to 70°C (No freezing) With auto switch: –10 to 60°C (No freezing) |
||||||||||||
| Lubrication | Not required (Non-lube) | ||||||||||||
| Piston speed | 50 to 500 mm/s | ||||||||||||
| Allowable kinetic energy(J) | Standard | 0.022 | 0.038 | 0.055 | 0.09 | 0.15 | 0.26 | 0.46 | 0.77 | 1.36 | 2.27 | ||
| With rubber bumper | 0.043 | 0.075 | 0.11 | 0.18 | 0.29 | 0.52 | 0.91 | 1.54 | 2.71 | 4.54 | |||
| Stroke length tolerance | +1.0mm Note) /0 | ||||||||||||
| Bore size | Standard Stroke | ||||
| 12,16 | 5,10,15,20,25,30 | ||||
| 20,25 | 5,10,15,20,25,30,35,40,45,50 | ||||
| 32,40 | 5,10,15,20,25,30,35,40,45,50,75,100 | ||||
| 50,63,80,100 | 10,15,20,25,30,35,40,45,50,75,100 | ||||

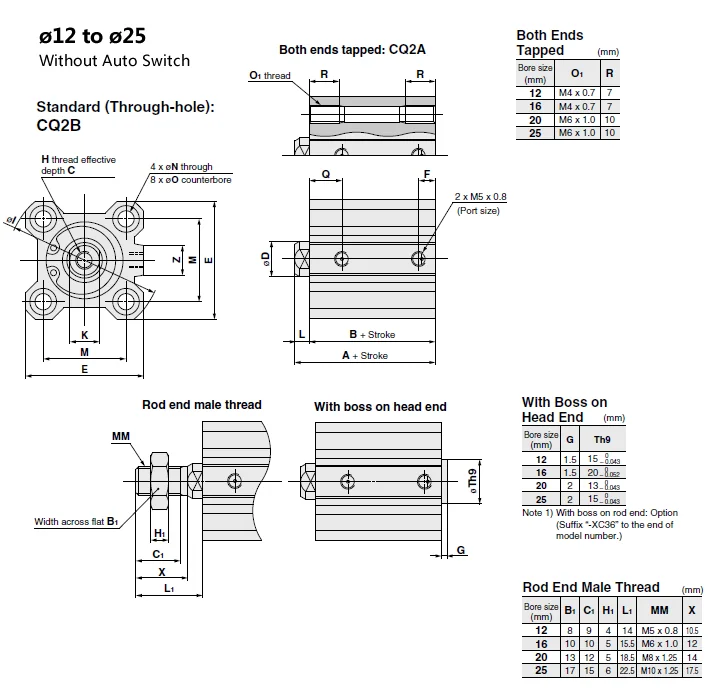

| Bore size (mm) | Stroke range(mm) | A | B | C | D | E | F | H | I | K | L | M | N | O | Q | Z | |
| 12 | 5 to 30 | 20.5 | 17 | 6 | 6 | 25 | 5 | M3x0.5 | 32 | 5 | 3.5 | 15.5 | 3.5 | 6.5 depth 3.5 | 7.5 | - | |
| 16 | 5 to 30 | 22 | 18.5 | 8 | 8 | 29 | 5.5 | M4x0.7 | 38 | 6 | 3.5 | 20 | 3.5 | 6.5 depth 3.5 | 8 | 10 | |
| 20 | 5 to 50 | 24 | 19.5 | 7 | 10 | 36 | 5.5 | M5x0.8 | 47 | 8 | 4.5 | 25.5 | 5.5 | 9 depth 7 | 8 | 10 | |
| 25 | 5 to 50 | 27.5 | 22.5 | 12 | 12 | 40 | 5.5 | M6x1.0 | 52 | 10 | 5 | 28 | 5.5 | 9 depth 7 | 9 | 10 | |

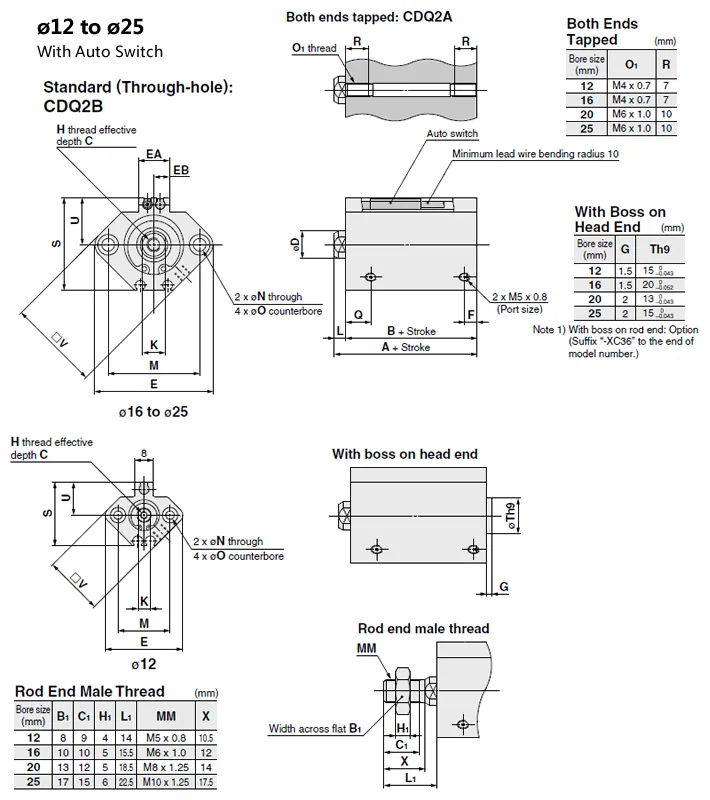

| Bore size (mm) | Stroke range(mm) | A | B | C | F | E | EA | EB | F | H | K | L | M | N | O | Q | S | U | V | |
| 12 | 5 to 30 | 31.5 | 28 | 6 | 6 | 33 | - | - | 6.5 | M3x0.5 | 5 | 3.5 | 22 | 3.5 | 6.5 depth 3.5 | 11 | 27.5 | 14 | 25 | |
| 16 | 5 to 30 | 34 | 30.5 | 8 | 8 | 37 | 13.2 | 6.8 | 5.5 | M4x0.7 | 6 | 3.5 | 28 | 3.5 | 6.5 depth 3.5 | 10 | 29.5 | 15 | 29 | |
| 20 | 5 to 50 | 36 | 31.5 | 7 | 10 | 47 | 13.6 | 6.8 | 5.5 | M5x0.8 | 8 | 4.5 | 36 | 5.5 | 9 depth 7 | 8 | 35.5 | 18 | 36 | |
| 25 | 5 to 50 | 37.5 | 32.5 | 12 | 12 | 52 | 13.6 | 6.8 | 5.5 | M6x1.0 | 10 | 5 | 40 | 5.5 | 9 depth 7 | 9 | 40.5 | 21 | 40 | |

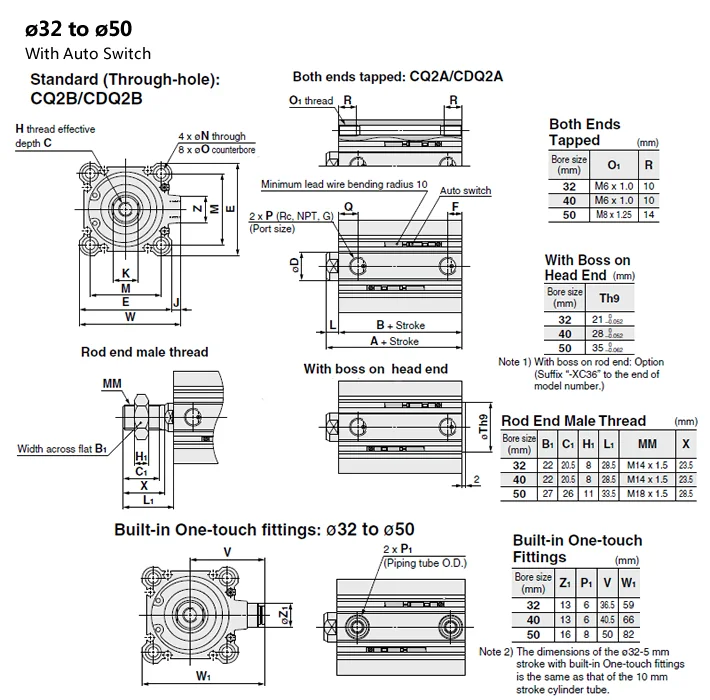

| Bore size(mm) | Stroke range (mm) | Without auto switch | With auto switch | C | D | E | H | J | K | L | M | N | O | W | Z | ||||||||
| A | B | F | P | Q | A | B | F | P | Q | ||||||||||||||
| 32 | 5 | 30 | 23 | 5.5 | M5 x 0.8 | 10 | 40 | 33 | 7.5 | 1/8 | 10 | 13 | 16 | 45 | M8 x 1.25 | 4.5 | 14 | 7 | 34 | 5.5 | 9 depth 7 | 49.5 | 14 |
| 10 to 50 | 7.5 | 1/8 | |||||||||||||||||||||
| 75, 100 | 40 | 33 | |||||||||||||||||||||
| 40 | 5 to 50 | 36.5 | 29.5 | 7.5 | 1/8 | 12.5 | 46.5 | 39.5 | 7.5 | 1/8 | 12.5 | 13 | 16 | 52 | M8 x 1.25 | 5 | 14 | 7 | 40 | 5.5 | 9 depth 7 | 57 | 15 |
| 75, 100 | 46.5 | 39.5 | |||||||||||||||||||||
| 50 | 10 to 50 | 38.5 | 30.5 | 10.5 | 1/4 | 10.5 | 48.5 | 40.5 | 10.5 | 1/4 | 10.5 | 15 | 20 | 64 | M10 x 1.5 | 7 | 17 | 8 | 50 | 6.6 | 11 depth 6 | 71 | 19 |
| 75, 100 | 48.5 | 40.5 | |||||||||||||||||||||

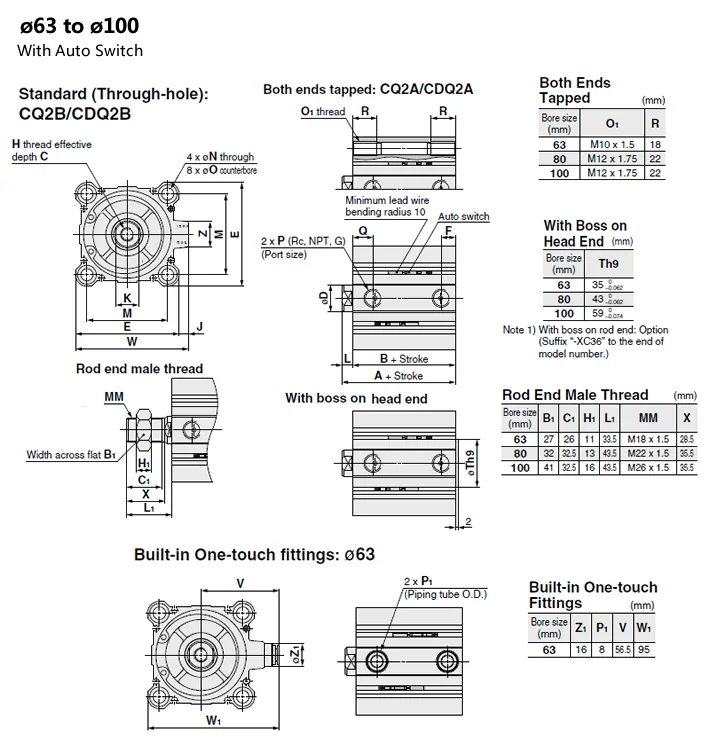

| Bore size (mm) | Stroke range(mm) | Without auto switch | With auto switch | C | D | E | F | H | J | K | L | M | N | O | P | Q | W | Z | ||
| A | B | A | B | |||||||||||||||||
| 63 | 10 to 50 | 44 | 36 | 54 | 46 | 15 | 20 | 77 | 10.5 | M10 x 1.5 | 7 | 17 | 8 | 60 | 9 | 14 depth 10.5 | 1/4 | 15 | 84 | 19 |
| 75, 100 | 54 | 46 | ||||||||||||||||||
| 80 | 10 to 50 | 63.5 | 43.5 | 63.5 | 53.5 | 21 | 25 | 98 | 12.5 | M16 x 2.0 | 6 | 22 | 10 | 77 | 11 | 17.5 depth 13.5 | 3/8 | 16 | 104 | 25 |
| 75, 100 | 63.5 | 53.5 | ||||||||||||||||||
| 100 | 10 to 50 | 65 | 53 | 75 | 63 | 27 | 30 | 117 | 13 | M20 x 2.5 | 6.5 | 27 | 12 | 94 | 11 | 17.5 depth 13.5 | 3/8 | 23 | 123.5 | 25 |
| 75, 100 | 75 | 63 | ||||||||||||||||||
