Which Category Does SC Belong To

SC Series New Type Standard Cylinder sits in the Pneumatic Cylinders category of the Betre catalogue, under the Standard Cylinder series.

Can SC Be Made To A Custom Specification

Yes. We offer OEM and ODM services according to customers' requirements and we make our own moulds and tooling.

Email betre@betre.cc or sales@betre.cc with the model code and quantity, or call +86-577-61712130. Our contact person is April Huang.

Are Products Inspected Before Shipping

Yes. We do the inspection for all the products before delivery.

Which Markets Do You Supply

Our products sell all over China and in the international markets of European, North and South American countries, Southeast Asia and Oceania.

SC Series New Type Standard Cylinder | Pneumatic Cylinders

Name: SC Series New Type Standard Cylinder
Brand: BETRE
SKU: SC

Specifications And Dimensions

The tables and drawings below are reproduced from the Betre product catalogue for this model.

Standard Cylinder Series SC

Products Features

1.Standard cylinder manufactured by our enterprise.
2.The seal of piston adopts heterogeneous two way seal structure. It's dimension is tight and it has the function of grease reservation.
3.It is tie rod cylinder. The cylinder barrel and front/rear cap is jointed by tie rods with high reliability.
4. Compared with ISO15552 standard cylinder, SC series cylinder with the same bore size is shorter.
5.The buffer adjustment of cylinder is smooth and steady.
6.Cylinders and mounting accessories with several specifications are optional.
7.The seal material with high temperature resistance is adopted to guarantee the normal operation of cylinder at 150℃.

Specification

Bore size(mm)		32	40	50	63	80	100
Acting type		Double acting
Fluid		Air(to be filtered by 40μm filter element)
Mounting type	SC	Basic FA FB CA CB LB TC TCM1
	SCD,SCJ	Basic FA LB TC TCM1
Operating pressure		0.1~1.0MPa(15~145psi)(1.0~10.0bar)
Proof pressure		1.5MPa(215psi)(15bar)
Temperature		-20~80℃
Speed range		30~800
Stroke tolerance		0~250(+1.0~0);251~1000(+1.0~0); 1001~1500(+1.8~0)
Cushion type		Variable cushion
Adjustable cushion stroke		21				28	29
Port size Note1)		1/8"	1/4"		3/8"		1/2"

Note1) PT thread, NPT thread and G thread are available.

Strokes

Bore size(mm)	Standard stroke(mm)	Max.st stroke	Max. stroke

32	25,50,75,80,100,125,150,160,175,200,250,300,350,400,450,500	1000	2000
40	25,50,75,80,100,125,150,160,175,200,250,300,350,400,450,500,600,700,800	1200	2000
50	25,50,75,80,100,125,150,160,175,200,250,300,350,400,450,500,600,700,800,900,1000	1200	2000
63	25,50,75,80,100,125,150,160,175,200,250,300,350,400,450,500,600,700,800,900,1000	1500	2000
80	25,50,75,80,100,125,150,160,175,200,250,300,350,400,450,500,600,700,800,900,1000	1500	2000
100	25,50,75,80,100,125,150,160,175,200,250,300,350,400,450,500,600,700,800,900,1000	1500	2000

Note) If the stroke is ≥1600mm within the maximum stroke scope, it is treated as non-standard one.
Please contact the company for other special strokes.

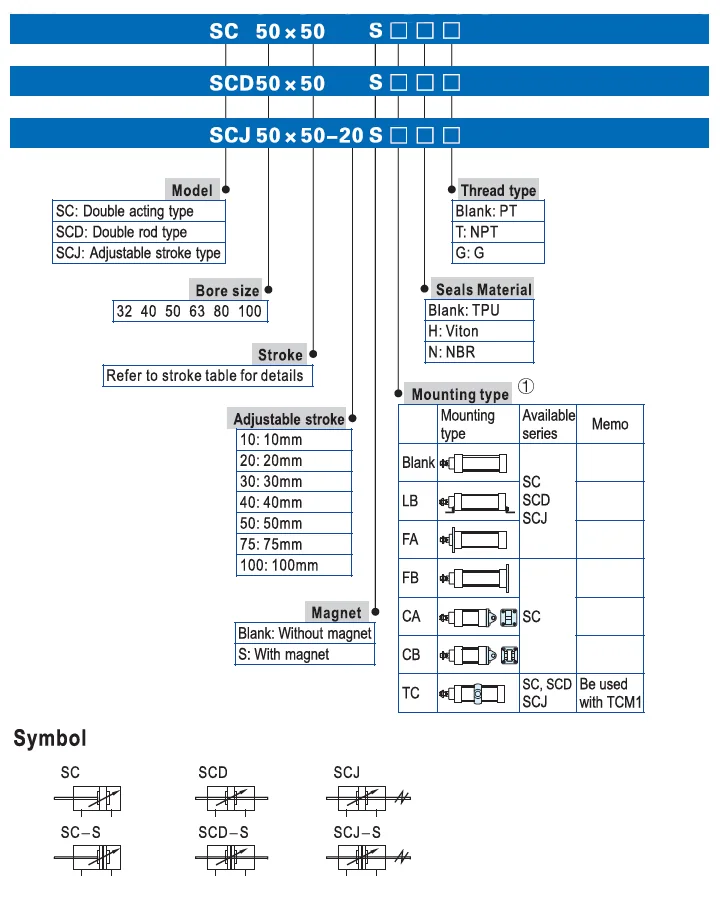

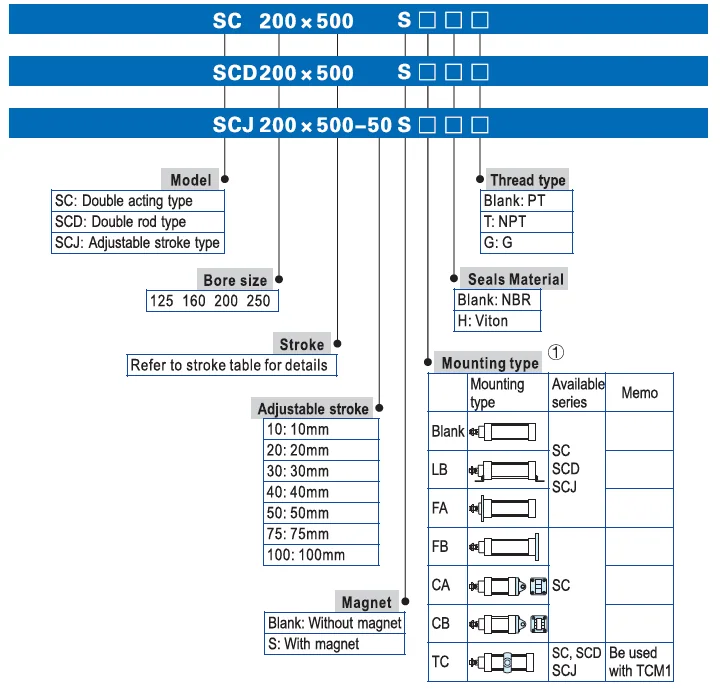

Ordering Information

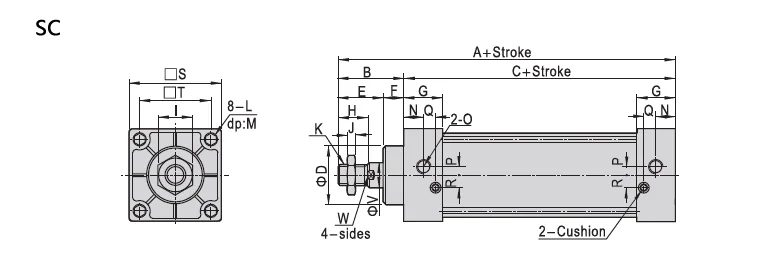

Dimension

Bore size\Item	A	B	C	D	E	F	G	H	I	J	K	L	M	N	O	P	Q	R	S	T	V	W
32	140	47	93	28	32	15	27.5	22	17	6	M10×1.25	M6×1.0	9.5	14	1/8"	5.5	6	6.5	45	33	12	10
40	142	49	93	32	34	15	27.5	24	17	7	M12×1.25	M6×1.0	9.5	15	1/4"	6	5	8.5	50	37	16	14
50	150	57	93	38	42	15	27.5	32	23	8	M16×1.5	M6×1.0	9.5	17	1/4"	8.5	2.5	10	62	47	20	17
63	153	57	96	38	42	15	27.5	32	23	8	M16×1.5	M8×1.25	9.5	15	3/8"	9.5	4	8.5	75	56	20	17
80	182	75	107	47	54	21	33	40	26	10	M20×1.5	M10×1.5	11.5	19.5	3/8"	10	4.5	14	94	70	25	22
100	188	75	113	47	54	21	33	40	26	10	M20×1.5	M10×1.5	11.5	16.5	1/2"	11	6.5	14	112	84	25	22

Remark: The dimensions of magnet type cylinder are the same as non-magnet type cylinder.

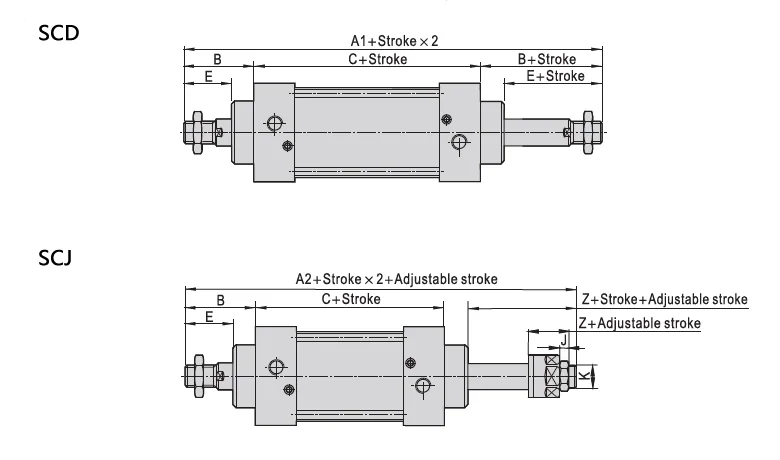

Dimension drawing

Bore size(mm)\Item	A1	A2	B	C	E	Z	J	K
32	187	182	47	93	32	27	6	M10×1.25
40	191	185	49	93	34	28	7	M12×1.25
50	207	194	57	93	42	29	8	M16×1.5
63	210	197	57	96	42	29	8	M16×1.5
80	257	238.5	75	107	54	35.5	10	M20×1.5
100	263	244.5	75	113	54	35.5	10	M20×1.5

Remark:
1. The dimensions of magnet type cylinder are the same as non-magnet type cylinder.
2.The unmarked dimension is the same as SC standard type.

Standard Cylinder Series SC(Big Bore Size type)

Product Features

1. ISO6430 standard cylinder.
2.The seal of piston adopts heterogeneous two way seal structure. It's dimension is tight and it has the function of grease reservation.
3.It is tie rod cylinder. The cylinder barrel and front/rear cap is jointed by tie rods with high reliability.
4.Compared with ISO15552 standard cylinder, SC series cylinder with the same bore size is shorter.
5.The buffer adjustment of cylinder is smooth and steady.
6.Cylinders and mounting accessories with several specifications are optional.
7.The seal material with high temperature resistance is adopted to guarantee the normal operation of cylinder at 150℃.

Specification

Bore size(mm)		125	160	200	250
Acting type		Double acting
Fluid		Air(to be filtered by 40μm filter element)
Mounting type	SC	Basic FA FB CA CB LB TC TCM1
	SCD,SCJ	Basic FA LB TC TCM2
Operating pressure		0.1~1.0MPa(15~145psi)(1.0~10.0bar)
Proof pressure		1.5MPa(215psi)(15bar)
Temperature		-20~80
Speed range		30~800
Stroke tolerance		0~250(+1.0~0);251~1000(+1.0~0); 1001~1500(+1.8~0)

Cushion type		Variable cushion
Adjustable cushion stroke		28	29	33	40
Port size Note1)		1/2"	3/4"		1"

Note1) PT thread,NPT thread and G thread are available.

Strokes

Bore size (mm)	Standard stroke(mm)	Max.std stroke	Max. stroke

125	25,50,75,80,100,125,150,160,175,200,250,300, 350,400,450,500,600,700,800,900,1000	1500	2000

160	25,50,75,80,100,125,150,160,175,200,250,300, 350,400,450,500,600,700,800,900,1000	1500	2000

200	25,50,75,80,100,125,150,160,175,200,250,300, 350,400,450,500,600,700,800,900,1000	1500	2000

250	25,50,75,80,100,125,150,160,175,200,250,300, 350,400,450,500,600,700,800,900,1000	1500	2000
