MB Series Standard Cylinder
MB

MB Series Standard Cylinder

MB Series Standard Cylinder is listed in the pneumatic cylinders section of the Betre catalogue under the Standard Cylinder series. It is manufactured by YUEQING BETRE AUTOMATION CO., LTD. in Yueqing, Zhejiang, and supplied to automation machine builders and distributors in China and export markets.

Category
Pneumatic Cylinders
Series
Standard Cylinder
Manufacturer
YUEQING BETRE AUTOMATION CO., LTD.
Made In
Yueqing, Zhejiang, China
Production Since
2002
Request A Quote Talk To An Engineer Request A Sample

Specifications And Dimensions

The tables and drawings below are reproduced from the Betre product catalogue for this model.

Air Cylinder: Standard Type Series MB


Specification


Bore size (mm) 32 40 50 63 80 100 125
Action Double acting, Single rod
Fluid Air
Proof pressure 1.5 MPa
Maximum operating pressure 1.0 MPa
Minimum operating pressure 0.05 MPa
Ambient and fluid temperature Without auto switch: –10 to 70°C
With auto switch: –10 to 60°C   (No freezing)
Lubricant Not required (Non-lube)
Piston speed 50 to 1000 mm/s
Stroke length tolerance Up to 250: (+1.0~0),251 to 1000: (+1.4~0), 1001 to 1500: (+1.8~0), 1501 to 2000: (+2.2~0)
Cushion Air cushion or Rubber bumper
Port size (Rc) 1/8 1/4 3/8 1/2
Mounting Basic

Strokes


Bore size Standard stroke Max.  manufacturable stroke
Stroke range ① Stroke range ②
32 25, 50, 75, 100, 125, 150, 175, 200, 250, 300, 350, 400, 450, 500 Up to 1000 Up to 2700
40 25, 50, 75, 100, 125, 150, 175, 200, 250, 300, 350, 400, 450, 500 Up to 1800
50 25, 50, 75, 100, 125, 150, 175, 200, 250, 300, 350, 400, 450, 500, 600
63 25, 50, 75, 100, 125, 150, 175, 200, 250, 300, 350, 400, 450, 500, 600
80 25, 50, 75, 100, 125, 150, 175, 200, 250, 300, 350, 400, 450, 500, 600, 700, 800
100 25, 50, 75, 100, 125, 150, 175, 200, 250, 300, 350, 400, 450, 500, 600, 700, 800
125 25, 50, 75, 100, 125, 150, 175, 200, 250, 300, 350, 400, 450, 500, 600, 700, 800, 900, 1000 Up to 2000
Note 1) Manufacture of intermediate strokes is possible. (Spacers are not used.) Note 2) Applicable strokes should be confirmed according to the usage. For details, refer to “Air Cylinders Model Selection” on front matter pages of the Best Pneumatics No. 2 or the WEB catalog. In addition, the products that exceed the stroke range ① might not be able to fulfill the specifications due to the deflection etc. Note 3) Please consult with SMC for manufacturability and the part numbers when exceeding the stroke range ②. Note 4) The stroke range with rod boot is up to 1000 mm. Please consult with SMC when exceeding 1000 mm strokes.

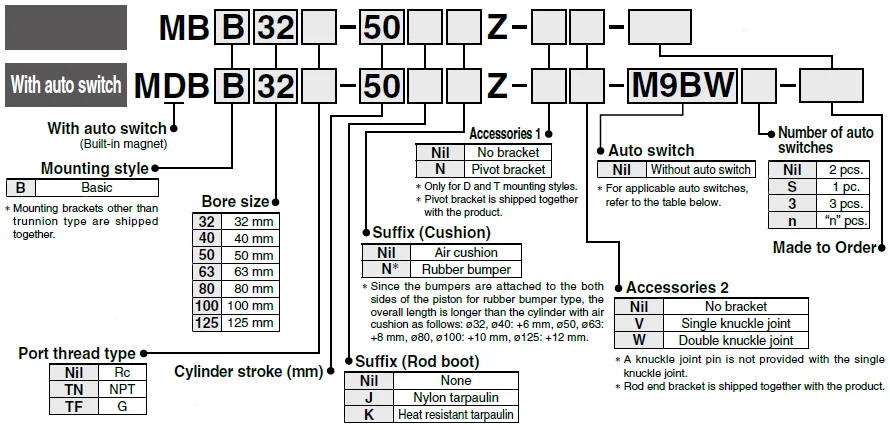

Ordering Information

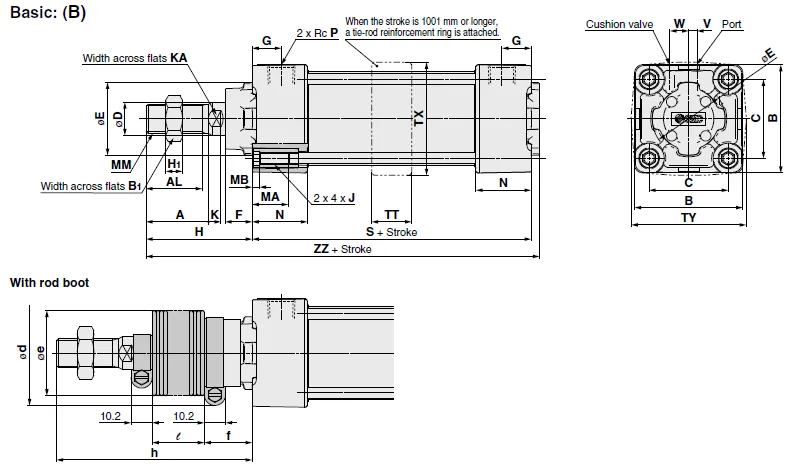

Dimension drawing

Dimension


Dimension drawing

Basic Type


Bore size A AL B B1 C D E F G H H1 J K KA MA MB MM N P S TT TX TV V W ZZ
32 22 19.5 46 17 32.5 12 30 13 13 47 6 M6x1 6 10 16 4 M10x1.25 27 1/8 84 - - - 4 6.5 135
40 30 27 52 22 38 16 35 13 14 51 8 M6x1 6 14 16 4 M14x1.5 27 1/4 84 22 55 28 4 9 139
50 35 32 65 27 46.5 20 40 14 15.5 58 11 M8x1.25 7 18 16 5 M18x1.5 31.5 1/4 94 22 68 71 5 10.5 156
63 35 32 75 27 56.5 20 45 14 16.5 58 11 M8x1.25 7 18 16 5 M18x1.5 31.5 3/8 94 28 81 81 9 12 156
80 40 37 95 32 72 25 45 20 19 72 13 M10x1.5 10 22 16 5 M22x1.5 38 3/8 114 34 102 102 11.5 14 190
100 40 37 114 41 89 30 55 20 19 72 16 M10x1.5 10 26 16 5 M26x1.5 38 1/2 114 40 124 124 17 15 190
125 54 50 136 41 110 32 60 27 19 97 16 M12x1.75 13 27 20 6 M27x2 38 1/2 120 50 148 148 17 15 223

With Rod Boot


Bore size d e f l h
1 to 50 51 to 100 101 to 150 151 to 200 201 to 300 301 to 400 401 to 500 501 to 600 601 to 700 701 to 800 801 to 900 901 to 1000 1 to 50 51 to 100 101 to 150 151 to 200 201 to 300 301 to 400 401 to 500 501 to 600 601 to 700 701 to 800 801 to 900 901 to 1000
32 54 36 23 12.5 25 37.5 50 75 100 125 - - - - - 73 86 98 111 136 161 186 - - - - -
40 56 41 23 12.5 25 37.5 50 75 100 125 - - - - - 81 94 106 119 144 169 194 - - - - -
50 64 54 25 12.5 25 37.5 50 75 100 125 150 - - - - 89 102 114 127 152 177 202 227 - - - -
63 64 54 25 12.5 25 37.5 50 75 100 125 150 - - - - 89 102 114 127 152 177 202 227 - - - -
80 68 56 29 12.5 25 37.5 50 75 100 125 150 175 200 - - 101 114 126 139 164 189 214 239 264 289 - -
100 76 61 29 12.5 25 37.5 50 75 100 125 150 175 200 - - 101 114 126 139 164 189 214 239 264 289 - -
125 82 75 27 10 20 30 40 60 80 100 120 140 160 180 200 120 130 140 150 170 190 210 230 250 270 290 310
