DNC Series Standard Cylinder is listed in the pneumatic cylinders section of the Betre catalogue under the Standard Cylinder series. It is manufactured by YUEQING BETRE AUTOMATION CO., LTD. in Yueqing, Zhejiang, and supplied to automation machine builders and distributors in China and export markets.

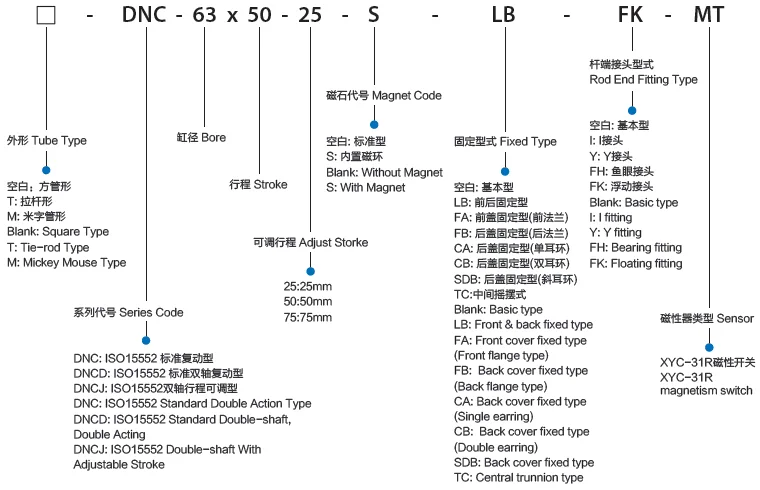

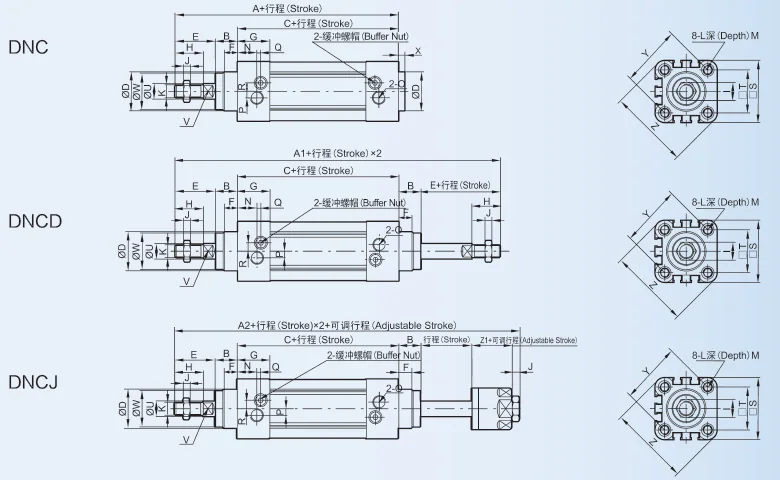

The tables and drawings below are reproduced from the Betre product catalogue for this model.
| Bore Size (mm) | 32 | 40 | 50 | 63 | 80 | 100 | 125 | ||
| Motion Pattern | Double Action | ||||||||
| Working Medium | Fitered Air | ||||||||
| Compression Pressure | 1.5MPa | ||||||||
| Max. Operating Pressure | 1.0MPa | ||||||||
| Min. Operating Pressure | 0.1MPa | ||||||||
| Buffer | Air Buffer(Standard) | ||||||||
| Condition Temperature | -5~70℃ | ||||||||
| Operating Speed | 50~800mm/s | ||||||||
| Port Size | G1/8″ | G1/4″ | G3/8" | G1/2" | |||||
| Bore Size | Standard Stroke | Buffer Stroke | Stroke Range | |||
| 32 | 25,50,80,100,125, 160,200,250,320, 400,500 | 20 | 10~2000 | |||
| 40 | ||||||
| 50 | 22 | |||||
| 63 | ||||||
| 80 | 32 | |||||
| 100 | ||||||
| 125 | 35 | |||||
|
Bore Size (mm) |
A | A1 | A2 | B | C | D | E | F | G | H | I | J | K | L |
| 32 | 142 | 190 | 185 | 16 | 94 | 30 | 33 | 10 | 25 | 22 | 17 | 6 | M10x1.25 | M6 |
| 40 | 159 | 213 | 207 | 20 | 105 | 35 | 34 | 10 | 29.5 | 24 | 17 | 7 | M12x1.25 | M6 |
| 50 | 175 | 244 | 233 | 27 | 106 | 40 | 42.5 | 10 | 32 | 32 | 23 | 8 | M16x1.5 | M8 |
| 63 | 190 | 258 | 247 | 26 | 122 | 45 | 42 | 10 | 36 | 32 | 23 | 8 | M16x1.5 | M8 |
| 80 | 214 | 301 | 288 | 35 | 127 | 45 | 53 | 10 | 37 | 40 | 26 | 10 | M20x1.5 | M10 |
| 100 | 229 | 321 | 308 | 40 | 137 | 55 | 52 | 10 | 39 | 40 | 26 | 10 | M20x1.5 | M10 |
| 125 | 277 | 394 | 378 | 46 | 160 | 60 | 71 | 10 | 43.5 | 54 | 40 | 10 | M27x2 | M12 |
|
Bore Size (mm) |
M | N | O | P | Q | S | T | U | V | W | X | Y | Z | Z1 |
| 32 | 12 | 15 | G1/8 | 5 | 3 | 6.5 | 32.5 | 12 | 10 | 28 | 4 | 46 | 58.7 | 21 |
| 40 | 12 | 17.5 | G1/4 | 7 | 3 | 7 | 38 | 16 | 13 | 33 | 4 | 53.7 | 68 | 21 |
| 50 | 12 | 20 | G1/4 | 7 | 3 | 9 | 46.5 | 20 | 17 | 38 | 4 | 65.8 | 84.5 | 23 |
| 63 | 12 | 22 | G3/8 | 8 | 5 | 9 | 56.5 | 20 | 17 | 38 | 4 | 79.9 | 99.6 | 23 |
| 80 | 15 | 23 | G3/8 | 10 | 5 | 12 | 72 | 25 | 22 | 43.5 | 5 | 101.8 | 123.8 | 29 |
| 100 | 15 | 26 | G1/2 | 10 | 5 | 14 | 89 | 25 | 22 | 47 | 6 | 125.9 | 148.9 | 29 |
| 125 | 20 | 29 | G1/2 | 10 | 5 | 14 | 110 | 32 | 27 | 53 | 7 | 156.9 | 179.6 | 40.5 |
