MXS Series Air Slide Table is listed in the air slide tables section of the Betre catalogue under the MX Series series. It is manufactured by YUEQING BETRE AUTOMATION CO., LTD. in Yueqing, Zhejiang, and supplied to automation machine builders and distributors in China and export markets.

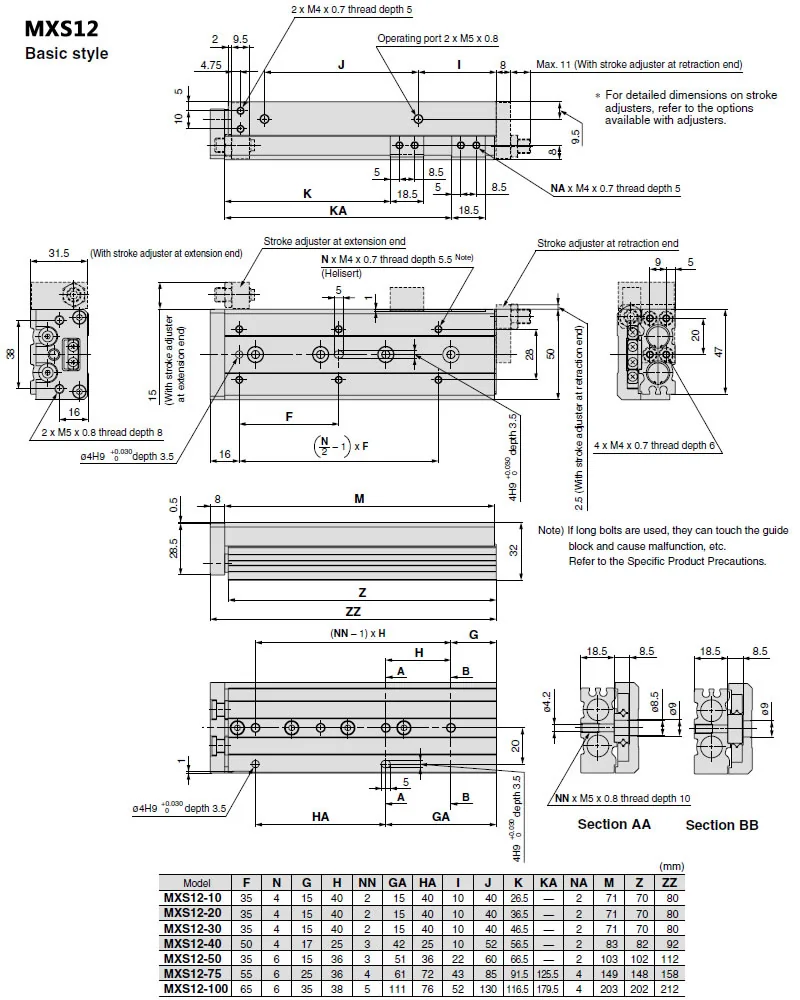

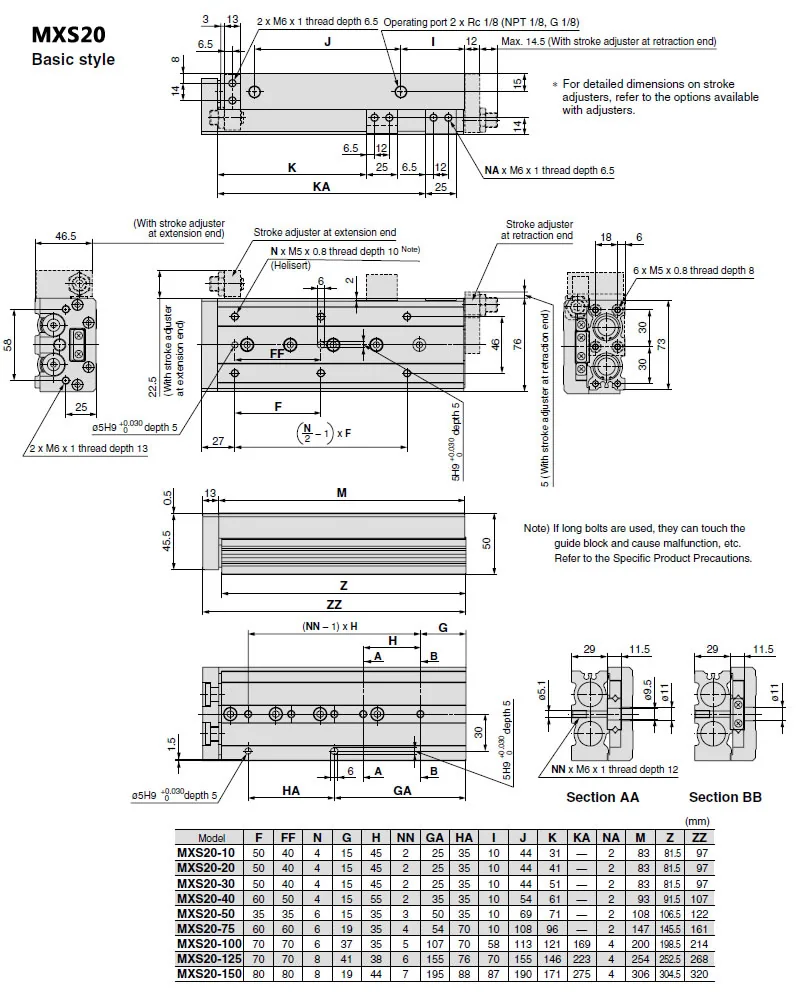

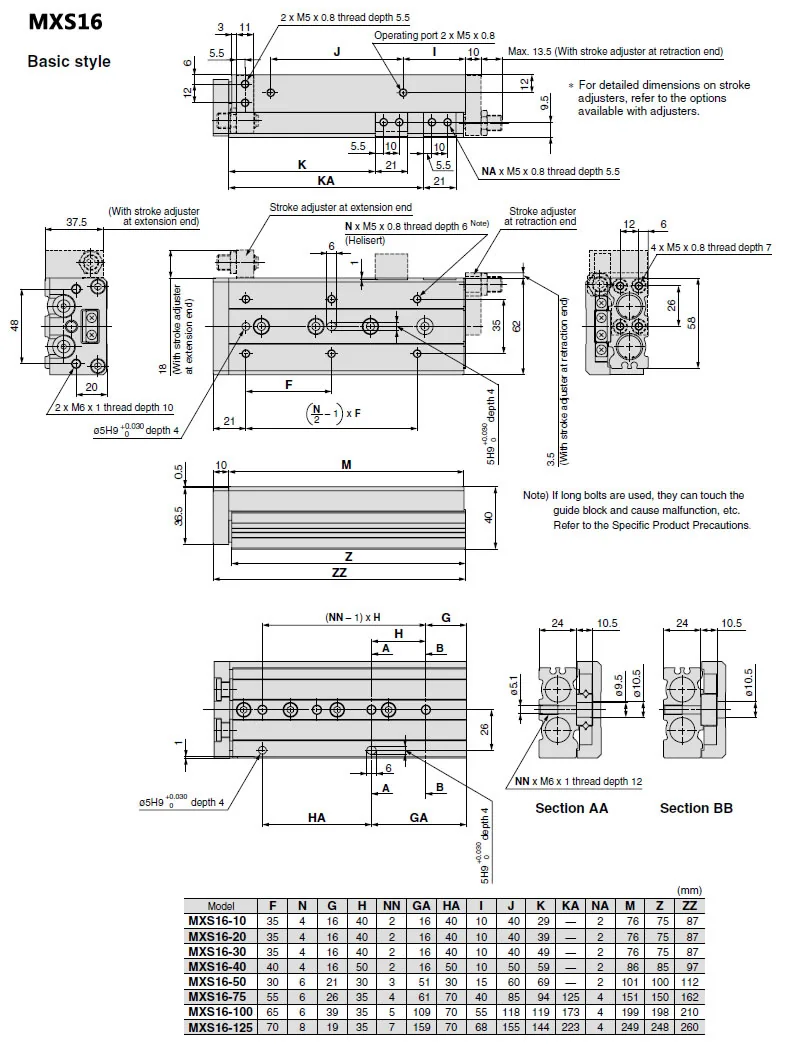

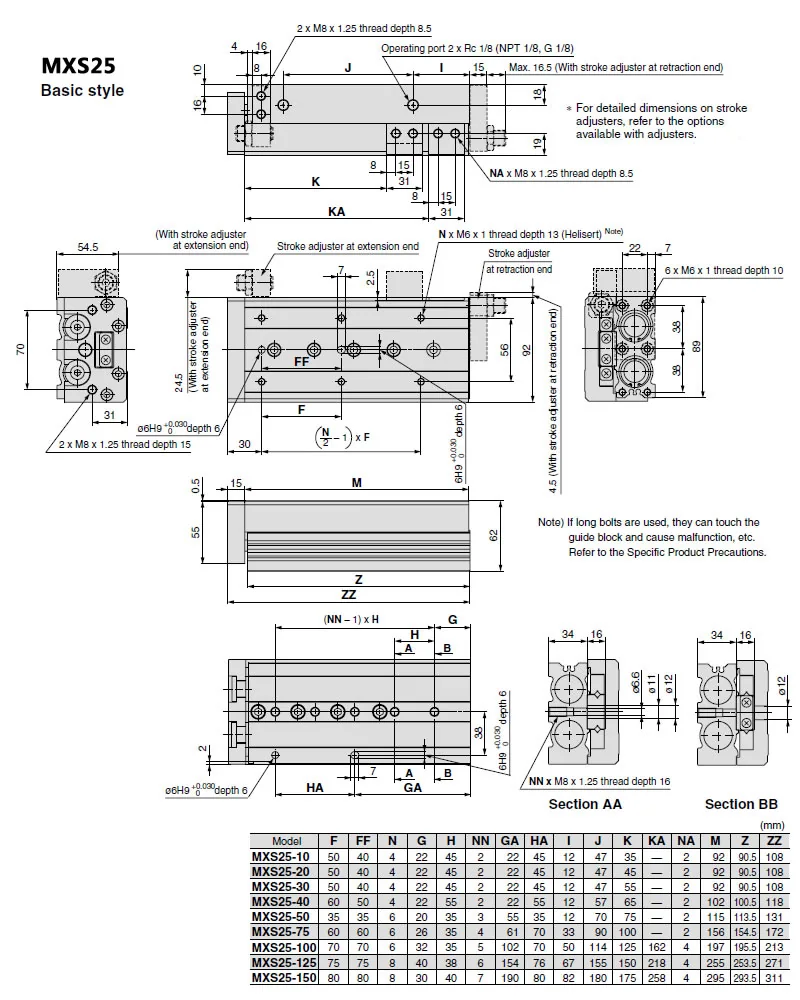

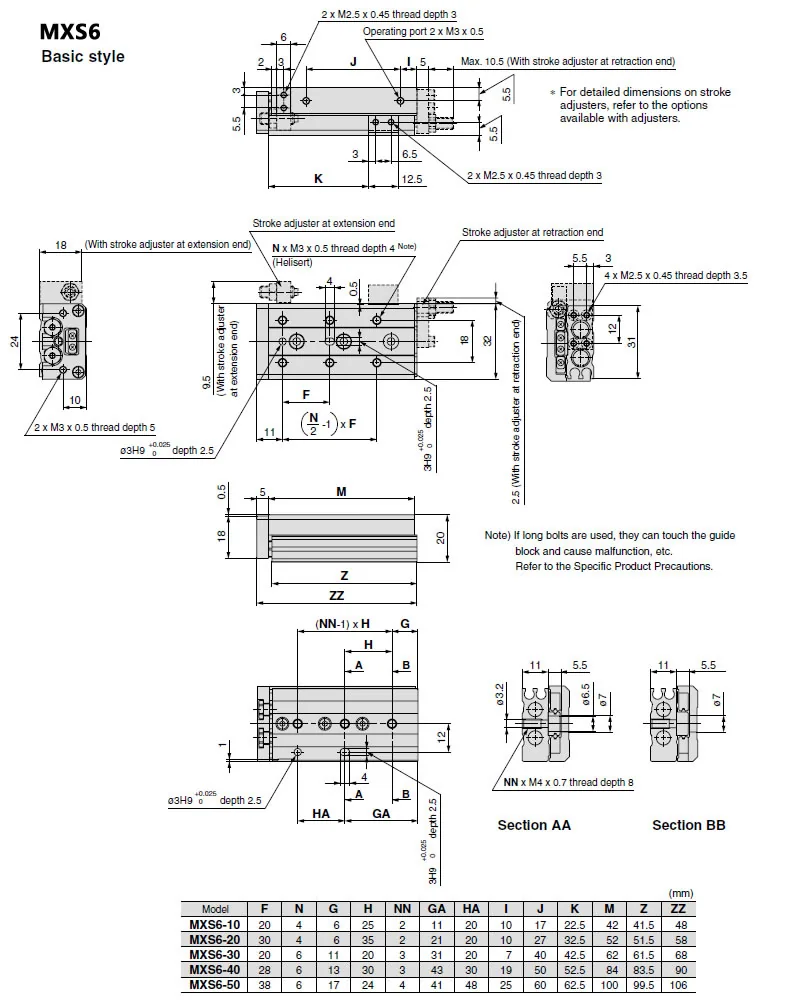

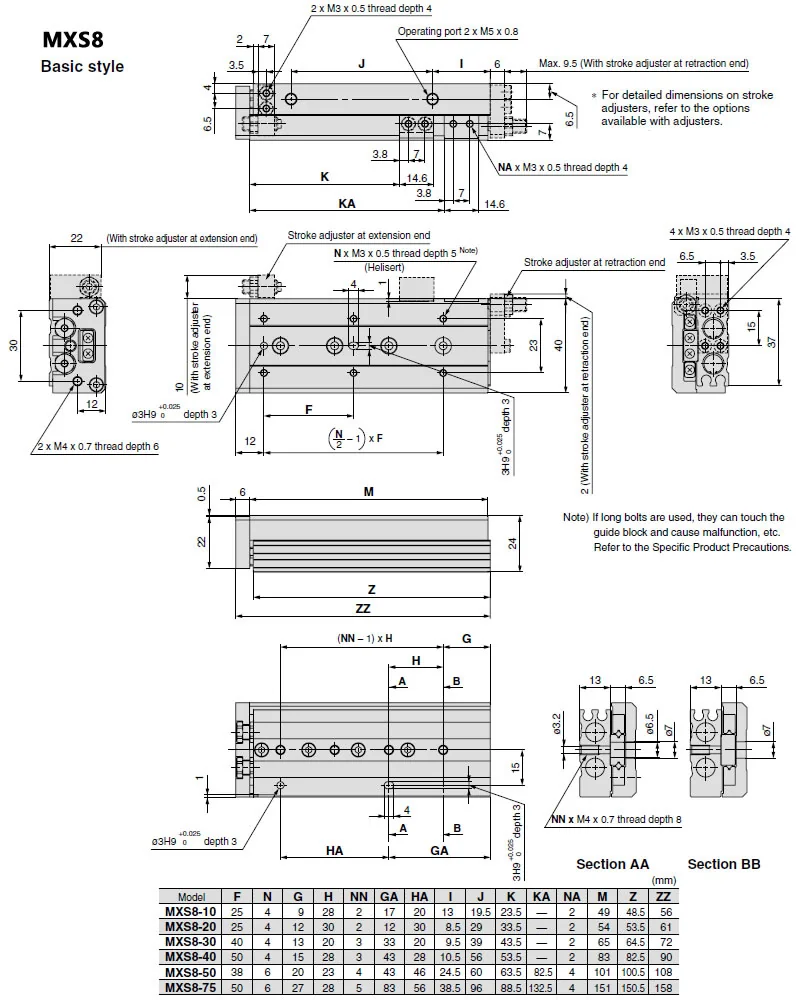

The tables and drawings below are reproduced from the Betre product catalogue for this model.
| Bore size (mm) | 6 | 8 | 12 | 16 | 20 | 25 | ||
| Piping port size | M3 x 0.5 | M5 x 0.8 | Rc 1/8, NPT 1/8, G 1/8 | |||||
| Fluid | Air | |||||||
| Action | Double acting | |||||||
| Operating pressure | 0.15 to 0.7 MPa | |||||||
| Proof pressure | 1.05 MPa | |||||||
| Ambient and fluid temperature | -10 to 60°C | |||||||
| Piston speed | 50 to 500 mm/s | |||||||
| Cushion |
Rubber bumper (Standard, With stroke adjuster) Shock absorber (Optional) |
|||||||
| Lubrication | Non-lube | |||||||
| Auto switch (Optional) |
Reed auto switch (2-wire, 3-wire) Solid state auto switch (2-wire, 3-wire) 2-color indication solid state auto switch (2-wire, 3-wire) |
|||||||
| Stroke length tolerance | +1~0 mm | |||||||
