MXQ Series Air Slide Table

MXQ Series Air Slide Table is listed in the air slide tables section of the Betre catalogue under the MX Series series. It is manufactured by YUEQING BETRE AUTOMATION CO., LTD. in Yueqing, Zhejiang, and supplied to automation machine builders and distributors in China and export markets.

Category: Air Slide Tables
Series: MX Series
Manufacturer: YUEQING BETRE AUTOMATION CO., LTD.
Made In: Yueqing, Zhejiang, China
Production Since: 2002

Request A Quote Talk To An Engineer Request A Sample

Specifications And Dimensions

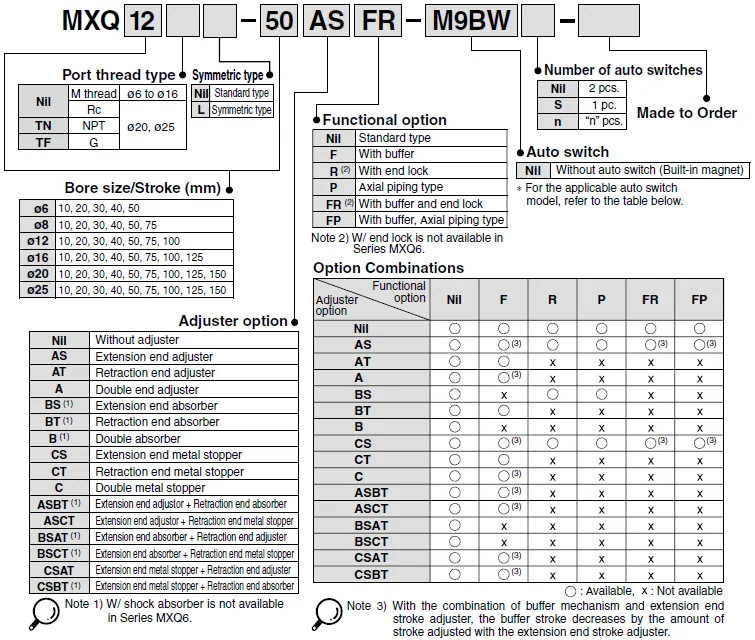

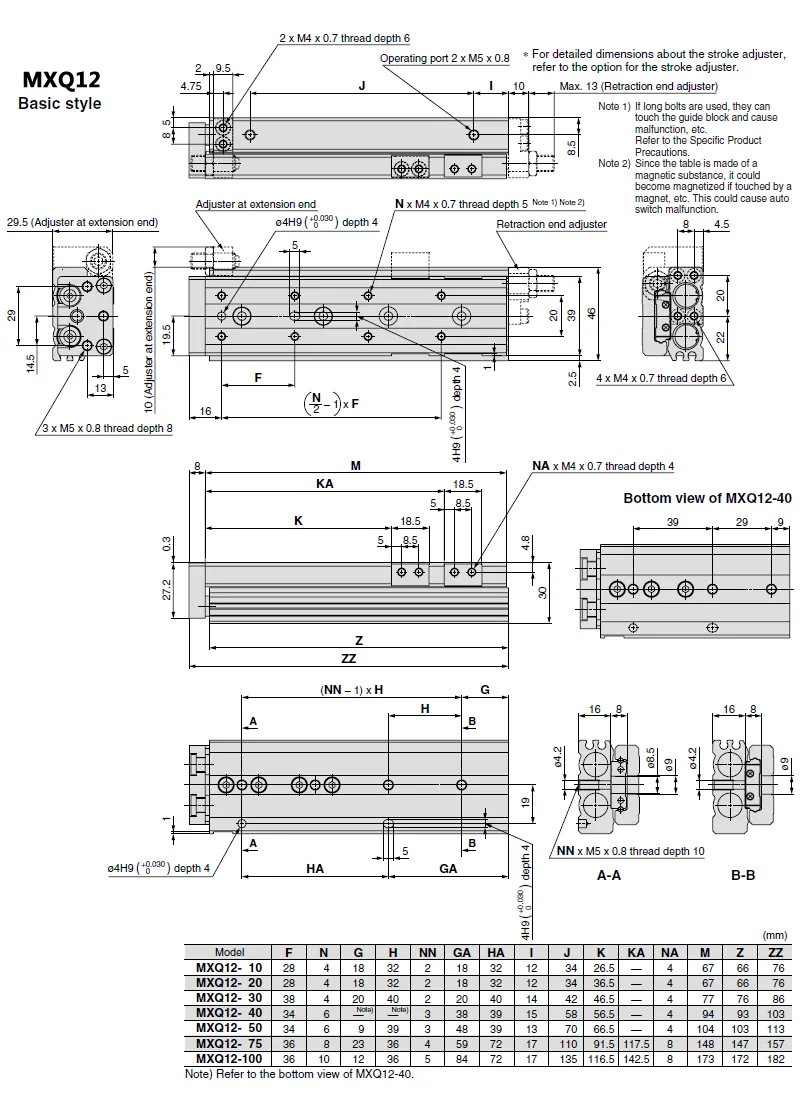

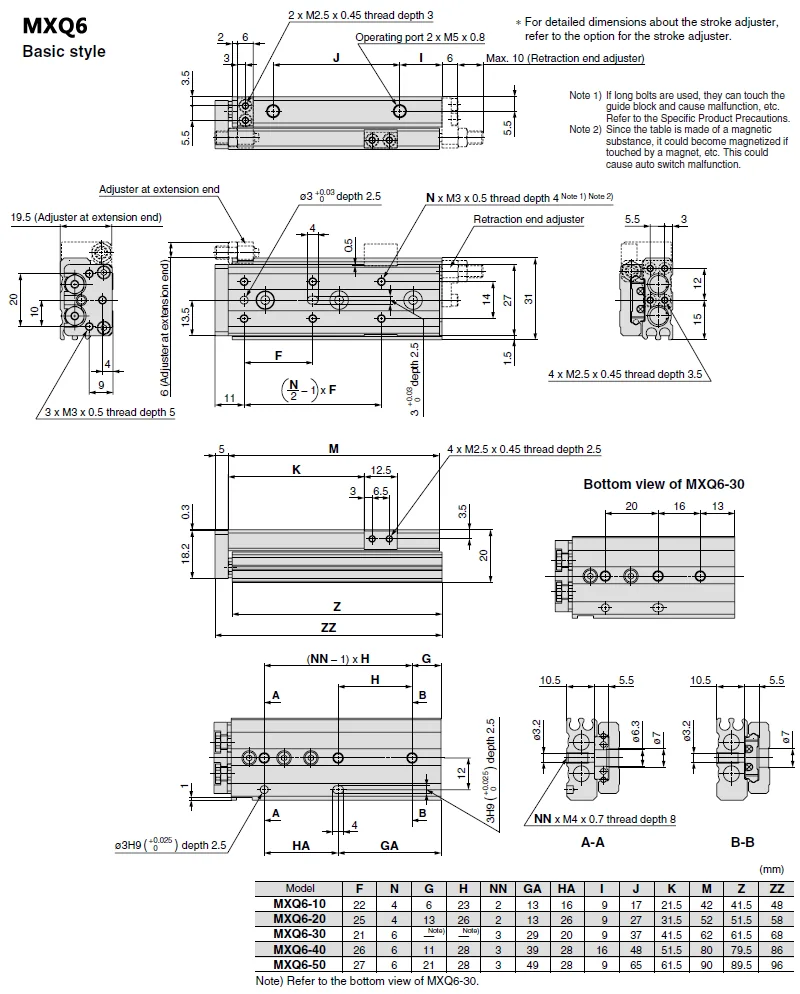

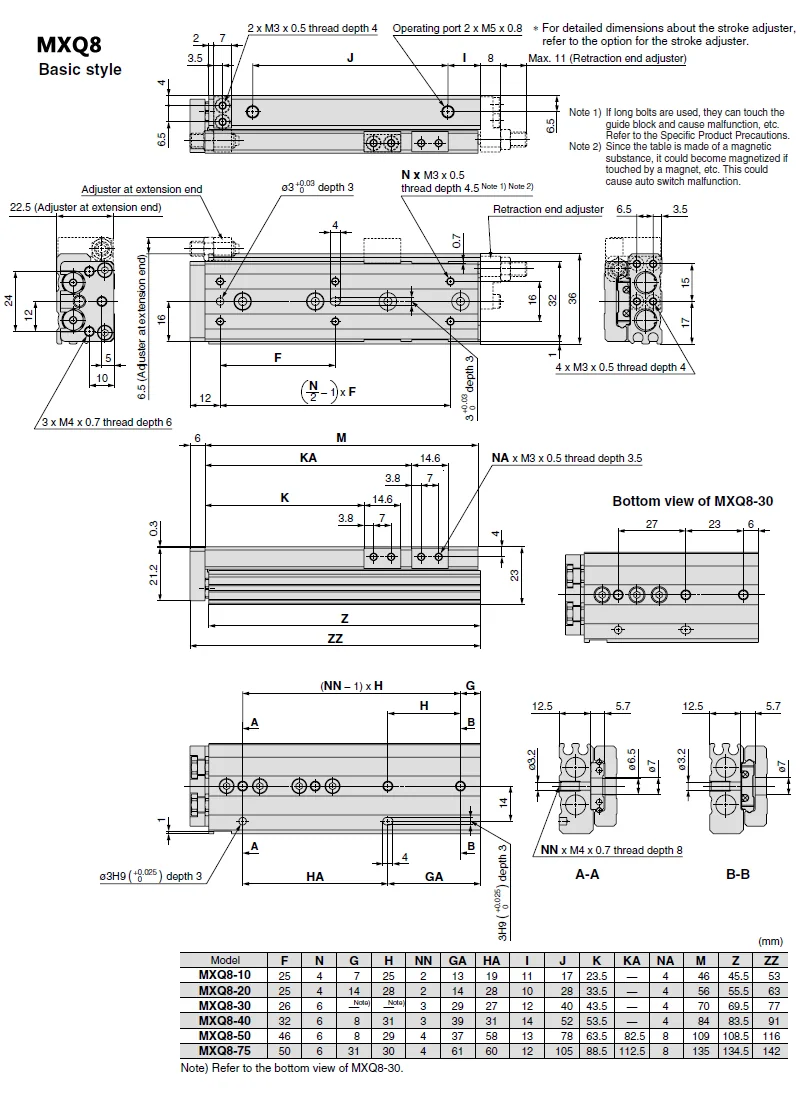

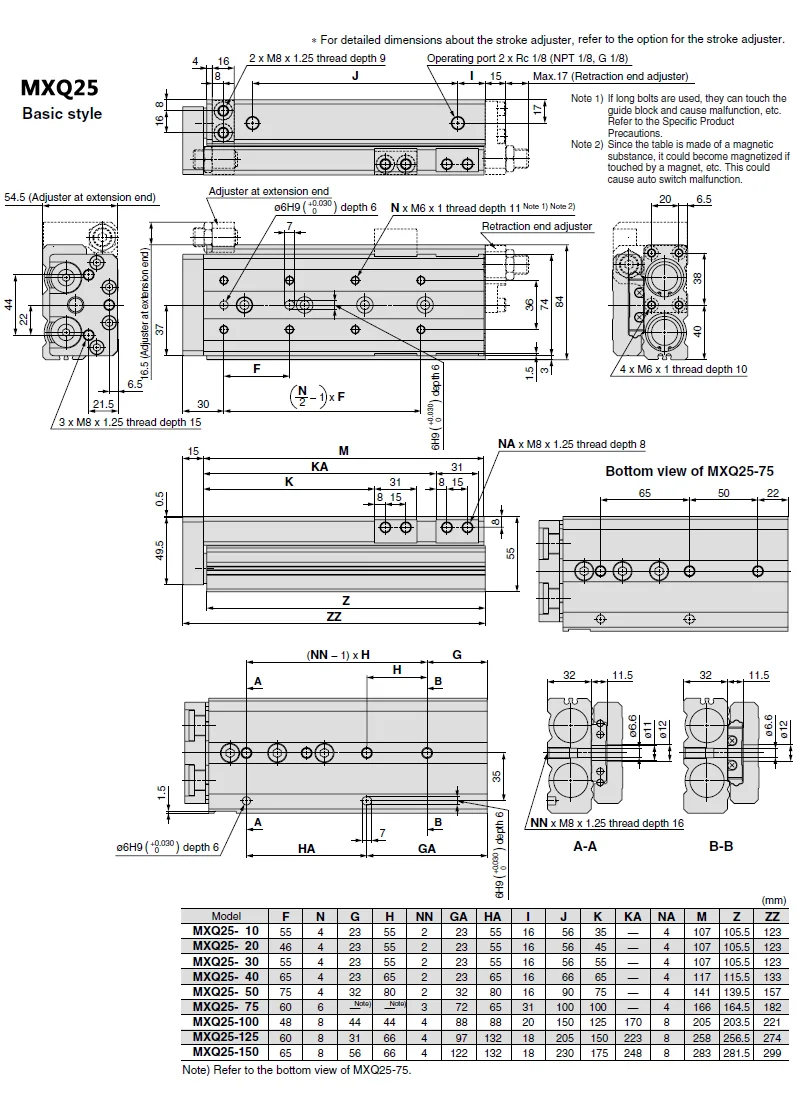

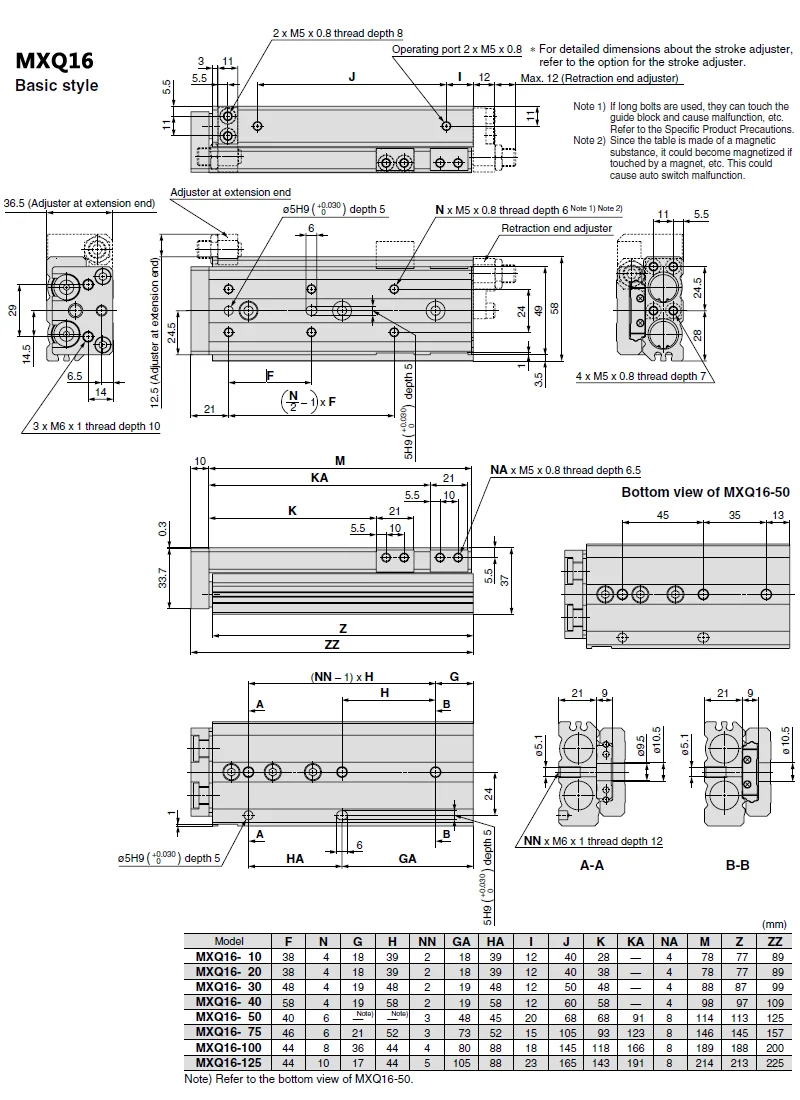

The tables and drawings below are reproduced from the Betre product catalogue for this model.

Air Slide Table Series MXQ

Specification

Bore size (mm)	6	8	12	16	20	25
Piping port size	M5 x 0.8				Rc 1/8, NPT 1/8, G 1/8
Fluid	Air
Action	Double acting
Operating pressure	0.15 to 0.7 MPa
Proof pressure	1.05 MPa
Ambient and fluid temperature	-10 to 60°C
Piston speed	50 to 500 mm/s (Adjuster option/Metal stopper: 50 to 200 mm/s)

Cushion	Rubber bumper(Standard, Adjuster option/Rubber stopper) Shock absorber (Adjuster option/Shock absorber) None (Adjuster option/Metal stopper)


Lubrication	Non-lube
Auto switch	Reed auto switch (2-wire, 3-wire) Solid state auto switch (2-wire, 3-wire) 2-color indication solid state auto switch (2-wire, 3-wire)


Stroke length tolerance	+1~0mm

Strokes

Model	Standard stroke (mm)
MXQ 6	10, 20, 30, 40, 50
MXQ 8	10, 20, 30, 40, 50, 75
MXQ12	10, 20, 30, 40, 50, 75, 100
MXQ16	10, 20, 30, 40, 50, 75, 100, 125
MXQ20	10, 20, 30, 40, 50, 75, 100, 125, 150
MXQ25	10, 20, 30, 40, 50, 75, 100, 125, 150
