MXH Series Compact Slide is listed in the air slide tables section of the Betre catalogue under the MX Series series. It is manufactured by YUEQING BETRE AUTOMATION CO., LTD. in Yueqing, Zhejiang, and supplied to automation machine builders and distributors in China and export markets.

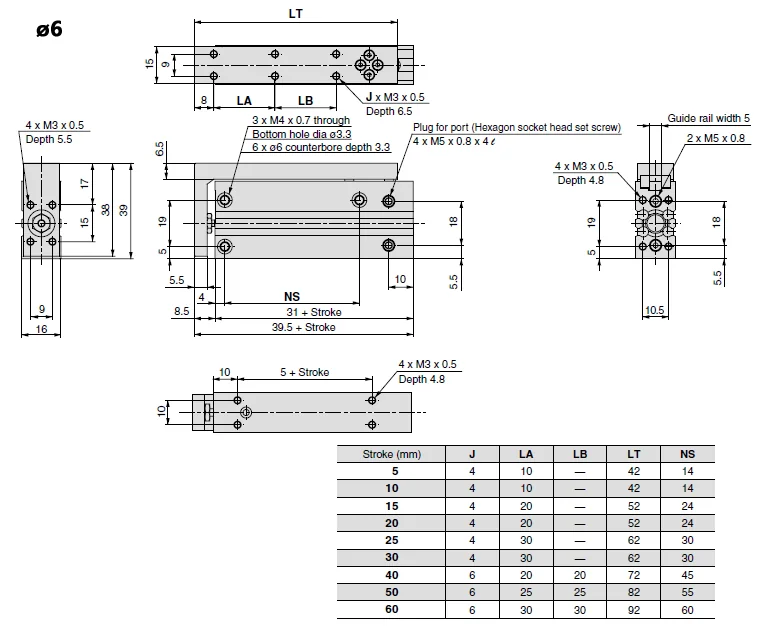

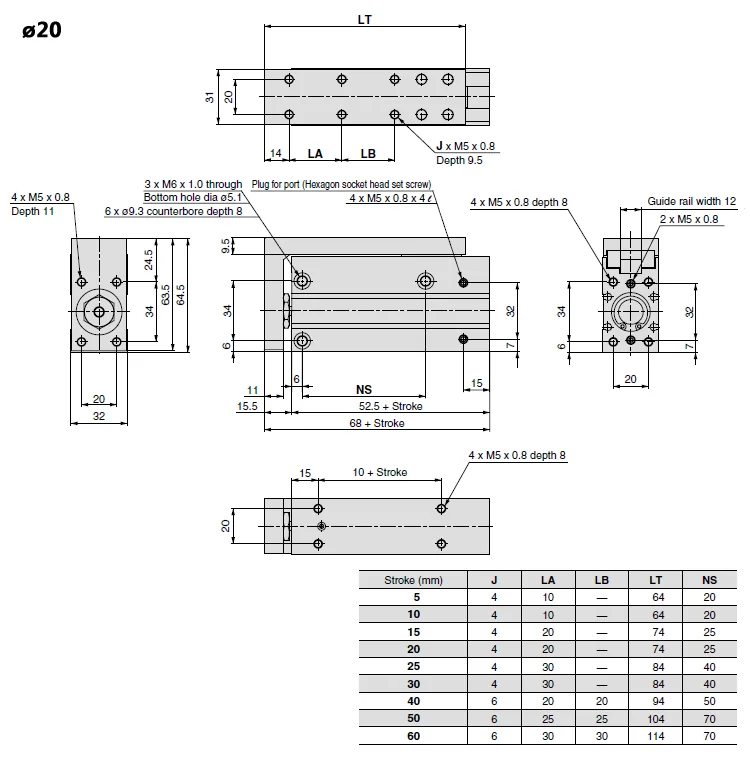

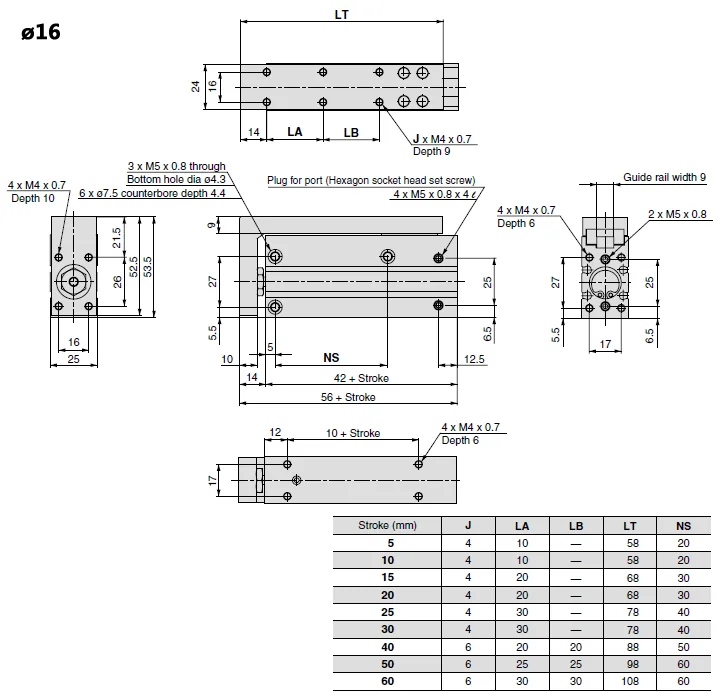

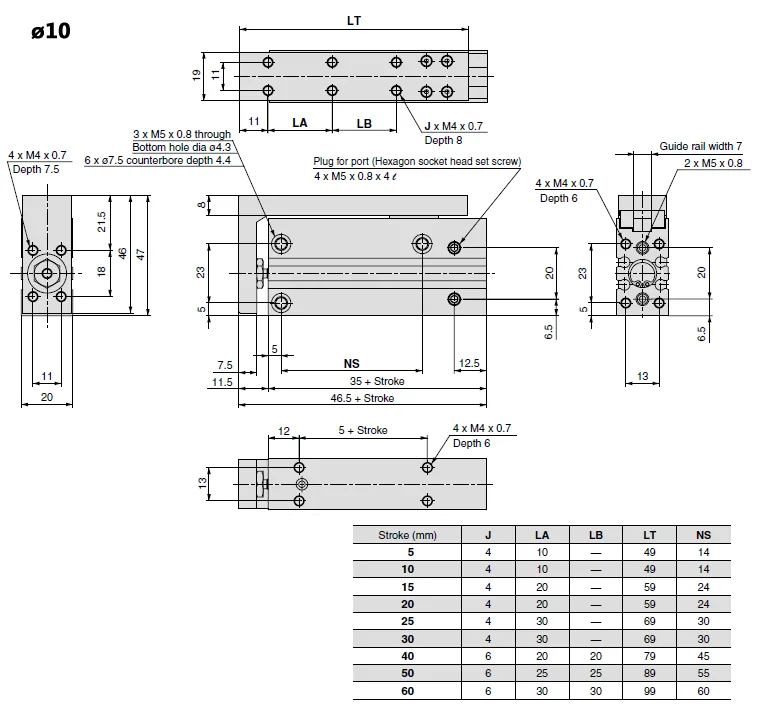

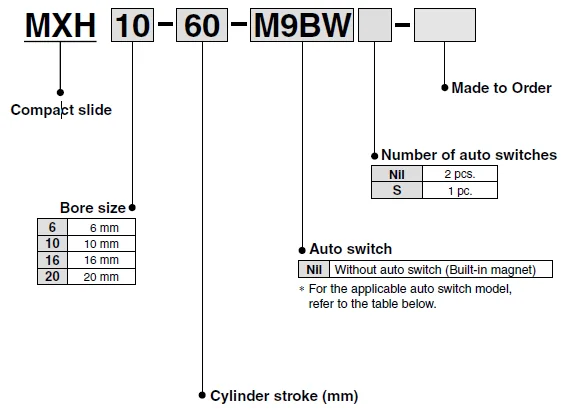

The tables and drawings below are reproduced from the Betre product catalogue for this model.
| Bore size (mm) | 6 | 10 | 16 | 20 | ||
| Guide rail width (mm) | 5 | 7 | 9 | 12 | ||
| Fluid | Air | |||||
| Action | Double acting | |||||
| Piping port size | M5 x 0.8 | |||||
| Minimum operating pressure | 0.15 MPa | 0.06 MPa | 0.05 MPa | |||
| Maximum operating pressure | 0.7 MPa | |||||
| Proof pressure | 1.05 MPa | |||||
| Ambient and fluid temperature |
Without auto switch: –10 to 70°C With auto switch: –10 to 60°C (No freezing) |
|||||
| Piston speed | 50 to 500 mm/s | |||||
| Allowable kinetic energy (J) | 0.0125 | 0.025 | 0.05 | 0.1 | ||
| Lubrication | Non-lube | |||||
| Cushion | Rubber bumper on both ends | |||||
| Stroke length tolerance | +1.0~0 | |||||
| Bore size (mm) | Standard stroke (mm) | ||||
| 6,10,16,20 | 5, 10, 15, 20, 25, 30, 40, 50, 60 | ||||
