CUKW Series Free Mount Cylinder is listed in the pneumatic cylinders section of the Betre catalogue under the Free Mount Cylinder series. It is manufactured by YUEQING BETRE AUTOMATION CO., LTD. in Yueqing, Zhejiang, and supplied to automation machine builders and distributors in China and export markets.

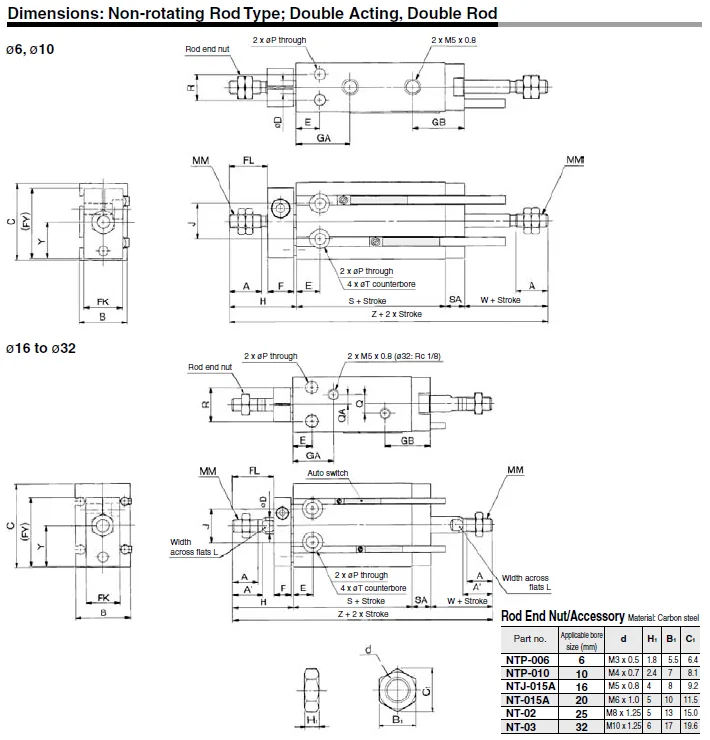

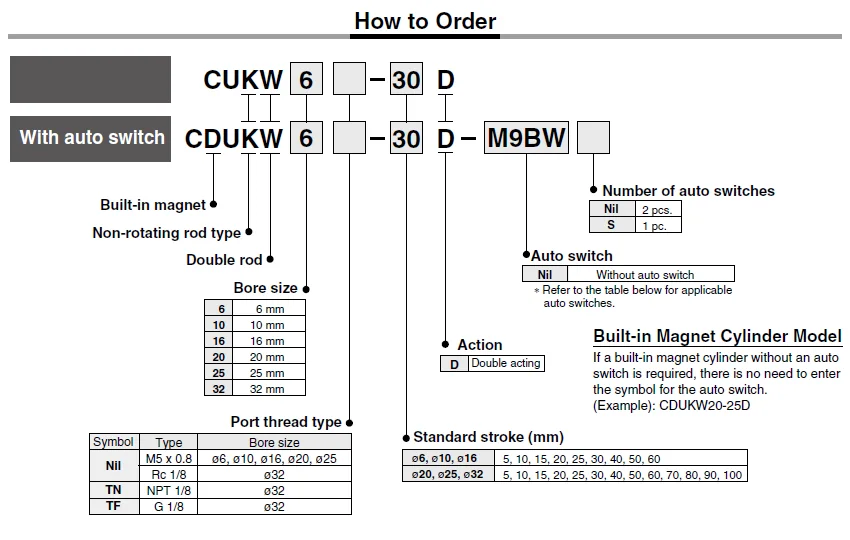

The tables and drawings below are reproduced from the Betre product catalogue for this model.
| Bore size(mm) | 6 | 10 | 16 | 20 | 25 | 32 | ||
| Fluid | Air | |||||||
| Proof pressure | 1.05MPa | |||||||
| Max.operating pressure | 0.7MPa | |||||||
| Min.operating pressure | 0.15MPa | 0.10MPa | 0.08MPa | |||||
| Ambient and fluid temperature |
Without auto switch: –10 to 70°C (No freezing) With auto switch: –10 to 60°C (No freezing) |
|||||||
| Lubrication | Non-lube | |||||||
| Piston speed | 50 to 500 mm/s | |||||||
| Cushion | Rubber bumper | |||||||
| Rod end thread | Male thread | |||||||
| Stroke length tolerance | +1.0/0 mm | |||||||
| Rod non-rotating accuracy Note) | ±0.8° | ±0.5° | ||||||
| Bore size(mm) | Standard stroke (mm) | |||||
| 6, 10, 16 | 5, 10, 15, 20, 25, 30, 40, 50, 60 | |||||
| 20, 25, 32 | 5, 10, 15, 20, 25, 30, 40, 50, 60, 70, 80, 90, 100 | |||||
| Bore size (mm) | A | A' | B | C | D | E | F | FL | FK | FY | GA | GB | H | J |
| 6 | 7 | - | 13 | 22 | 3 | 7 | 8 | 9 | 11 | 20.5 | 15 | 16 | 18 | 10 |
| 10 | 10 | - | 15 | 24 | 4 | 7 | 8 | 12 | 12 | 22 | 16.5 | 16 | 21 | 11 |
| 16 | 11 | 12.5 | 20 | 32 | 6 | 7 | 8 | 17 | 13 | 28 |
16.5 Note) |
19 | 26 | 14 |
| 20 | 12 | 14 | 26 | 40 | 8 | 9 | 8 | 20 | 16 | 33 | 19 | 21.5 | 29 | 16 |
| 25 | 15.5 | 18 | 32 | 50 | 10 | 10 | 10 | 22 | 20 | 43.5 | 21.5 | 22 | 33 | 20 |
| 32 | 19.5 | 22 | 40 | 62 | 12 | 11 | 12 | 29 | 24 | 51.5 | 23 | 22.5 | 42 | 24 |
