CUK Series Free Mount Cylinder
CUK

CUK Series Free Mount Cylinder

CUK Series Free Mount Cylinder is listed in the pneumatic cylinders section of the Betre catalogue under the Free Mount Cylinder series. It is manufactured by YUEQING BETRE AUTOMATION CO., LTD. in Yueqing, Zhejiang, and supplied to automation machine builders and distributors in China and export markets.

Category
Pneumatic Cylinders
Series
Free Mount Cylinder
Manufacturer
YUEQING BETRE AUTOMATION CO., LTD.
Made In
Yueqing, Zhejiang, China
Production Since
2002
Request A Quote Talk To An Engineer Request A Sample

Specifications And Dimensions

The tables and drawings below are reproduced from the Betre product catalogue for this model.

Free Mount Cylinder Series CUK,CDUK

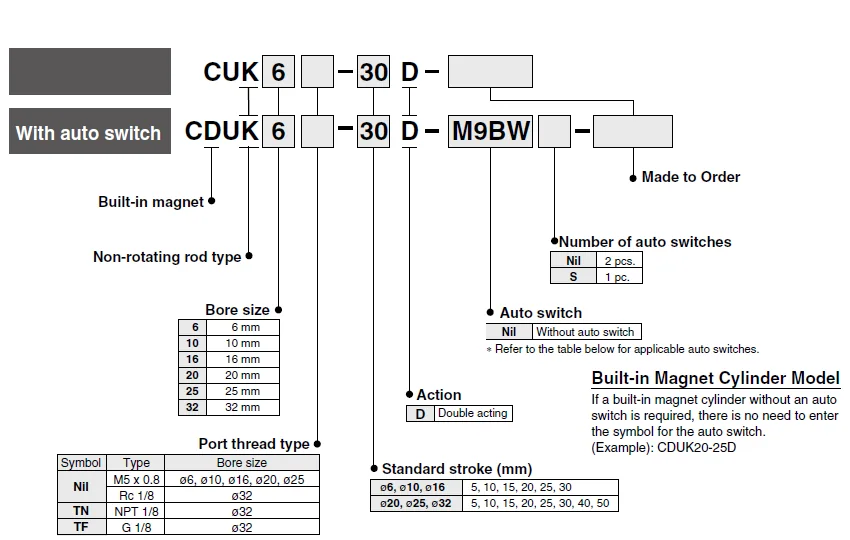

Ordering Information


Dimension drawing

Specification


Bore size(mm) 6 10 16 20 25 32
Fluid Air
Proof pressure 1.05MPa
Max.operating pressure 0.7MPa
Min.operating pressure 0.15MPa 0.10MPa 0.08MPa
Ambient and fluid temperature Without auto switch: –10 to 70°C (No freezing)
With auto switch: –10 to 60°C (No freezing)
Lubrication Non-lube
Piston speed 50 to 500 mm/s
Cushion Rubber bumper
Rod end thread Male thread
Stroke length tolerance +1.0/0 mm
Rod non-rotating accuracy Note) ±0.8° ±0.5°
Note) No load: Rod at retracted

Strokes


Bore size(mm) Standard stroke (mm)
6, 10, 16 5, 10, 15, 20, 25, 30
20, 25, 32 5, 10, 15, 20, 25, 30, 40, 50

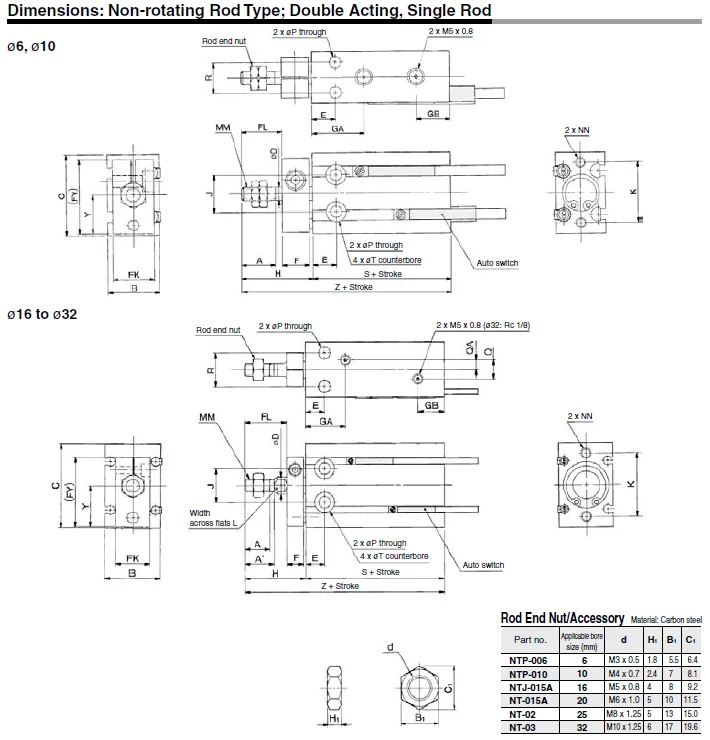

Dimension drawing
Bore size (mm) A A' B C D E F FL FK FY GA GB H J K
6 7 - 13 22 3 7 8 9 11 20.5 15 10 18 10 17
10 10 - 15 24 4 7 8 12 12 22 16.5 10 21 11 18
16 11 12.5 20 32 6 7 8 17 13 28 16.5Note) 11.5 26 14 25
20 12 14 26 40 8 9 8 20 16 33 19 12.5 29 16 30
25 15.5 18 32 50 10 10 10 22 20 43.5 21.5 13 33 20 38
32 19.5 22 40 62 12 11 12 29 24 51.5 23 12.5 42 24 48

Bore size (mm) L MM NN P Q QA R T Without auto switch With auto switch
S Z S Z
6 - M3x0.5 M3x0.5
depth 5		 3.2 - - 7 6 depth 4.8 33 51 33 51
10 - M4x0.7 M3x0.5 depth 5 3.2 - - 9 6 depth 5 36 57 36 57
16 5 M5x0.8 M4x0.7 depth 6 4.5 4 2 12 7.6 depth 6.5 30 56 40 66
20 6 M6x1.0 M5x0.8 depth 8 5.5 9 4.5 16 9.3 depth 8 36 65 46 75
25 8 M8x1.25 M5x0.8 depth 8 5.5 9 4.5 20 9.3 depth 9 40 73 50 83
32 10 M10x1.25 M6x1.0 depth 9 6.6 13.5 4.5 24 11 depth 11.5 42 84 52 94

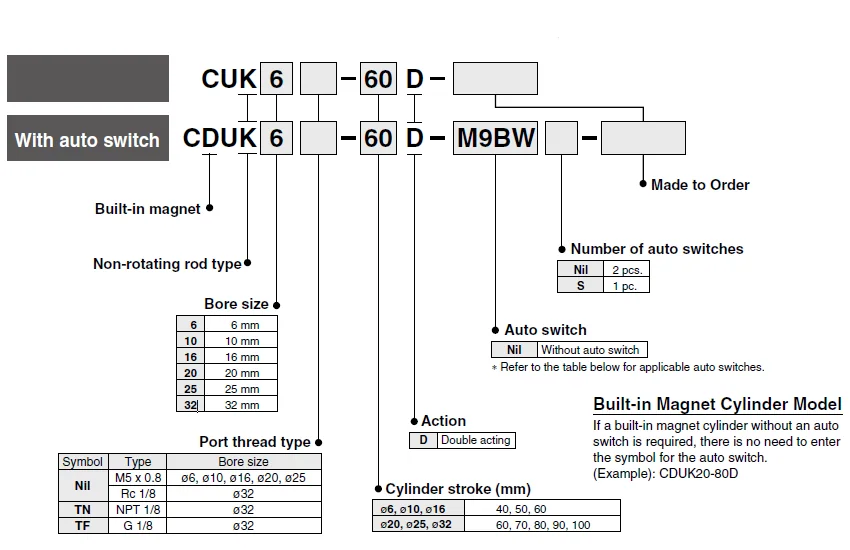

Ordering Information

Dimension drawing

Specification


Bore size(mm) 6 10 16 20 25 32
Fluid Air
Proof pressure 1.05MPa
Max.operating pressure 0.7MPa
Min.operating pressure 0.15MPa 0.10MPa 0.08MPa
Ambient and fluid temperature Without auto switch: –10 to 70°C (No freezing)
With auto switch: –10 to 60°C (No freezing)
Lubrication Non-lube
Piston speed 50 to 500 mm/s
Cushion Rubber bumper
Rod end thread Male thread
Stroke length tolerance +1.0/0 mm

Strokes


Bore size(mm) Standard stroke (mm)
6, 10, 16 40, 50, 60
20, 25, 32 60, 70, 80, 90, 100

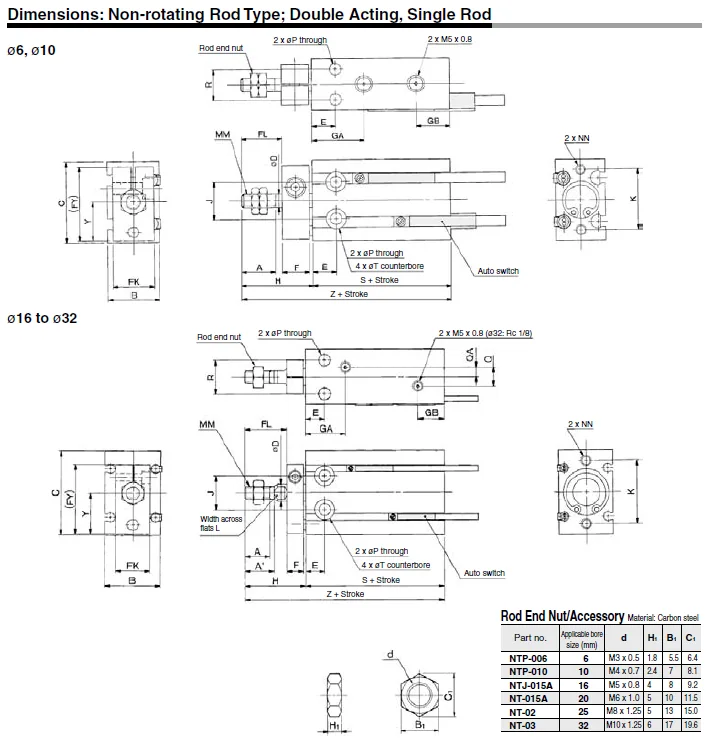

Dimension drawing
Bore size (mm) A A' B C D E F FL FK FY GA GB H J K
6 7 - 13 22 3 7 8 9 11 20.5 15 10 18 10 17
10 10 - 15 24 4 7 8 12 12 22 16.5 10 21 11 18
16 11 12.5 20 32 6 7 8 17 13 28 16.5 11.5 26 14 25
20 12 14 26 40 8 9 8 20 16 33 19 12.5 29 16 30
25 15.5 18 32 50 10 10 10 22 20 43.5 21.5 13 33 20 38
32 19.5 22 40 62 12 11 12 29 24 51.5 23 12.5 42 24 48

Bore size (mm) L MM NN P Q QA R T Y Without auto switch With auto switch
S Z S Z
6 - M3x0.5 M3x0.5 depth 5 3.2 - - 7 6 depth 4.8 10.5 33 46 33 46
10 - M4x0.7 M3x0.5 depth 5 3.2 - - 9 6 depth 5 11.5 36 52 36 52
16 5 M5x0.8 M4x0.7 depth 6 4.5 4 2 12 7.6 depth 6.5 15.5 30 46 40 56
20 6 M6x1.0 M5x0.8 depth 8 5.5 9 4.5 16 9.3 depth 8 19.5 36 55 46 65
25 8 M8x1.25 M5x0.8 depth 8 5.5 9 4.5 20 9.3 depth 9 24.5 40 63 50 73
32 10 M10x1.25 M6x1.0 depth 9 6.6 13.5 4.5 24 11 depth 11.5 30.5 42 69 52 79
