CJP2 Series Pin Cylinder is listed in the pneumatic cylinders section of the Betre catalogue under the Pin Cylinder series. It is manufactured by YUEQING BETRE AUTOMATION CO., LTD. in Yueqing, Zhejiang, and supplied to automation machine builders and distributors in China and export markets.

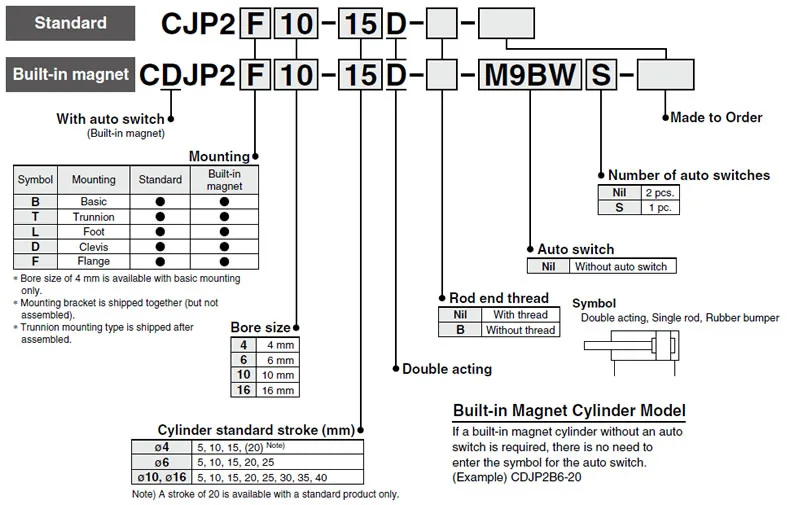

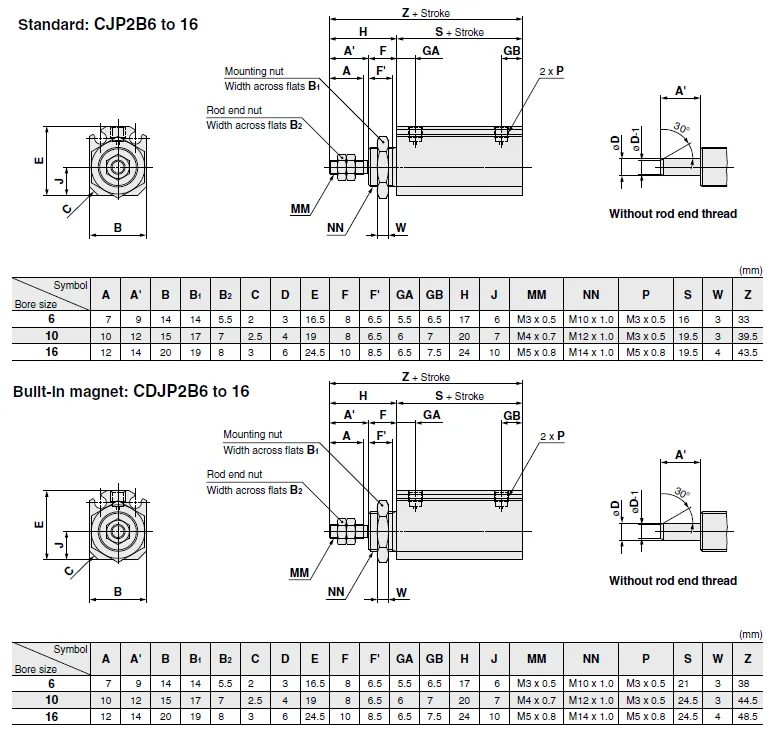

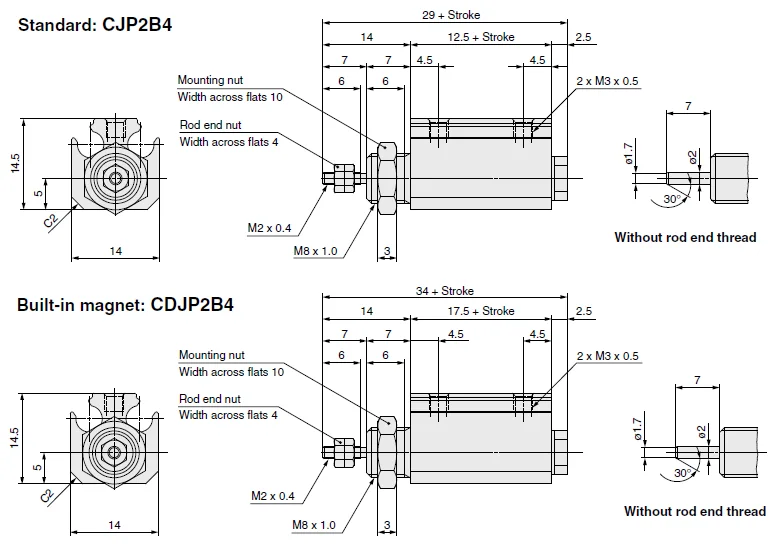

The tables and drawings below are reproduced from the Betre product catalogue for this model.
| Action | Double acting, Single rod | |||||||||
| Maximum operating pressure | 0.7 MPa | |||||||||
| Minimum operating pressure | ø4 | 0.15 MPa | ||||||||
| ø6 | 0.12 MPa | |||||||||
| ø10, ø16 | 0.06 MPa | |||||||||
| Proof pressure | 1 MPa | |||||||||
| Ambient and fluid temperature |
Without auto switch: –10 to 70°C With auto switch: –10 to 60°C (No freezing) |
|||||||||
| Lubrication | Not required (Non-lube) | |||||||||
| Piston speed | 10 to 500 mm/s | |||||||||
| Cushion | Rubber bumper | |||||||||
| Stroke length tolerance | +1.0~0 | |||||||||
| Rod end style | With thread/Without thread | |||||||||

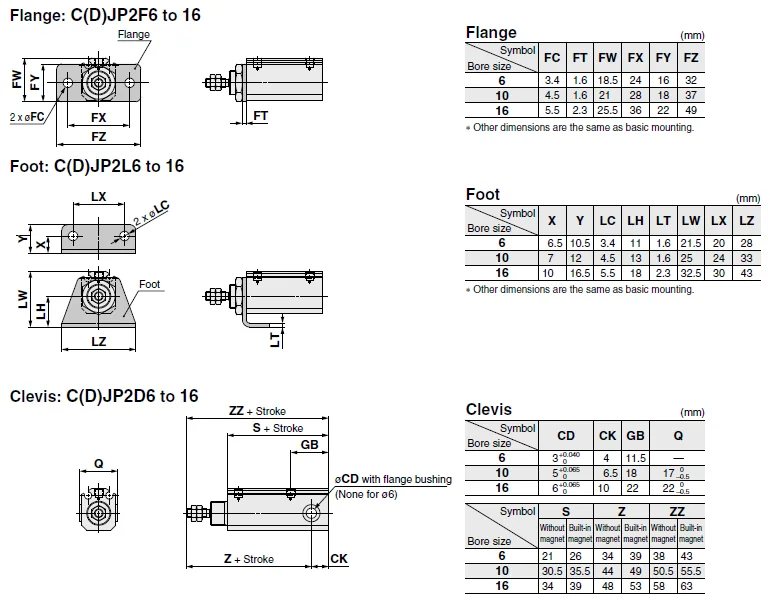

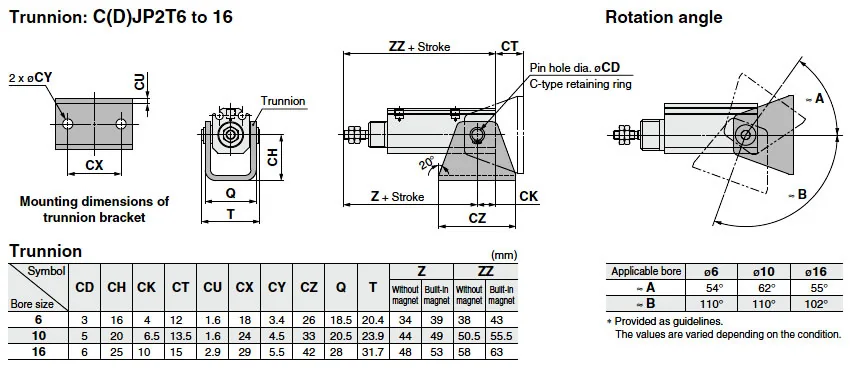

| Mounting | Basic, Flange, Foot, Clevis, Trunnion | |||||||||
Other parts from the same Pin Cylinder range, usually quoted alongside this one.
CJP2 Series Pin Cylinder sits in the Pneumatic Cylinders category of the Betre catalogue, under the Pin Cylinder series.
Yes. We offer OEM and ODM services according to customers' requirements and we make our own moulds and tooling.
Email [email protected] or [email protected] with the model code and quantity, or call +86-577-61712130. Our contact person is April Huang.
Yes. We do the inspection for all the products before delivery.
Our products sell all over China and in the international markets of European, North and South American countries, Southeast Asia and Oceania.
Send the quantity and any port thread or bore requirement, and we will confirm price and lead time.
