CJ1 Series Air Cylinder: Single Acting is listed in the pneumatic cylinders section of the Betre catalogue under the Pin Cylinder series. It is manufactured by YUEQING BETRE AUTOMATION CO., LTD. in Yueqing, Zhejiang, and supplied to automation machine builders and distributors in China and export markets.

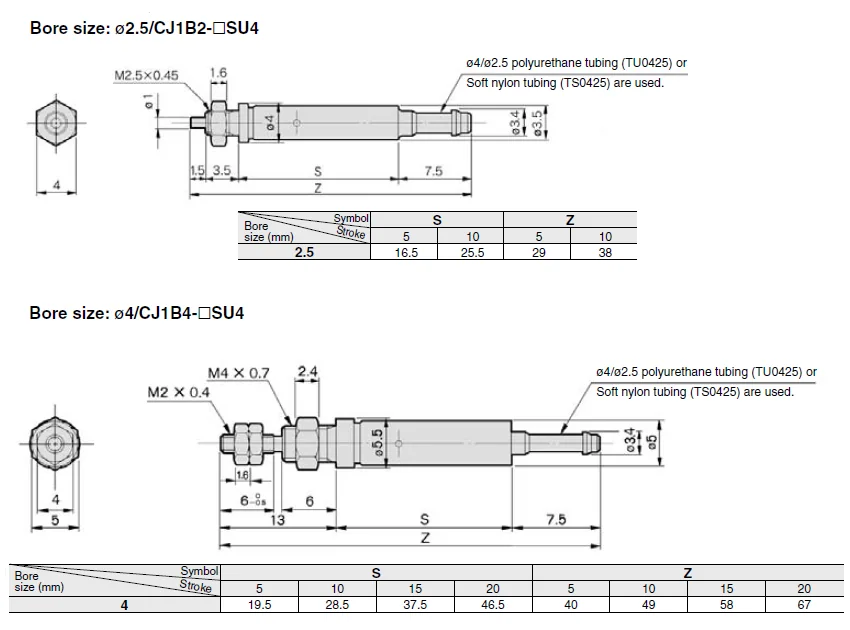

The tables and drawings below are reproduced from the Betre product catalogue for this model.
| Action | Single acting, Spring return | |||||
| Fluid | Air | |||||
| Proof pressure | 1.05 MPa | |||||
| Maximum operating pressure | 0.7 MPa | |||||
| Minimum operating pressure | 0.3 MPa | |||||
| Ambient and fluid temperature | –10 to 70°C (No freezing) | |||||
| Piston speed | 50 to 500 mm/s | |||||
| Cushion | None | |||||
| Stroke length tolerance | +0.5~0mm | |||||
| Mounting | Basic style | |||||
| Lubrication | Not required (Non-lube) | |||||

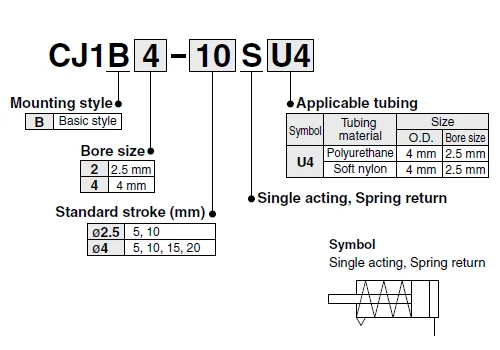

| Model | Bore size (mm) | Standard stroke (mm) | |||
| CJ1B2 | 2.5 | 5, 10 | |||
| CJ1B4 | 4 | 5, 10, 15, 20 | |||
