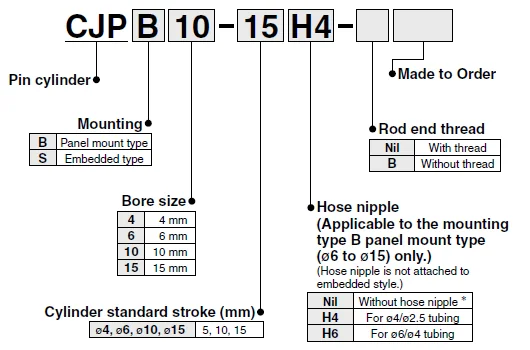

CJP Series Pin Cylinder is listed in the pneumatic cylinders section of the Betre catalogue under the Pin Cylinder series. It is manufactured by YUEQING BETRE AUTOMATION CO., LTD. in Yueqing, Zhejiang, and supplied to automation machine builders and distributors in China and export markets.
The tables and drawings below are reproduced from the Betre product catalogue for this model.
| Action | Single acting, Spring return | ||||||
| Maximum operating pressure | 0.7 MPa | ||||||
| Minimum operating pressure | ø4 | 0.3 MPa | |||||
| ø6 | 0.2 MPa | ||||||
| ø10, ø15 | 0.15 MPa | ||||||
| Proof pressure | 1 MPa | ||||||
| Ambient and fluid temperature | -10 to 70°C (No freezing) | ||||||
| Lubrication | Not required (Non-lube) | ||||||
| Piston speed | 50 to 500 mm/s | ||||||
| Cushion | None | ||||||
| Stroke length tolerance | +1.0~0 | ||||||
| Rod end style | With thread/Without thread | ||||||
| Mounting | Panel mount type | Embedded type | |||||
|
Accessory (Standard equipment) |
Standard equipment |
Mounting nut (2) Rod end nut (2)* |
Mounting nut (1) Gasket (1) * Rod end nut (2) |
||||
| Option | Hose nipple (Except ø4) | - | |||||

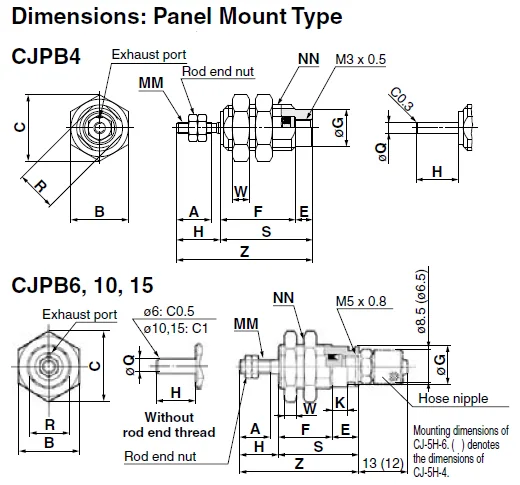

| Bore size (mm) | A | B | C | E | F | G | H | K | MM | NN | R | S | W | Z | Q | ||||||
| 5st | 10st | 15st | 5st | 10st | 15st | 5st | 10st | 15st | |||||||||||||
| 4 | 6 | 10 | 11.5 | 3 | 13 | 21 | 29 | 6.5 | 7.5 | — | M2x0.4 | M8x1.0 | 7 | 16 | 24 | 32 | 3 | 23.5 | 31.5 | 39.5 | 2 |
| 6 | 7 | 12 | 13.9 | 6 | 12.5 | 19.5 | 26.5 | 8.5 | 9 | 3.5 | M3x0.5 | M10x1.0 | 9 | 18.5 | 25.5 | 32.5 | 3 | 27.5 | 34.5 | 41.5 | 3 |
| 10 | 10 | 19 | 22 | 6 | 14.5 | 21 | 28 | 12 | 12 | 3.5 | M4x0.7 | M15x1.5 | 13 | 20.5 | 27 | 34 | 4 | 32.5 | 39 | 46 | 5 |
| 15 | 12 | 27 | 31 | 7 | 16.5 | 22.5 | 29 | 19 | 14 | 4.2 | M5x0.8 | M22x1.5 | 20 | 23.5 | 29.5 | 36 | 5 | 37.5 | 43.5 | 50 | 6 |

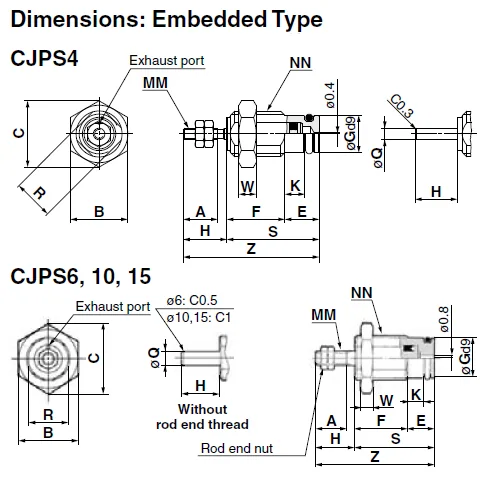

| Bore size (mm) | A | B | C | E | F | G | H | K | MM | NN | R | S | W | Z | Q | ||||||
| 5st | 10st | 15st | 5st | 10st | 15st | 5st | 10st | 15st | |||||||||||||
| 4 | 6 | 10 | 11.5 | 6 | 10 | 18 | 26 | 6.5 | 7.5 | 3.5 | M2x0.4 | M8x1.0 | 7 | 16 | 24 | 32 | 3 | 23.5 | 31.5 | 39.5 | 2 |
| 6 | 7 | 12 | 13.9 | 6 | 12.5 | 19.5 | 26.5 | 8.5 | 9 | 3.5 | M3x0.5 | M10x1.0 | 9 | 18.5 | 25.5 | 32.5 | 3 | 27.5 | 34.5 | 41.5 | 3 |
| 10 | 10 | 19 | 22 | 6 | 14.5 | 21 | 28 | 12 | 12 | 3.5 | M4x0.7 | M15x1.5 | 13 | 20.5 | 27 | 34 | 4 | 32.5 | 39 | 46 | 5 |
| 15 | 12 | 27 | 31 | 7 | 16.5 | 22.5 | 29 | 19 | 14 | 4.2 | M5x0.8 | M22x1.5 | 20 | 23.5 | 29.5 | 36 | 5 | 37.5 | 43.5 | 50 | 6 |
