X5FCAM4K8MPA Autofocus EDF 4K HDMI WiFi Microscope Camera

Application notes from the listing

Support 4K 60fps low delay HDMI output mode, with an average delay of 40ms. SD card/USB flash drive for captured image and video storage, support local preview and playback. New browsing function, providing rich file operation functions, image to image comparison, image to real-time video comparison, multi-image EDF and other functions.

Multiple focusing methods, and the size of the focusing area can be modified; Provide AF+EDF, facilitating the synthesis of high depth of field images in multiple focus areas at high magnification. Excellent ISP with local tone mapping and 3D denoising.

Real-time video EDF function and real-time video WDR output function. Two sets of default ISP parameters for biological microscope and stereo microscope. Embedded XCamView for the control of the camera and image processing, supporting automatic edge finding and measurement functions.

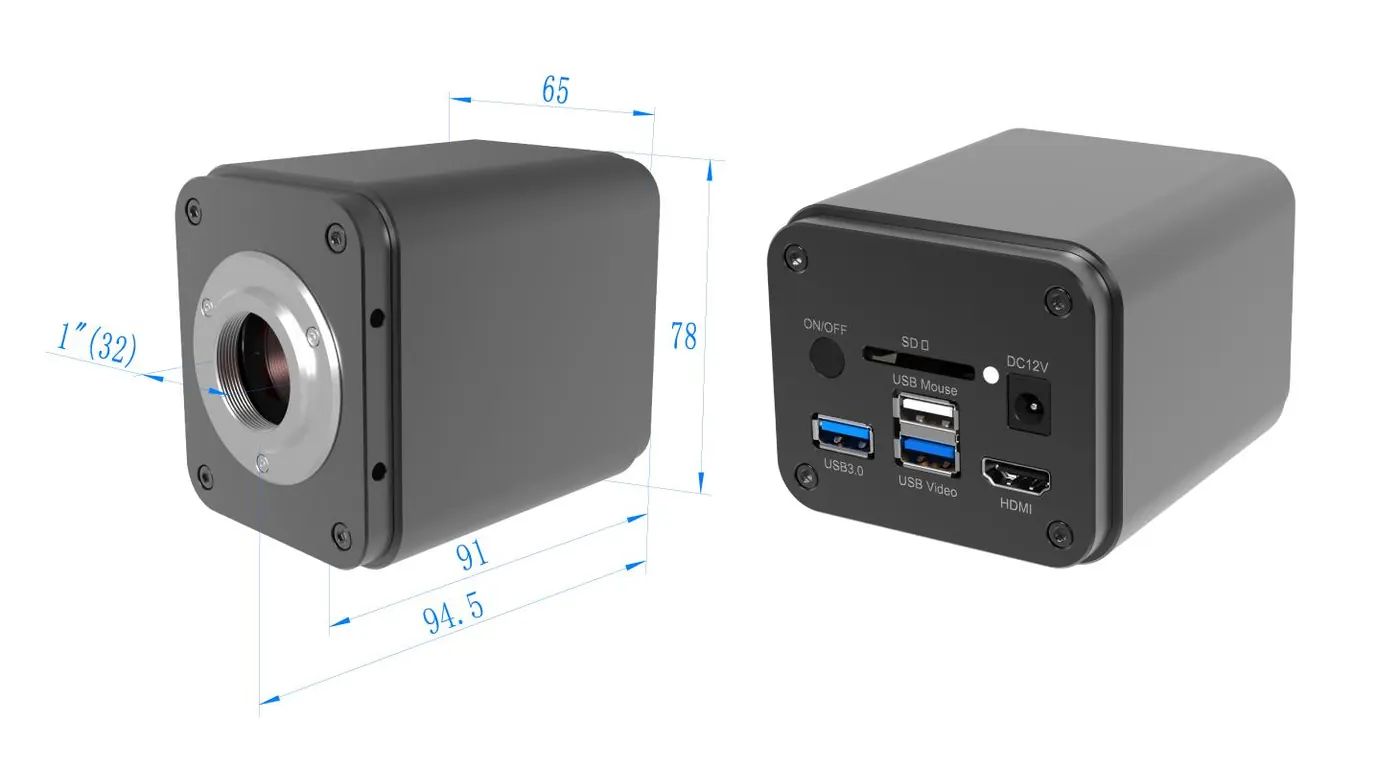

ToupView/ToupLite software for PC. iOS/Android applications for smartphones or tablets. Camera Datasheet and Functions Order Code Sensor&Size(mm) Pixel(μm) GSensitivity DarkSignal SensorOutput (FPS/Resolution) Binning Exposure(ms) X5FCAM4K8MPA Sony IMX678(C)1/1.8″(7.68×4.32) 2.0×2.0 3541mv with1/30s0.15mv with1/30s 60@3840*2160 1×1 0.019~1000 CameraModel Video Saving(FPS/Resolution) HDMI2.0(FPS/Resolution) USB3.0(FPS/Resolution) WiFi(FPS/Resolution) X5FCAM4K8MPA 60@3840*2160 60@1920*1080 60@3840*2160 60@1920*1080 30@3840*2160 45@2688*1512 60@1920*1080 30@3840*2160 60@1920*1080 60@1280*720 I nterface or Button Function Description USB Mouse Connect USB mouse for easy operation with embedded XCamView software USB3.0 Connect USB flash drive to save pictures and videos Connect 5G WiFi module to transfer video wirelessly in real time USB Video Connect PC or other host device to realize video image transmission HDMI Comply with HDMI2.0 standard.

4K/1080P format video output and supporting automatic switch between 4K and 1080P format according to the connected monitors LAN LAN port to connect router and switch to transfer video SD Comply with SDIO3.0 standard and SD card could be inserted for video and images saving ON/OFF Power switch LED LED status indicator DC12V Power adapter connection (12V/1A) Video Output Interface Function Description HDMI Interface Comply with HDMI2.0 standard;60fps@4K or 60fps@1080P WiFi Interface Connecting 5G WiFi adapter (USB3.0 slot) in AP/STA mode USB Video Interface Connecting USB Video port of PC for video transfer H264/MJPEG format video Other Function Function Description Video Saving Video format：8M(3840*2160) H264/H265encoded MP4file Video saving frame rate:72fps(X7CAM4K8MPA); 75fps(X7CAM4K8MPB); 60fps in low delay mode Image Capture 8M (3840*2160)JPEG/TIFFimage in SD card or USB flash drive(Default SD card priority, priority can be modified in settings) Measurement Saving Measurement information saved in different layer with image content Measurement information is saved together with image content in burn in mode ISP Exposure(Automatic /Manual Exposure)/ Gain，White Balance(Manual /Automatic /ROIMode)，Sharpening，3D Denoise，Saturation Adjustment，Contrast Adjustment，Brightness Adjustment，Gamma Adjustment，Color to Gray，50HZ/60HZ Anti-flicker Function Image Operation Zoom In/Zoom Out(Up to 10X), Mirror/Flip, Freeze, Cross Line, Browser(including Picture Browsing ,Video Playback , Video Compare , Picture Compare), Measurement Function Embedded RTC(Optional) To support accurate time on board Restore Factory Settings Restore camera parameters to its factory status Multiple Language Support English / Simplified Chinese / Traditional Chinese / Korean / Thailand / French / German /Spanish / Japanese / Italian / Russian / Dutch / Portuguese Software Environment under Network/USBVideo Output White Balance Auto White Balance Color Technique Ultra-Fine Color Engine Capture/Control SDK Windows/Linux/macOS/Android Multiple Platform SDK(Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc) Recording System Still Picture or Movie Operating System Microsoft® Windows®XP/Vista / 7 / 8/ 8.1 /10(32 & 64 bit) OSx(MacOS X) Linux PCRequirements CPU: Equal to Intel Core2 2.8GHz or Higher Memory: 4GB or More Ethernet Port: RJ45 Ethernet Port Display:19” or Larger CD-ROM Operating Environment Operating Temperature (in Centidegree) -10°~50° Storage Temperature (in Centidegree) -20°~ 60° Operating Humidity 30~80%RH Storage Humidity 10~60%RH Power Supply DC 12V/1A Adapter D imension of X5CAM4K Series Camera Camera Packing Information Standard Packing List A Gift box : L:25.5cmW:17.0cm H:9.0cm (1pcs, 1.7Kg/ box) B X5FCAM4K8MPA Camera C Power Adapter: Input: AC 100~240V 50Hz/60Hz, Output: DC 12V 1A American standard: Model: POWER-U- 12V1A(MSA-C1000IC12.0-12W-US): UL/CE/FCC European standard: Model: POWER-E- 12V1A(MSA-C10001C12.0- 12W-DE): UL/CE/FCC EMI standard: FCC Part 15 Subpart B EMS standard: EN61000-4-2,3,4,5,6 D USB Mouse E F USB3.0 A male to Amale gold-plated connectors cable /2.0m G CD (Driver & utilities software, Ø12cm) Optional Accessory H SD Card(16G or above; Speed: class 10) I Adjustable lens adapter C-Mount to Dia.23.2mm Eyepiece Tube (Please choose 1 of them for your microscope) 108001/AMA037 108002/AMA050 108003/AMA075 J Fixed lens adapter C-Mount to Dia.23.2mm Eyepiece Tube (Please choose 1 of them for your microscope) 108005/FMA037 108006/FMA050 108007/FMA075 Note: For I and J optional items, please specify your camera type(C-mount, microscope camera or telescope camera), our engineer will help you to determine the right microscope or telescope camera adapter for your application; K 108015(Dia.23.2mm to 30.0mm Ring)/Adapter rings for 30mm eyepiece tube L 108016(Dia.23.2mm to 30.5mm Ring)/ Adapter rings for 30.5mm eyepiece tube M Calibration kit 106011/TS-M1(X=0.01mm/100Div.); 106012/TS-M2(X, Y=0.01mm/100Div.); 106013/TS-M7(X=0.01mm/100Div., 0.10mm/100Div.) N USB flash drive O USB WiFi adapter
