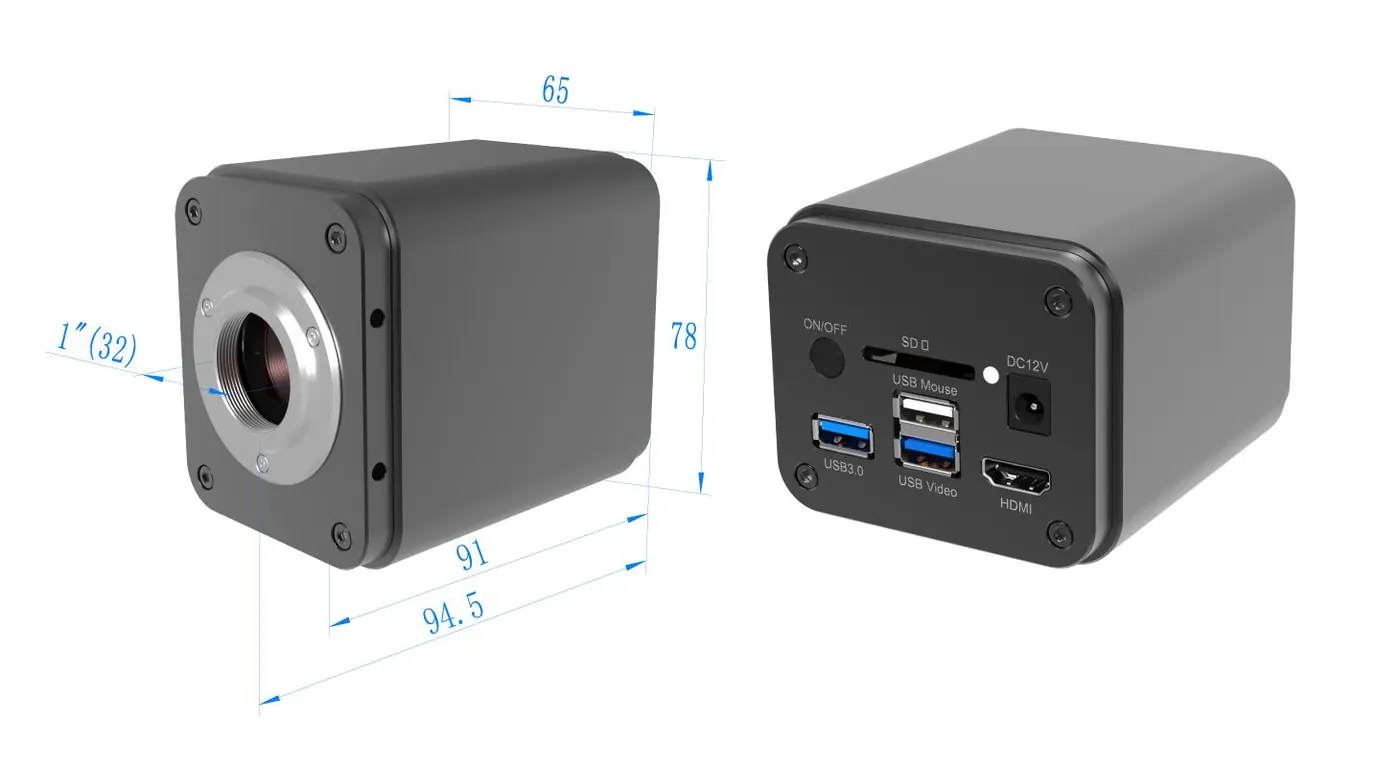

SCAM4K8MPA/B Sony Imx678 IMX585 Digital Microscope Camera

Application notes from the listing

4K/1080P format video output and supporting automatic switch between 4K and 1080P format according to the connected monitors SD Comply with SDIO3.0 standard and SD card could be inserted for video and images saving ON/OFF Power switch LED LED status indicator DC12V Power adapter connection (12V/1A) Video Output Interface F unction Description HDMI Interface Comply with HDMI1.4 standard 30fps@4K or 30fps@1080P WiFi Interface Connecting 5G WiFi adapter (USB2.0 slot) in AP/STA mode 1080P H264 format video, 8M (3840*2160) image USB Video Interface Connecting USB3.0 Video port of PC for video transfer H264/NV12/MJPEG format video Other F unction F unction Description Video Saving Video format:8M(3840*2160) H264/H265 encoded MP4 file Video saving frame rate:30fps Image Capture 8M (3840*2160) JPEG/TIFF image in SD card or USB flash drive Measurement Saving Measurement information saved in different layer with image content Measurement information is saved together with image content in burn in mode ISP Exposure(Automatic / Manual Exposure) / Gain, White Balance(Manual / Automatic / ROI Mode), Sharpening, 3D Denoise, Saturation Adjustment, Contrast Adjustment, Brightness Adjustment, Gamma Adjustment, Color to Gray, 50HZ/60HZ Anti-flicker Function Image Operation Zoom In/Zoom Out(Up to 10X), Mirror/Flip, Freeze, Cross Line, Compare(Comparison between real time video and images in SD card or USB flash drive ), Embedded Files Browser, Video Playback, Measurement Function Embedded RTC(Optional) To support accurate time on board Restore Factory Settings Restore camera parameters to its factory status Multiple Language Support English / Simplified Chinese / Traditional Chinese / Korean / Thailand / French / German / Japanese / Italian / Russian Software Environment under W iFi /USB Video Output White Balance Auto White Balance Color Technique Ultra-Fine Color Engine Capture/Control SDK Windows/Linux/macOS/Android Multiple Platform SDK(Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc) Recording System Still Picture or Movie Operating System Microsoft® Windows® XP / Vista / 7 / 8 / 8.1 /10(32 & 64 bit) OSx(Mac OS X) Linux PC Requirements CPU: Equal to Intel Core2 2.8GHz or Higher Memory: 4GB or More Display:19″ or Larger CD-ROM Operating Environment Operating Temperature (in Centidegree) -10°~ 50° Storage Temperature (in Centidegree) -20°~ 60° Operating Humidity 30~80%RH Storage Humidity 10~60%RH Power Supply DC 12V/1A Adapter Dimension of S CAM4K Series Camera image Dimension of SCAM4K Series Camera SCAMK Series Camera Packing Information Packing SCAM4K Series Camera Packing Information Standard Packing List A Gift box : L:25.5cm W:17.0cm H:9.0cm (1pcs, 1.57Kg/ box) B SCAM4K Camera(One of the two different shapes) C Power Adapter: Input: AC 100~240V 50Hz/60Hz, Output: DC 12V 1A American standard: Model: POWER-U-12V1A(MSA-C1000IC12.0-12W-US): UL/CE/FCC European standard: Model: POWER-E-12V1A(MSA-C10001C12.0-12W-DE): UL/CE/FCC EMI standard: FCC Part 15 Subpart B EMS standard: EN61000-4-2,3,4,5,6 D USB Mouse E HDMI Cable F USB3.0 A male to A male gold-plated connectors cable /2.0m G CD (Driver & utilities software, Ø12cm) Optional Accessory H SD Card(16G or above; Speed: class 10) I Adjustable lens adapter C-Mount to Dia.23.2mm Eyepiece Tube (Please choose 1 of them for your microscope) 108001/AMA037 108002/AMA050 108003/AMA075 J Fixed lens adapter C-Mount to Dia.23.2mm Eyepiece Tube (Please choose 1 of them for your microscope) 108005/FMA037 108006/FMA050 108007/FMA075 Note: For K and L optional items, please specify your camera type(C-mount, microscope camera or telescope camera), ToupTek engineer will help you to determine the right microscope or telescope camera adapter for your application; K 108015(Dia.23.2mm to 30.0mm Ring)/Adapter rings for 30mm eyepiece tube L 108016(Dia.23.2mm to 30.5mm Ring)/ Adapter rings for 30.5mm eyepiece tube M Calibration kit 106011/TS-M1(X=0.01mm/100Div.); 106012/TS-M2(X,Y=0.01mm/100Div.); 106013/TS-M7(X=0.01mm/100Div., 0.10mm/100Div.) N USB flash drive O USB WiFi adapter ​ ​ NOTE: If you need optional accessories, pls feel free to contact me.

I will quote seperately.
