MZDV0640 Mini 6.7: 1 Zoom Monocular Video Microscope

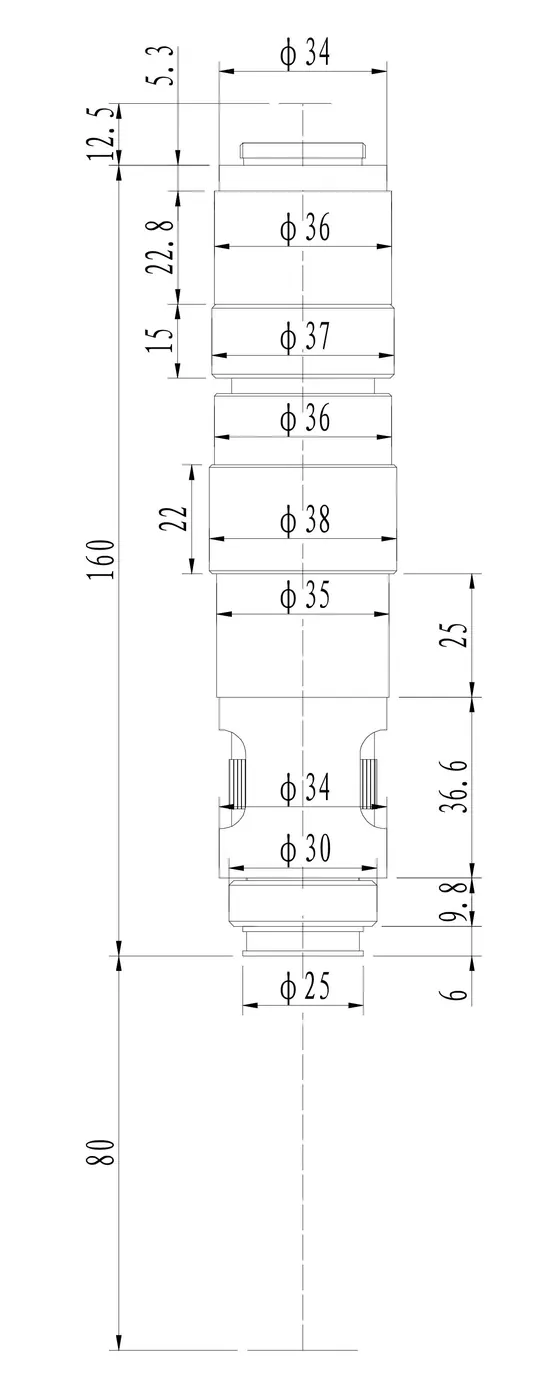

Zoom range 0.6X~4.0X Zoom radio 6.7: 1 WD 82mm（1X Objective） Illumination Adjustable high brightness , long life LED coaxial illumination Holder and Main body matched dimension Φ35mm Mount Standard CS-mount(distance between the bearing surface and the CCD plane is 12.5mm) Objective Items CCD adapter 0.5X 1X 1.5X 2X 0.3X WD:293mm Total Mag.
Application notes from the listing
0.09X～0.6X 0.18X～1.2X 0.27X～1.8X 0.36X～2.4X FOV(mm) 40X53.33～6X8 20X26.67～3X4 13.33X17.78～2X2.67 10X13.33～1.5X2.0 0.4X WD:223mm Total Mag. 0.12X～0.8X 0.24X～1.6X 0.36X～2.4X 0.48X～3.2X FOV(mm) 30X40～4.5X6 15X20～2.25X3 10X13.33～1.5X2 7.5X10～1.13X1.5 0.5X WD:175mm Total Mag.
0.15X～1X 0.30X～2X 0.45X～3X 0.6X～4X FOV(mm) 24X32～3.6X4.8 12X16～1.8X2.4 8.0X10.67～1.2X1.6 6.0X8.0～0.9X1.2 0.6X WD:145mm Total Mag. 0.18X～1.2X 0.36X～2.4X 0.54X～3.6X 0.72X～4.8X FOV(mm) 20X26.67～3X4 10X13.33～1.5X2 6.67X8.89～1X1.33 5X6.67～0.75X1 0.75X WD:117mm Total Mag.
0.23X～1.5X 0.45X～3X 0.68X～4.5X 0.9X～6X FOV(mm) 16X21.33～2.4 X3.2 8.0X10.67～1.2X1.6 5.33X7.11～0.8X1.07 4.0X5.33～0.6X0.8 0.9X WD:93mm Total Mag. 0.27X～1.8X 0.54X～3.6X 0.81X～5.4X 1.08X～7.2X FOV(mm) 13.33X17.78～2X2.67 6.67X8.89～1X1.33 4.44X5.93～0.67X0.89 3.33X4.44～0.5X0.67 1X WD:82mm Total Mag.
0.3X～2X 0.6X～4X 0.9X～6X 1.2X～8X FOV(mm) 12X16～1.8X2.4 6.0X8.0～0.9X1.2 4.0X5.33～0.6X0.8 3.0X4.0～0.45X0.6 1.5X WD:54mm Total Mag. 0.45X～3X 0.9X～6X 1.35X～9X 1.8X～12X FOV(mm) 8X10.67～1.2X1.6 4.0X5.33～0.6X0.8 2.67X3.56～0.4X0.53 2.0X2.67～0.3X0.4 2X WD:35mm Total Mag.
0.6X～4X 1.2X～8X 1.8X～12X 2.4X～16X FOV(mm) 6X8～0.9X1.2 3.0X4.0～0.45X0.6 2.0X2.67～0.3X0.4 1.5X2.0～0.23X0.3 Zoom body magnification range: 0.6X～4.0X mag. NA DOF Resolution TV Distortion Fixed Dim.：Φ45mm Max compatible camera：1/2″ CCD screw mount： 1 inch 32 button 1X CCD adapter 1X CCD plane adapter 0.6X 0.021 3.2mm 16μm 0.5% 0.05% 2.0X 0.068 0.29mm 4.9μm 0.4% 0.07% 4.0X 0.097 0.10mm 3.5μm 0.
What should I send with a quote request?
The model name (MZDV0640 Mini 6.7: 1 Zoom Monocular Video Microscope), binocular or trinocular preference, whether a camera is required, destination country, and any thread already on the stand.
Are extra specifications available?
Only values printed on the original AMADA listing are shown here. Missing numbers are TBC.
How do I order accessories for this model?
Open the matching accessory family and quote both product names in one email.
