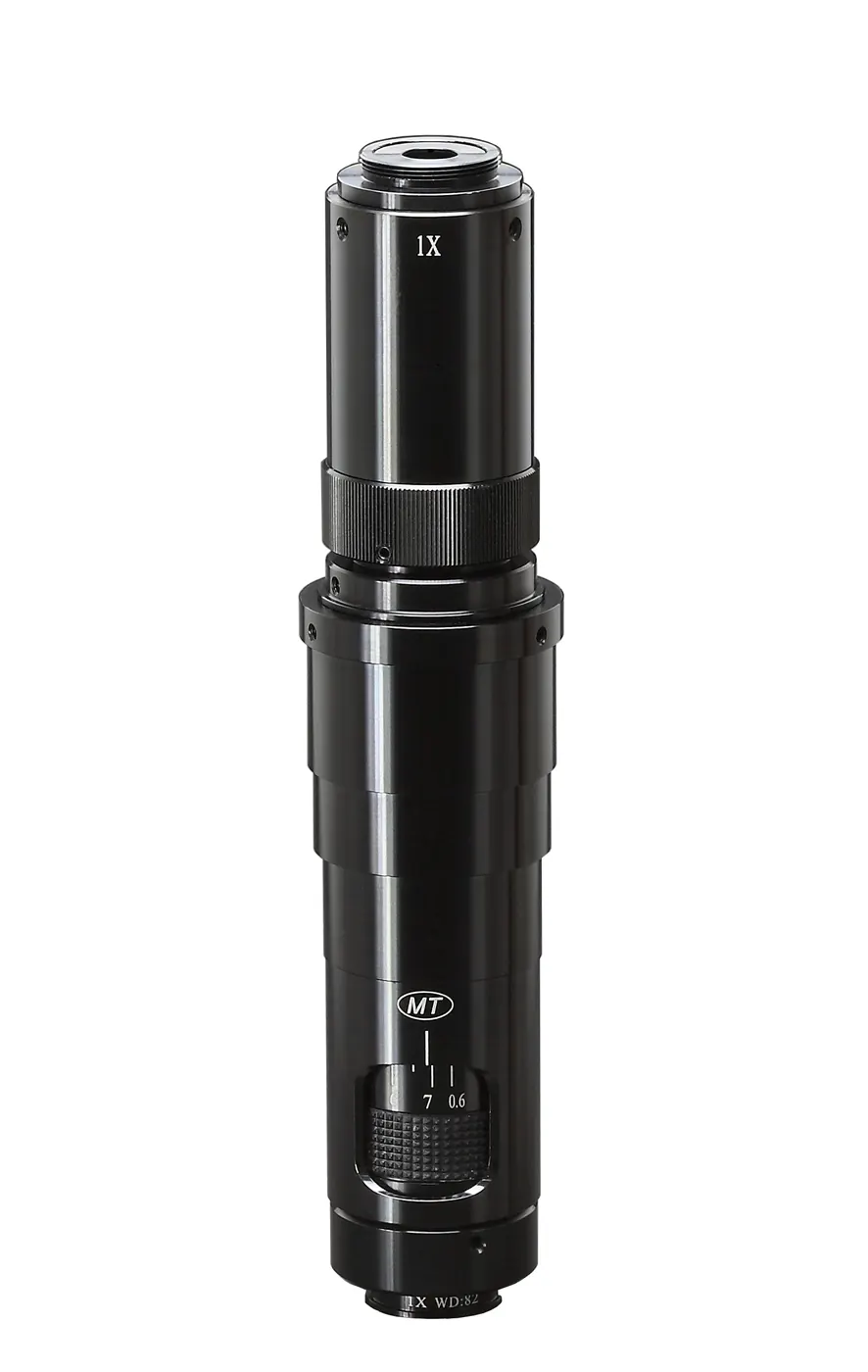

MZDH0670 12:1 Large Magnification Monocular Video Microscope

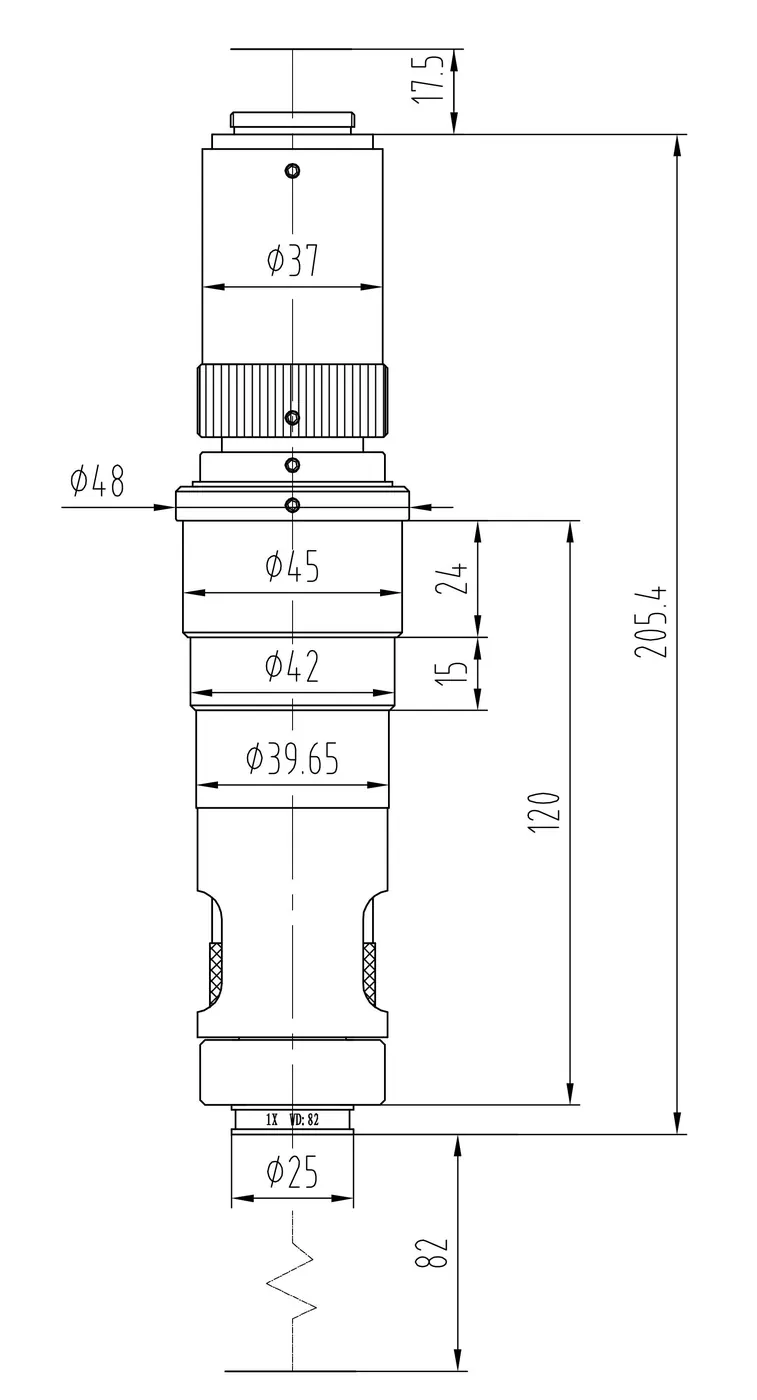

MZDH0670 Large Magnification Ratio Series Zoom range 0.58X~7.0X Zoom ratio 12:1 WD 82mm（ 1X Objective） Illumination Adjustable high brightness , long life LED coaxial illumination; LED ring illumination Main body and Holder matching dimension Φ45mm Mount Standard CS-mount (distance between the bearing surface and the CCD plane is 12.5mm) Magnification NA DOF Resolution TV Distortion Fixed Dim.：Φ45mm Max compatible camera：1/2″ CCD screw mount： 1 inch 32 button 0.58X 0.021 3.3mm 16.0μm 0.32% 2.0X 0.067 0.30mm 5.0μm 0.22% 4.0X 0.093 0.11mm 3.6μm 0.19% 7.0X 0.097 0.06mm 3.5μm 0.16% Objectives Item CCD adapter 0.4X 0.5X 0.67X 1X 1.5X 2X 0.3X WD:293mm Total Mag.
Application notes from the listing
0.07X～0.84X 0.09X～1.05X 0.12X～1.4X 0.17X～2.1X 0.26X～3.15X 0.35X～4.2X FOV(mm) 50X66.67～4.3X5.7 40X53.33～3.43X4.57 30X40～2.57X3.43 21.1X28.2～1.71X2.29 13.85X18.46～1.14X1.52 10.3X13.71～0.86X1.14 0.4X WD:223mm Total Mag. 0.096X～1.12X 0.12X～1.4X 0.16X～1.88X 0.24X～2.8X 0.36X～4.2X 0.48X～5.6X FOV(mm) 37.5X50～ 3.2X4.3 30X40～ 2.57X3.43 22.5X30～ 1.91X2.55 15X20～ 1.29X1.71 10X13.33～ 0.86X1.14 7.5X10～ 0.64X0.86 0.5X WD:175mm Total Mag.
0.12X～1.4X 0.15X～1.75X 0.2X～2.34X 0.29X～3.5X 0.44X～5.25X 0.58X～7X FOV(mm) 30X40～2.57X3.43 24X32～2.06X2.74 18X24～1.5X2 12.4X16.5～1.03X1.37 8.2X10.91～0.69X0.91 6.2X8.3～0.51X0.69 0.6X WD:145mm Total Mag. 0.144X～1.68X 0.18X～2.1X 0.24X～2.8X 0.36X～4.2X 0.54X～6.3X 0.72X～8.4X FOV(mm) 25X33.33～2.14X2.86 20X26.67～1.71X2.29 15X20～1.29X1.71 10X13.33～0.86X1.14 6.67X18.89～0.57X0.76 5X6.67～0.43X0.57 0.75X WD:117mm Total Mag.
0.18X～2.1X 0.22X～2.62X 0.3X～3.5X 0.44X～5.25X 0.65X～7.87X 0.87X～10.5X FOV(mm) 20X26.67～1.7X2.3 16X21.33～1.37 X1.83 12X16～1.03 X1.37 8.2X10.9～0.69X0.91 5.53X7.38～0.46X0.61 4.1X5.52～0.34X0.46 0.9X WD:93mm Total Mag. 0.216X～2.52X 0.27X～3.15X 0.36X～4.22X 0.54X～6.3X 0.81X～9.45X 1.08X～12.6X FOV(mm) 16.67X22.22～1.43X1.9 13.33X17.78～1.14 X1.52 10X13.33～ 0.85X1.14 6.67X8.89～ 0.57X0.76 4.44X5.93～0.38X0.51 3.33X4.44～ 0.29X0.38 1X WD:82mm Total Mag.
0.24X～2.8X 0.3X～3.5X 0.4X～4.69X 0.58X～7X 0.87X～10.5X 1.16X～14X FOV(mm) 15X20～1.3X1.7 12X16～1.03X1.37 9X12～0.77X1 6.2X8.3～0.51X0.69 4.1X5.52～0.34X0.46 3.1X4.1～0.26X0.34 1.5X WD:54mm Total Mag. 0.36X～4.2X 0.45X～5.25X 0.6X～7X 0.87X～10.5X 1.30X～15.75X 1.7X～21X FOV(mm) 10X13.33～0.86X1.14 8X10.67～0.69X0.91 6X8～0.5X0.7 4.13X5.52～0.34X0.46 2.77X3.69～0.23X0.3 2.1X2.82～0.17X0.23 2X WD:35mm Total Mag.
0.48X～5.6X 0.6X～7X 0.8X～9.38X 1.16X～14X 1.7X～21X 2.3X～28X FOV(mm) 7.5X10～0.64X0.86 6X8～0.51X0.69 4.5X6～0.38X0.51 3.1X4.1～0.26X0.34 2.1X2.82～0.18X0.23 1.57X2.09～0.13X0.17 4.5X WD:16mm Total Mag. 1.0X～12.6X 1.3X～15.8X 1.7X～21.1X 2.6X～31.5X 3.9X～47.3X 5.2X～63X FOV(mm) 3.5X4.6～0.29X0.38 2.8X3.7～0.23X0.30 2.1X2.7～0.17X0.23 1.4X1.8～0.11X0.15 0.92X1.23～0.08X0.10 0.69X0.92～0.06X0.08 Zoom body magnification range: 0.58X～7.0X
What should I send with a quote request?
The model name (MZDH0670 12:1 Large Magnification Monocular Video Microscope), binocular or trinocular preference, whether a camera is required, destination country, and any thread already on the stand.
Are extra specifications available?
Only values printed on the original AMADA listing are shown here. Missing numbers are TBC.
How do I order accessories for this model?
Open the matching accessory family and quote both product names in one email.
