MZDR0850 Three-Dimensional Rotated Monocular Microscope

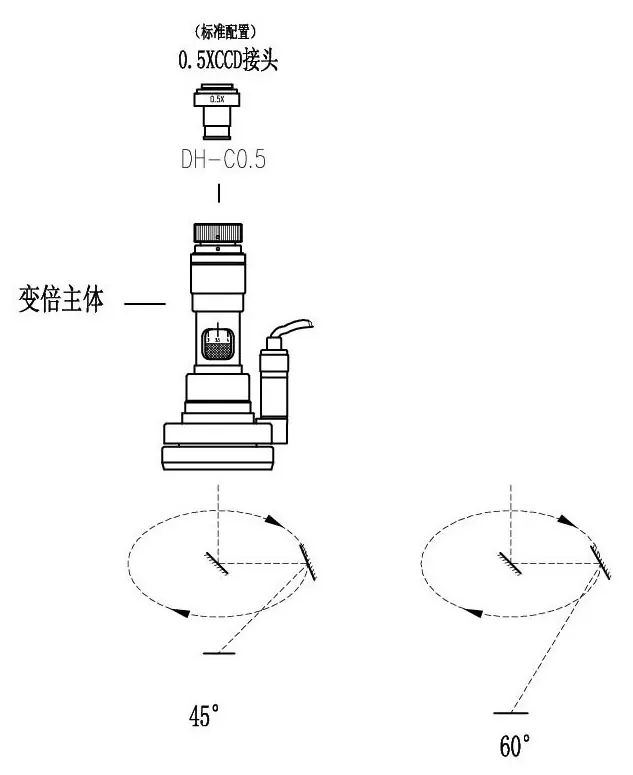

Zoom range 0.28X～1.875X Standard WD 26mm/45°；42mm/60° Illuminators Long life LED illumination Miniature motor 90V~260V wide input voltage. 5 ~ 27 turns/minute, stepless adjustment. Holder and main body matching dimension Φ45mm Zoom body model MZDR0850/45° MZDR0850/60° CCD adapter 0.5X Optical Mag.
Application notes from the listing
0.28X～1.875X FOV(1/3″CCD )(mm) 12.9X17.1～1.92X2.56 Observation angle 45° 60° WD(mm) 26 42
What should I send with a quote request?
The model name (MZDR0850 Three-Dimensional Rotated Monocular Microscope), binocular or trinocular preference, whether a camera is required, destination country, and any thread already on the stand.
Are extra specifications available?
Only values printed on the original AMADA listing are shown here. Missing numbers are TBC.
How do I order accessories for this model?
Open the matching accessory family and quote both product names in one email.
