Who It Is For
- Builders of positioning axes and small motion systems
- Makers of printing labelling and dispensing equipment
- Engineers replacing a stepper motor on an existing machine
Problems It Solves
- Repeatable positioning without a feedback encoder
- Holding torque at standstill without a mechanical brake
- Fitting a standard frame size into an existing mounting
Where It Is Used
- Small automated axes and actuators
- Instrument and laboratory equipment
- Machinery that indexes to fixed positions
Specifications

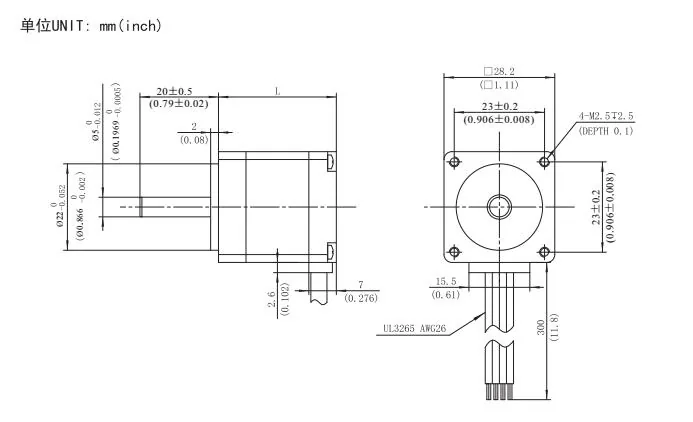

Technical Data And Dimensions
Overall Size
Specifications
| Rated Current | Resistance | Inductance | Lead Wire | Rotor Inertia | Weight | Height | |
| A/Phase | Ω/Phase | mH/Phase | PINS | g.cm2 | oz-in2 | kg(lb) | mm(inch) |
| 1.1 | 2.3 | 2 | 4 | 9 | 0.05 | 0.1(0.22) | 30(1.18) |
| 0.8 | 4.8 | 3.9 | |||||
| 0.55 | 9.2 | 8.0 | |||||
| 1.1 | 2.3 | 2.1 | 12 | 0.07 | 0.15(0.33) | 39(1.54) | |
| 0.8 | 4.7 | 4.2 | |||||
| 0.58 | 9.3 | 8.4 | |||||
| 1.1 | 2.4 | 2.4 | 18 | 0.1 | 0.2(0.44) | 50.5(1.99) | |
| 0.8 | 4.8 | 4.8 | |||||
| 0.6 | 9.6 | 9.6 |
Quality And Certification
The products have been certified by CCC CE and RoHS and qualified by UL in the US and KEMA in the UK. Assembly is carried out in a dustless workshop and finished units are checked on dedicated testing equipment.
See The Factory →Customisation And Ordering
Send the model number the quantity and the coil or supply voltage you need and we will confirm the variant before you order. Drawings can be sent by email and we will come back with what is possible.
Email Your Requirement →
FAQ
S-2818HB Questions
Can the S-2818HB be supplied to a different specification
Send the parameters you need by email with the model number and we will confirm what is possible before you order.
Which certifications does the company hold
The products have been certified by CCC CE and RoHS and qualified by UL in the US and KEMA in the UK.
How do I get a quotation for the S-2818HB
Email [email protected] with the model number and the quantity you need. Include the coil or supply voltage and any variant details so the quotation matches your application.
