D85-30

Measuring RangeDC 0-199.9mV 0-1.999mV 0-19.99V 0-199.9V 0-500V
Working PowerAC or DC 9-12V
Request A Quote Talk To An Engineer Request A Sample

DC Voltage MeterLCD Meter

D85-30

Product Overview

Modeling simple, elegant, LCD panels inline connections, moisture-resistant, strong anti-interference, applies to refrigerated cabinets, chillers and deep freezes and other needs of temperature measurement. The working temperature has a range of-50 ~ 70 degrees Celsius.

Who It Is For

  • Panel builders adding local indication to a board
  • OEMs fitting a readout into a machine front panel
  • Distributors supplying replacement panel meters

Problems It Solves

  • Reading voltage or current at the panel without a handheld instrument
  • Fitting a readable display into a small cut out
  • Keeping a stable reading in electrically noisy surroundings

Where It Is Used

  • Distribution and control panels
  • Machine and equipment front panels
  • Refrigerated cabinets chillers and freezers where temperature is displayed

Specifications

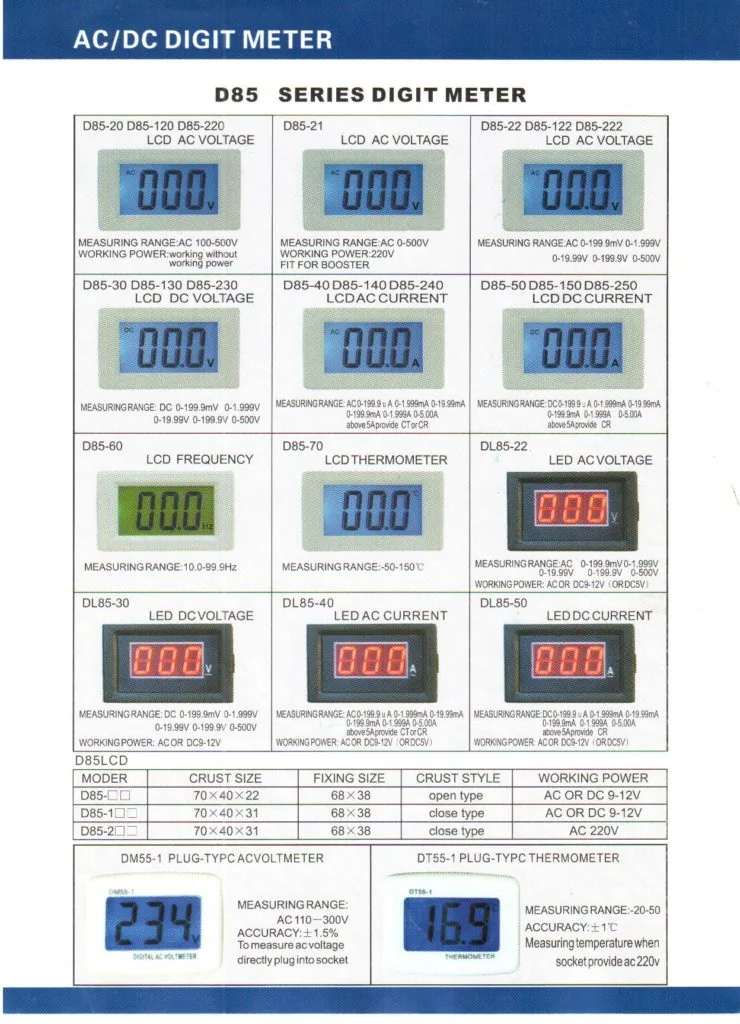

Technical Data And Dimensions

Quality And Certification

The products have been certified by CCC CE and RoHS and qualified by UL in the US and KEMA in the UK. Assembly is carried out in a dustless workshop and finished units are checked on dedicated testing equipment.

See The Factory →

Customisation And Ordering

Send the model number the quantity and the coil or supply voltage you need and we will confirm the variant before you order. Drawings can be sent by email and we will come back with what is possible.

Email Your Requirement →

Related Products

All Instruments & Meters →
D69-20 Instruments & Meters D69-20 Measuring Range: AC 100-500V · Working Power: w/t working power D69-21 Instruments & Meters D69-21 Measuring Range: AC 0-500V · Working Power: 220VAC D69-22 Instruments & Meters D69-22 Measuring Range: AC 0-199.9mV 0-1.999mV 0-19.99V 0-199.9V 0-500V · Working Power: 220VAC D69-30 Instruments & Meters D69-30 Measuring Range: DC 0-199.9mV 0-1.999mV 0-19.99V 0-199.9V 0-500V · Working Power: AC or DC 9-12V

FAQ

D85-30 Questions

What is the Measuring Range of the D85-30
DC 0-199.9mV 0-1.999mV 0-19.99V 0-199.9V 0-500V. The full parameter list is in the specification section on this page.
Can the D85-30 be supplied to a different specification
Send the parameters you need by email with the model number and we will confirm what is possible before you order.
Which certifications does the company hold
The products have been certified by CCC CE and RoHS and qualified by UL in the US and KEMA in the UK.
How do I get a quotation for the D85-30
Email [email protected] with the model number and the quantity you need. Include the coil or supply voltage and any variant details so the quotation matches your application.
