DC Relay
AER6V-50Y 50A High Voltage DC EV Relay
Rated Current50A
Max Load Voltage750VDC
Coil Voltage12VDC/24VDC
Main Contact1NO
Electrical Life (MAX)6000 times
DC High Current Relay
Product Overview
High current heavy duty DC relay/contactor is used to EV/ HEV new energy vehicles, and its charging station/port, renew energy storage, fuel battery/solar battery, high power DC equipments and more.
Key Features
Why This Model Is Specified
- Contact points sealed by ceramic enclosure, and anti-arc by inert gases.
- Permanent magnetic extinguishing arc, high voltage DC cut off
- Anti-magnetic disturbances and explosion-proof
- RoHS listed
- PWM control coil, minimize the coil power consumption
- Vacuum sealed coil
- Contact points and coil double isolated
- Tiny but heavy duty
- Customized design is accepted
Who It Is For
- EV and charging equipment manufacturers switching high voltage DC
- Battery energy storage and solar system integrators
- Builders of high power DC equipment and test benches
Problems It Solves
- Breaking high voltage DC where an arc will not self extinguish at a current zero
- Isolating a battery pack quickly and repeatedly over the life of the vehicle
- Switching in confined spaces where a large DC contactor cannot be mounted
Where It Is Used
- EV and HEV new energy vehicles
- Charging stations and charging ports
- Renewable energy storage fuel cell and solar battery systems
- High power DC equipment
Specifications
Technical Data And Dimensions
50A High Voltage DC EV Relay Features
| Contact | 1NO | ||
| Rated Voltage | 12-750V | ||
| Rated Current | 50A | ||
| Contact Resistance | ≤2mΩ(6VDC 20A) | ||
| Contact Performance | Template high current withstand | (a)200A 10Min (b)300A 10s | |
| Max switch current | 1000A(320VDC) | ||
| Overload break | 150A 450VDC 50 times | ||
| Opposite break | 50A 200VDC 100 times | ||
| Coil | Voltage | 12VDC/24VDC | |
| Pull-in voltage | ≤8.4VDC/16.8VDC | ||
| Release voltage | ≥1VDC/2VDC | ||
| Rated power | 45W(Initiated voltage) 5.5W(Holding voltage) | ||
| Electrical Performance | Withstand voltage | Coil | 3000VAC |
| Contact | |||
| Insulated resistance | Coil | 1000MΩ(1000VDC) | |
| Contact | |||
| Pull-in time | Max: 25ms | ||
| Releasing time | Max: 10ms | ||
| Jumping time | <5ms | ||
| Life-span | Mechanical lifetime | >200000 | |
| Electrical lifetime | 450VDC | 6000 | |
| 750VDC | 3000 | ||
| Mechanical Performance | Withstand impact | Functional | 20G |
| Strength | 50G | ||
| Withstand vibration | Functional | Min20G (80~2000Hz) | |
| Strength | |||
| Weight | ≈220g | ||

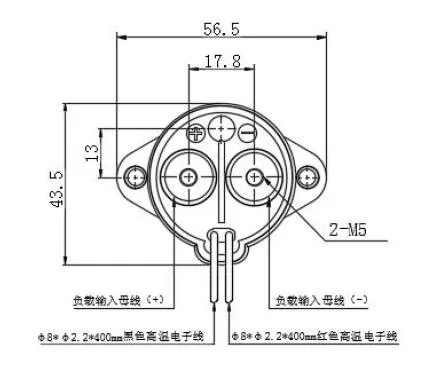

Wiring Diagram ↓ Assembling Dimension ↓
