AER6V-300Y-F 300A High Voltage Relay with extra Auxiliary Contact
DC High Current Relay
Product Overview
High current and high voltage DC contactor relays for electric vehicle applications such as battery power supply, DC power control, circuit protection, and other switch controls. Can also be used in uninterruptible power supply and other electronic control systems. Are available with polarized and non-polarized contacts to best suit electrical systems’ polarity. Coil Economizer greatly reduces coil power and heating after the contactor is energized. Once the contactor is energized, it takes minimal coil power to keep the contacts closed due to Pulse Width Modulation (PWM) reducing the average power delivered by pulsing the electrical signal.
Key Features
Why This Model Is Specified
- Contact points sealed by ceramic enclosure, and anti-arc by inert gases.
- Permanent magnetic extinguishing arc, high voltage DC cut off
- Anti-magnetic disturbances and explosion-proof
- RoHS listed
- PWM control coil, minimize the coil power consumption
- Vacuum sealed coil
- Contact points and coil double isolated
- Tiny but heavy duty
- Customized design is accepted
Who It Is For
- EV and charging equipment manufacturers switching high voltage DC
- Battery energy storage and solar system integrators
- Builders of high power DC equipment and test benches
Problems It Solves
- Breaking high voltage DC where an arc will not self extinguish at a current zero
- Isolating a battery pack quickly and repeatedly over the life of the vehicle
- Switching in confined spaces where a large DC contactor cannot be mounted
Where It Is Used
- EV and HEV new energy vehicles
- Charging stations and charging ports
- Renewable energy storage fuel cell and solar battery systems
- High power DC equipment
Specifications
Technical Data And Dimensions
300A High Voltage Relay Features
| Contact | 1NO | ||
| Rated Voltage | 12-750V | ||
| Rated Current | 300A | ||
| Contact Resistance | ≤1.5mΩ(6VDC 20A) | ||
| Contact Performance | Template high current withstand | (a)400A 10Min (b)300A 10s | |
| Max switch current | 2000A(320VDC) | ||
| Overload break | 400A 450VDC 50 times | ||
| Opposite break | 300A 200VDC 100 times | ||
| Coil | Voltage | 9-36VDC | |
| Pull-in voltage | ≤9VDC | ||
| Release voltage | ≥3VDC | ||
| Rated power | 45W(Initiated voltage) 4W(Holding voltage) | ||
| Electrical Performance | Withstand voltage | Coil | 3000VAC |
| Contact | |||
| Insulated resistance | Coil | 1000MΩ(1000VDC) | |
| Contact | |||
| Pull-in time | Max: 25ms | ||
| Releasing time | Max: 10ms | ||
| Jumping time | <3ms | ||
| Life-span | Mechanical lifetime | >200000 | |
| Electrical lifetime | 450VDC | 1000 | |
| 750VDC | 300 | ||
| Mechanical Performance | Withstand impact | Functional | 20G |
| Strength | 50G | ||
| Withstand vibration | Functional | Min20G (80~2000Hz) | |
| Strength | |||
| Weight | ≈460g | ||

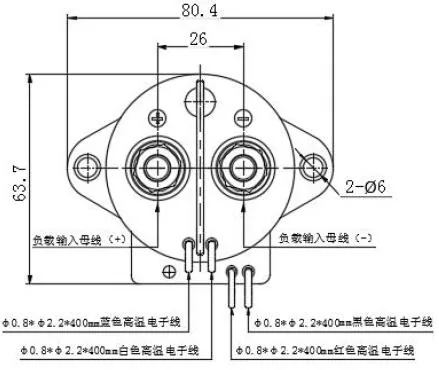

Wiring Diagram ↓ Assembling Dimension ↓
Quality And Certification
The products have been certified by CCC CE and RoHS and qualified by UL in the US and KEMA in the UK. Assembly is carried out in a dustless workshop and finished units are checked on dedicated testing equipment.
See The Factory →Customisation And Ordering
Send the model number the quantity and the coil or supply voltage you need and we will confirm the variant before you order. Drawings can be sent by email and we will come back with what is possible.
