Rod and Billet Cutting Machine

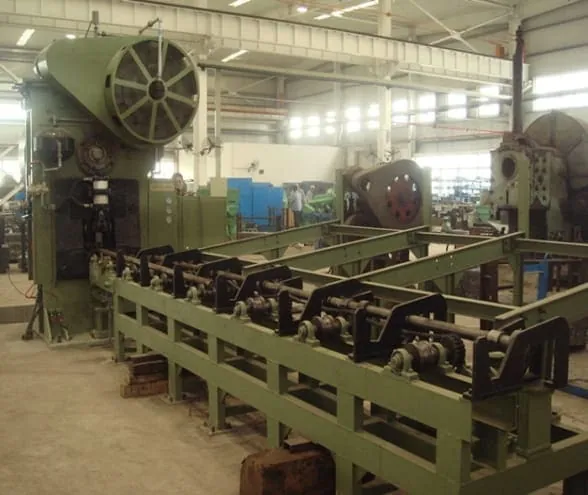

Steel Rod Billet Cutting Press

Rod and billet cutting machines shear steel bar and coil to blank length, including hydraulic high speed shear cutting and screw end point cutting.

Built by Ningbo Anchors Precision Machinery Co., Ltd. in Ningbo, China
Full manufacturer parameter table on this page
Machine video available on request
Rapid response technical team for operation and troubleshooting

Request a Quote Talk to an Engineer Email Us

Have a drawing? Send it straight to WhatsApp or email — there is no form to fill in.

Steel Rod Billet Cutting Press Specifications

Item	Unit	SP-200	SP-300	SP-400	SP-500
Pressing force	KN	2000	3000	4000	5000
Cutting frequency	Num.	50	30	40	20
Stroke length	mm	70	80	90	110
Material tensile strength	MPa	600	600	600	600
Cutting diameter	mm	25-55	25-75	30-85	30-110
Cutting length	mm	50-300	50-300	50-300	50-300
Required air pressure	MPa	0.5	0.5	0.5	0.5
Main motor power	KW	18.5	22	30	45
Machine weight	Ton	11	14.5	17.7	22.5

Steel Rod Billet Cutting Press Applications and Features

Application: The metal rod bar cutting press (metal material billet shearing machine) is a kind of cold shearing machine, which is used to cut steel bar for the closed die forging production line. With PLC control, automatic feeding, automatic cutting , automatic counting, automatic lubrication and overloading protection .

1. PLC control
2. Section slope <=3 °; weight error within 0.5%
3. High efficiency cutting
4. Safety working
5. Energy saving
6. Low noise
7. Reliable operation and easy maintenance

Features:

1. PLC control
2. Section slope <=3 °; weight error within 0.5%
3. High efficiency cutting
4. Safety working
5. Energy saving
6. Low noise
7. Reliable operation and easy maintenance

Steel Rod Billet Cutting Press Structure and Components

Steel rod billet cutting press Structure and Components-5

Other Models in Rod and Billet Cutting Machine

Same family, different size range and station count.

Precision Hydraulic Round Steel Cutting Machine

Rod and Billet Cutting Machine

Automatic Round Steel Rod Cutting Machine

Rod and Billet Cutting Machine

Hydraulic Shearing Machine

Rod and Billet Cutting Machine

A400 Self Drilling Screw End Point Cutting Machine

Rod and Billet Cutting Machine

A100 Self Drilling Screw End Point Cutting Machine

Rod and Billet Cutting Machine

Spring Lock Washer Cutting Machine

Rod and Billet Cutting Machine

All Rod and Billet Cutting Machine All Wire Processing Machinery How It Is Built

Questions and Answers

Steel Rod Billet Cutting Press FAQ

What is the Steel Rod Billet Cutting Press used for?

It belongs to the rod and billet cutting machine family. Rod and billet cutting machines shear steel bar and coil to blank length, including hydraulic high speed shear cutting and screw end point cutting. The structural description and the manufacturer parameter table on this page describe what this particular model covers.

Can I get the technical specification for my size range?

The parameter table on this page is the manufacturer table for the model range. Tell us the exact fastener diameter and length you run and we will confirm which line of the table applies.

Is this machine built by Anchors Machinery?

All equipment is built at the company works in Ningbo, Zhejiang, China, in an 18,000 square metre workshop with its own machining facilities.

Can it be supplied together with the upstream and downstream machines?

Yes. Anchors Machinery is a machine manufacturer as well as a solution provider and project contractor, so complete fastener and stamping production lines can be supplied rather than single machines only.

What support do I get after delivery?

A rapid response technical team instructs machine operation and helps solve problems that come up during production, so that machine efficiency and your output are protected after installation.

How do I request a price for this machine?

Send the part drawing or a photo plus the required size range and output per minute to [email protected] or by WhatsApp on +86 185 5689 5898. Quotations are prepared against the model and tooling configuration that suits your part.
