Rod and Billet Cutting Machine

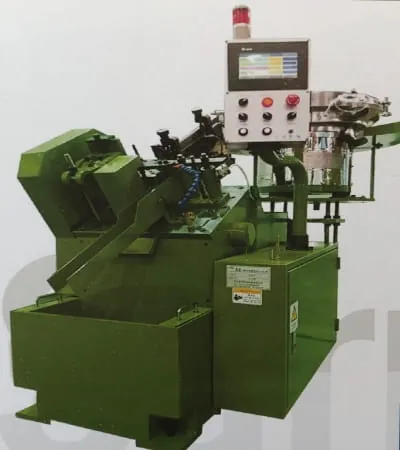

A100 Self Drilling Screw End Point Cutting Machine

Rod and billet cutting machines shear steel bar and coil to blank length, including hydraulic high speed shear cutting and screw end point cutting. The published parameter table for this machine covers model APM-A100.

Built by Ningbo Anchors Precision Machinery Co., Ltd. in Ningbo, China
Full manufacturer parameter table on this page
Machine video available on request
Rapid response technical team for operation and troubleshooting

Request a Quote Talk to an Engineer Email Us

Have a drawing? Send it straight to WhatsApp or email — there is no form to fill in.

Main Specifications:

Model	APM-A100
Appro. Dimension	17080130CM
Power	INVERTER 2.2KW,HIGH FREQUENCY INVERTER 1.5KW MOTOR 1.5KW,0.75KW
Screw diameter and length range	DIA:2.8-8MM(6#-18#),LENGTH 10-100MM
Speed	10-300 PCS PER MIN
Control method	PLC AUTOMATIC CONTROL
Detection system	TOUCH SCREEN MAN-MACHINE FAULT DETECT AND DISPLAY
Transmission type	INDEX PLUS INVERTER
Screws separate type	INDEX HIGH SPEED PRECISION SEGMENTATION
Appro. Weight	1TON

Application Scope

Automatic Self Drilling/Tapping Screw End Point Cutting Machine is used to produce mank kinds of self tapping screws end cutting process.

Salient Features of A100 Self Drilling Screw End Point Cutting Machine

1. The automatic running with plc control.

2. Wire drawing speed is fast and drawed flatten wire surface bright and top appearance.

3. Easy to operate and less power consumption.

Standard accessories of A100 Self Drilling Screw End Point Cutting Machine

1. One set of standard hand tools.

2. One set of control Panel

3. Inside Lamp

4. Feeding trays*2

5.Special spindle*1

M4*40MM High Speed Cold Heading Machine

Other Models in Rod and Billet Cutting Machine

Same family, different size range and station count.

Precision Hydraulic Round Steel Cutting Machine

Rod and Billet Cutting Machine

Automatic Round Steel Rod Cutting Machine

Rod and Billet Cutting Machine

Hydraulic Shearing Machine

Rod and Billet Cutting Machine

Steel Rod Billet Cutting Press

Rod and Billet Cutting Machine

A400 Self Drilling Screw End Point Cutting Machine

Rod and Billet Cutting Machine

Spring Lock Washer Cutting Machine

Rod and Billet Cutting Machine

All Rod and Billet Cutting Machine All Wire Processing Machinery How It Is Built

Questions and Answers

A100 Self Drilling Screw End Point Cutting Machine FAQ

What is the A100 Self Drilling Screw End Point Cutting Machine used for?

It belongs to the rod and billet cutting machine family. Rod and billet cutting machines shear steel bar and coil to blank length, including hydraulic high speed shear cutting and screw end point cutting. The structural description and the manufacturer parameter table on this page describe what this particular model covers.

Can I get the technical specification for my size range?

The parameter table on this page is the manufacturer table for the model range. Tell us the exact fastener diameter and length you run and we will confirm which line of the table applies.

Is this machine built by Anchors Machinery?

All equipment is built at the company works in Ningbo, Zhejiang, China, in an 18,000 square metre workshop with its own machining facilities.

Can it be supplied together with the upstream and downstream machines?

Yes. Anchors Machinery is a machine manufacturer as well as a solution provider and project contractor, so complete fastener and stamping production lines can be supplied rather than single machines only.

What support do I get after delivery?

A rapid response technical team instructs machine operation and helps solve problems that come up during production, so that machine efficiency and your output are protected after installation.

How do I request a price for this machine?

Send the part drawing or a photo plus the required size range and output per minute to [email protected] or by WhatsApp on +86 185 5689 5898. Quotations are prepared against the model and tooling configuration that suits your part.
