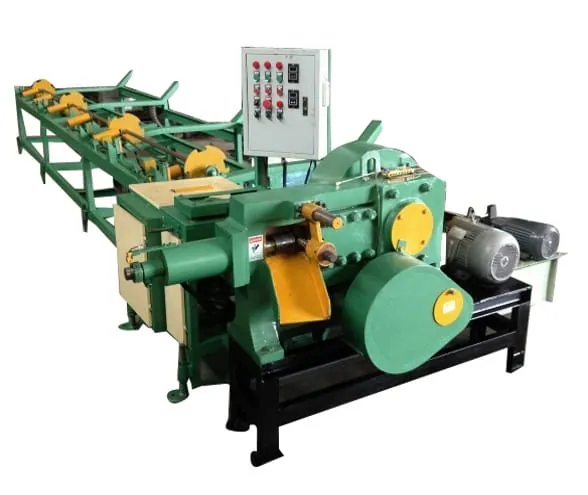

Precision Hydraulic Round Steel Cutting Machine

Precision Hydraulic Round Steel Cutting Machine Specifications

Precision Hydraulic Round Steel Cutting Machine Applications and Features

Application:Be used to cut steel round rod or bar into fix length blank pieces.

The fully automatic CNC hydraulic high-precision round steel cutting machine is a fully automatic cutting and shearing machine. After the operator set the cutter, the whole bundle of bar material is placed, and the blanking weight and bar diameter are input on the touch screen, and then the switch is turned to automatic, it can be fully automatic production. Except for loading (carrying the entire bundle of bars to the rack) and discharging (moving the cut bar), the intermediate process does not require manual operation.

The fully automatic CNC hydraulic high-precision bar cutting machine is equipped with an automatic feeding rack. The whole bundle of bar material is placed on the material rack and placed flat. The bar material will follow the slope of the material rack and be separated by the material distribution device before entering Conveying wheel, the conveying wheel conveys the bar material to a predetermined position and then stops. When the conveying wheel stops, the feeding clamp clamps the bar material, and the servo motor drives the clamp to feed the material through the screw rod and the wire rail. When the bar material extends beyond the size of the cutter to the specified size (generally 20mm to 30mm long) , The hydraulic cutting system moves, cuts the material head and sends the material head to the waste area. After the material head is cut, the reducer automatically calculates the length and makes the bar extend beyond the cutter according to the weight and bar diameter set by the operator. The length is consistent with the calculation result, the second bar is cut, the automatic weighing system is operated, and the cut bar is weighed. If it meets the weight requirements, it enters the automatic cutting program. If it does not meet, it is automatically calculated And adjust the length of the bar until it meets the requirements. The last section of each bar will be ejected by the next section of bar and enter the waste area for manual processing. In the process of automatic material cutting, the bar that does not meet the requirements enters the waste area, and the qualified products enter the area.

Fully automatic CNC hydraulic high-precision bar cutting machine includes material loading system, servo feeding system, hydraulic shearing system, weighing system (optional), sorting system, lubrication system, etc. The servo feeding system uses Taiwan servo motor and screw , Line rails, etc. to achieve feeding, using Taiwan imported hydraulic valves, seals to achieve cutting, using Valley automatic lubrication pump to lubricate the equipment. Use PLC and touch screen to make the various systems work together.

Fully automatic CNC hydraulic high-precision bar shears are suitable for cutting carbon steel and alloy structural steel bars. The head and tail of the bar should be able to enter the cutter. If the material is a coil, need straighten and then cut into bars.

Features:

1.Easy operation: this type of cutting machine is fully automatic operation. After the operator enters the weight, bar diameter or directly enters the length, in addition to replacing the cutter and loading and unloading, the intermediate process does not require human operation. When the fault occurs, it will automatically alarm and stop.

2.High cutting accuracy: verticality of cut surface <1 °, length <0.1mm.With cluth to impove the steady and performance.

3.No bar sorting required: Equipped with an automatic sorting system to separate head and tail materials from qualified products, plus high cutting accuracy, no need to sort bar stock.

4.Low labor intensity and labor saving: Because it is fully automatic operation, no manual operation is required in the intermediate process, and labor intensity is low, one person can operate more than 3 units.

5.Low noise: the hydraulic cutting system is adopted, the cutting action is stable, the noise is low, and it meets the requirements of environmental protection.

6.Low failure rate and easy maintenance: the core parts are imported from abroad, with long service life and low failure rate. There is a fault prompt function, the cause of the fault is easy to detect, and maintenance is convenient.
