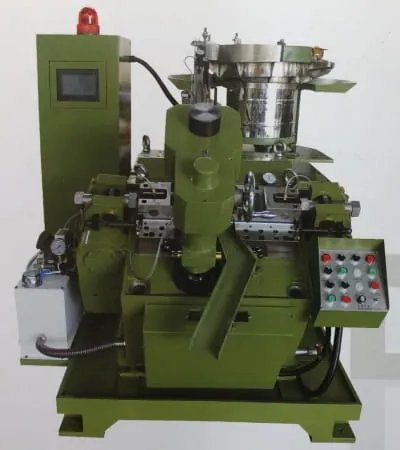

APM-200 Automatic Self Drilling Screw Forming Machine manufactured by Ningbo Anchors Precision Machinery Co., Ltd.

Self Drilling Screw Machine

APM-200 Automatic Self Drilling Screw Forming Machine

Self drilling screw equipment forms and cuts the drill point on roofing and drywall screws, matching point forming and end cutting operations to the screw diameter. The published parameter table for this machine covers model APM-200.

  • Built by Ningbo Anchors Precision Machinery Co., Ltd. in Ningbo, China
  • Full manufacturer parameter table on this page
  • Machine video available on request
  • Rapid response technical team for operation and troubleshooting
Request a Quote Talk to an Engineer Email Us

Have a drawing? Send it straight to WhatsApp or email — there is no form to fill in.

Main Specifications:

Model APM-200
Appro. Dimension 190*150*190CM
Power INVERTER 11KW,MOTOR 7.5KW
Screw diameter and length range DIA:2.8-8MM(6#-18#),LENGTH 10-200MM
Speed SINGLE CLICK 100-500 PCS PER MIN,DOUBLE CLICK 40-150 PCS PER MIN
Control method PLC AUTOMATIC CONTROL
Detection system TOUCH SCREEN MAN-MACHINE FAULT DETECT AND DISPLAY
Transmission type MAC SOLENOID VALVE PLUS COMPRESSOR CLUTCH(DRIVE PLUS BRAKE)
Screws separate type INDEX HIGH SPEED PRECISION SEGMENTATION
Appro. Weight 2.3TON

Application Scope

Automatic Self Drilling Screw End Point Forming Machine is used to produce mank kinds of self drilling screws end forging process.

Salient Features of APM-200 Automatic Self Drilling Screw Forming Machine

1. The automatic running with plc control.

2. Wire drawing speed is fast and drawed flatten wire surface bright and top appearance.

3. Easy to operate and less power consumption.

Standard accessories of APM-200 Automatic Self Drilling Screw Forming Machine

1. One set of standard hand tools.

2. One set of control Panel

3. Inside Lamp

4. Feeding trays*2

5.Special spindle*1

M6*50MM High Speed Cold Heading Machine
