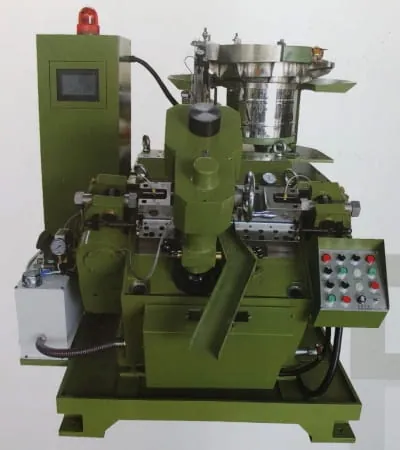

APM-125 Self Drilling Screw Forming Machine manufactured by Ningbo Anchors Precision Machinery Co., Ltd.

Self Drilling Screw Machine

APM-125 Self Drilling Screw Forming Machine

Self drilling screw equipment forms and cuts the drill point on roofing and drywall screws, matching point forming and end cutting operations to the screw diameter. The published parameter table for this machine covers model APM-125.

  • Built by Ningbo Anchors Precision Machinery Co., Ltd. in Ningbo, China
  • Full manufacturer parameter table on this page
  • Machine video available on request
  • Rapid response technical team for operation and troubleshooting
Request a Quote Talk to an Engineer Email Us

Have a drawing? Send it straight to WhatsApp or email — there is no form to fill in.

Main Specifications:

Model APM-125
Appro. Dimension 190*140*160CM
Power INVERTER 7.5KW,MOTOR 5.5KW
Screw diameter and length range DIA:2.8-4.9MM(6#-12#),LENGTH 10-125MM
Speed SINGLE CLICK 100-500 PCS PER MIN
Control method PLC AUTOMATIC CONTROL
Detection system TOUCH SCREEN MAN-MACHINE FAULT DETECT AND DISPLAY
Transmission type MAC SOLENOID VALVE PLUS COMPRESSOR CLUTCH(DRIVE PLUS BRAKE)
Screws separate type GENEVA MACHINERY
Appro. Weight 2.3TON

Application Scope

Automatic Self Drilling Screw End Point Cutting Machine is used to produce mank kinds of self drilling screws end forming process.

Salient Features of APM-125 Self Drilling Screw Forming Machine

2. Wire drawing speed is fast and drawed flatten wire surface bright and top appearance.

3. Easy to operate and less power consumption.

Standard accessories of APM-125 Self Drilling Screw Forming Machine

1. One set of standard hand tools.

2. One set of control Panel

3. Inside Lamp

4. Feeding trays*2

5.Special spindle*1

M5*50MM High Speed Cold Heading Machine

Related Products

Other Models in Self Drilling Screw Machine

Same family, different size range and station count.

APM-200 Automatic Self Drilling Screw Forming Machine manufactured by Anchors Machinery

APM-200 Automatic Self Drilling Screw Forming Machine

Self Drilling Screw Machine

APM-300 Automatic Self Drilling Screw Forming Machine manufactured by Anchors Machinery

APM-300 Automatic Self Drilling Screw Forming Machine

Self Drilling Screw Machine

SELF-DRILLING SCREW END FORMING MACHINE manufactured by Anchors Machinery

SELF-DRILLING SCREW END FORMING MACHINE

Self Drilling Screw Machine

Stud Bolts Threaded Rod Double Ends Nuts Assembly Machine manufactured by Anchors Machinery

Stud Bolts Threaded Rod Double Ends Nuts Assembly Machine

Fastener Assembly Machine

Four Stations Bolt Forging Machine manufactured by Anchors Machinery

Four Stations Bolt Forging Machine

Multi Station Bolt Forming Machine

Three Stations Bolt Forging Machine manufactured by Anchors Machinery

Three Stations Bolt Forging Machine

Multi Station Bolt Forming Machine

Elevator Sleeve Anchor Bolt Nut Sleeve Washer Automatic Assembly Machine manufactured by Anchors Machinery

Elevator Sleeve Anchor Bolt Nut Sleeve Washer Automatic Assembly Machine

Fastener Assembly Machine

Windows Metal Frame Anchor Automatic Assemble Machine manufactured by Anchors Machinery

Windows Metal Frame Anchor Automatic Assemble Machine

Anchor Making Machine

All Self Drilling Screw Machine All Fastener Making Machinery How It Is Built

Questions and Answers

APM-125 Self Drilling Screw Forming Machine FAQ

What is the APM-125 Self Drilling Screw Forming Machine used for?
It belongs to the self drilling screw machine family. Self drilling screw equipment forms and cuts the drill point on roofing and drywall screws, matching point forming and end cutting operations to the screw diameter. The structural description and the manufacturer parameter table on this page describe what this particular model covers.
Can I get the technical specification for my size range?
The parameter table on this page is the manufacturer table for the model range. Tell us the exact fastener diameter and length you run and we will confirm which line of the table applies.
Is this machine built by Anchors Machinery?
All equipment is built at the company works in Ningbo, Zhejiang, China, in an 18,000 square metre workshop with its own machining facilities.
Can it be supplied together with the upstream and downstream machines?
Yes. Anchors Machinery is a machine manufacturer as well as a solution provider and project contractor, so complete fastener and stamping production lines can be supplied rather than single machines only.
What support do I get after delivery?
A rapid response technical team instructs machine operation and helps solve problems that come up during production, so that machine efficiency and your output are protected after installation.
How do I request a price for this machine?
Send the part drawing or a photo plus the required size range and output per minute to [email protected] or by WhatsApp on +86 185 5689 5898. Quotations are prepared against the model and tooling configuration that suits your part.
