Shield Anchors
Yellow zinc plated 4 pcs Heavy duty shield anchor
Yellow zinc plated 4 pcs Heavy duty shield anchors Yellow zinc plated 4 pcs Heavy duty shield anchors detail Yellow zinc plated 4 pcs Heavy duty shield…
- Productyellow zinc plated 4 pcs Heavy duty shield anchor
- KeywordHeavy duty shield anchor
- Structuresleeve+nut+taper
- MaterialQ235, 45#, AISI304(A2-70), AISI316(A4-80) etc
- SizeM6-M24 or non-standard as request & design
- Grade4.8, 6.8, 8.8, 10.9, 12.9
- Surfaceplain, galvanized,bule white, YZP etc.
- UsageMetal structures, profiles, floor, bearing plates, brackets, railings, walls,machines, beams, etc
- Built by Ningbo Anchors Precision Machinery Co., Ltd. in Ningbo, China
- More than twenty years experience in cold and hot forging and metal stamping equipment
- Rapid response technical team for operation guidance and production support

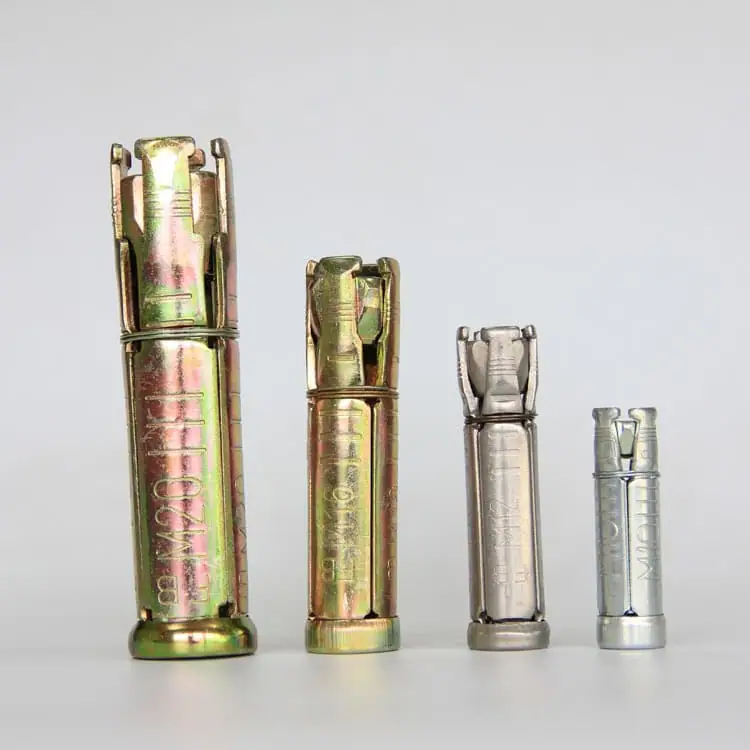

Yellow zinc plated 4 pcs Heavy duty shield anchor
| Product | yellow zinc plated 4 pcs Heavy duty shield anchor |
| Keyword | Heavy duty shield anchor |
| Structure | sleeve+nut+taper |
| Material | Q235, 45#, AISI304(A2-70), AISI316(A4-80) etc |
| Size | M6-M24 or non-standard as request & design |
| Grade | 4.8, 6.8, 8.8, 10.9, 12.9 |
| Surface | plain, galvanized,bule white, YZP etc. |
| Usage | Metal structures, profiles, floor, bearing plates, brackets, railings, walls,machines, beams, etc |
| Type | wedge anchor,sleeve anchor flange nut,3pcs shield anchor,4pcs shield anchor,drop in anchors,metal frame anchors,tie waire anchors. |
| Sample | Free sample can be sent for test |
| Remark | OEM/ODM is available according to customer’s drawing and samples. |

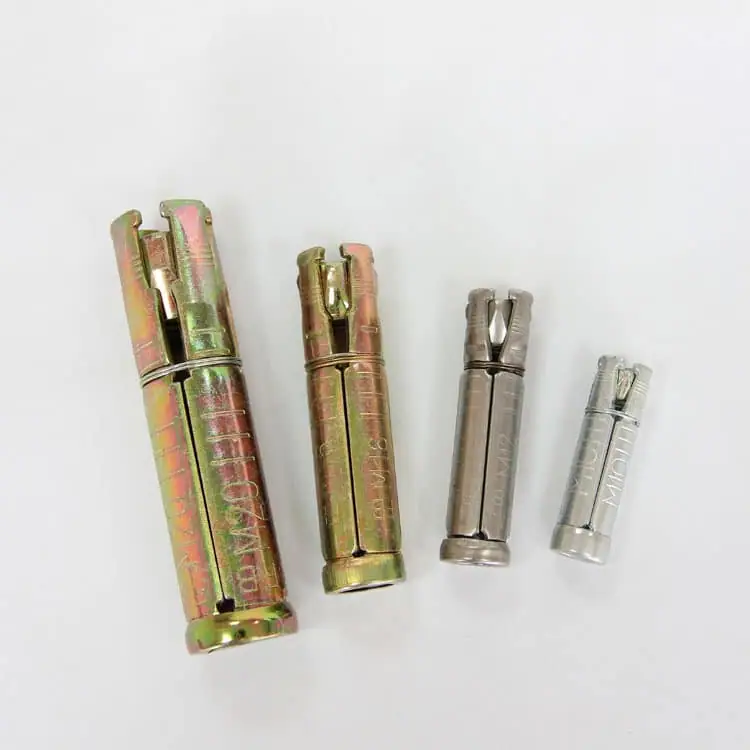

Yellow zinc plated 4 pcs Heavy duty shield anchors
Yellow zinc plated 4 pcs Heavy duty shield anchors detail
Yellow zinc plated 4 pcs Heavy duty shield anchor detail
Metric sizes
| Item No | Outside Dia ∅ |
| M6(1/4)×10×50 | ∅10×50 |
| M8(5/16)×12×55 | ∅12×55 |
| M10(3/8)×15×70 | ∅15×70 |
| M12(1/2)×18×80 | ∅18×80 |
| M16(5/8)×22×90 | ∅22×90 |
Packing and shipment
Yellow zinc plated 4 pcs Heavy duty shield anchor detail packing and shipment

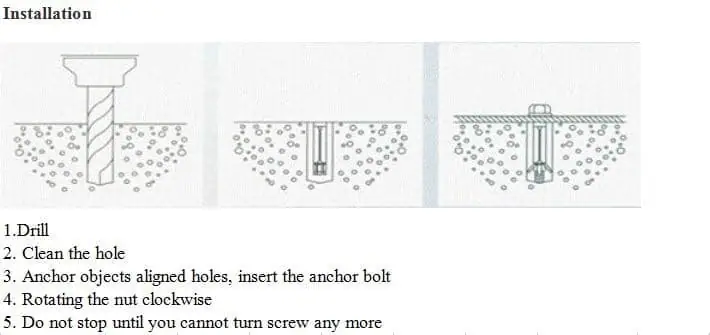

Install method:
Yellow zinc plated 4 pcs Heavy duty shield anchor install method
