Metal Insulation Anchors
Galvanized Metal Insulation Anchor Insulation Pin
Metal Insulation Fixings for fixing insulation boards. Material: Pre-Galvanized Steel, available with Stainless Steel ·Soft and pressure-resistant insulating…
- Built by Ningbo Anchors Precision Machinery Co., Ltd. in Ningbo, China
- More than twenty years experience in cold and hot forging and metal stamping equipment
- Rapid response technical team for operation guidance and production support

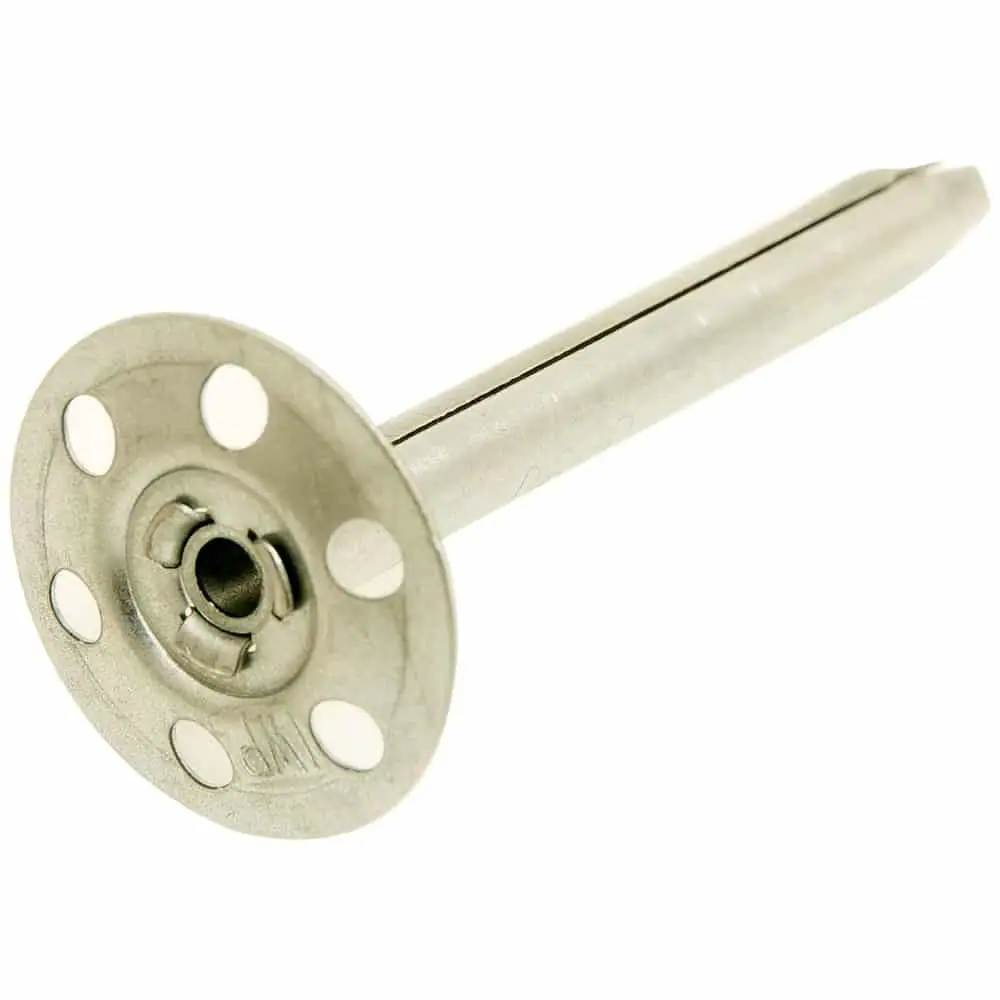

Galvanized Metal Insulation Anchor Insulation Pin
Metal Insulation Fixings for fixing insulation boards.
Material: Pre-Galvanized Steel, available with Stainless Steel
Finish: Galvanized
Approval and Testing Report
- CE Approval
- Reaction to Fire test: A1
- Material Inspection certification
- Salt Spray Test
Suitable for:
·Concrete
·Natural stone with dense structure
·Solid brick
·Solid sand-lime brick
·Solid block made from lightweight concrete
·Aerated concrete
·Vertically perforated brick
·Perforated sand-lime brick
For fixing for:
·Soft and pressure-resistant insulating material, e.g.
·Glass wool
·Rock wool
·Polystyrene
·PU panels
·Foam glass
·Lighting building boards made of wood wool
·Coir matting
·Cork boards
DESCRIPTION
·Zinc plated or 1.4016 stainless steel metal insulation support (inbox)
·Stable, Proven edged connection between shank and plate.
·When driven in, the spring steel expands itself and grips against the hole wall over its entire shank length.
·1.4016 (inbox) stainless steel versions for use in damp conditions
Advantages/benefits
·Quick and simple hammerset installation saves work.
·No additional screws and nails
Galvanized Metal Insulation Anchor Insulation Pins
Technical Data
| Size | L | D | A | T | Packaging | Weight |
| 8 × 50 | 50 | 8 | 35 | 0.7 | 50 | 10.2 |
| 8 × 60 | 60 | 8 | 35 | 0.7 | 50 | 11.2 |
| 8 × 80 | 80 | 8 | 35 | 0.7 | 50 | 13.7 |
| 8 × 90 | 90 | 8 | 35 | 0.7 | 50 | 14.8 |
| 8 × 110 | 110 | 8 | 35 | 0.7 | 50 | 17.2 |
| 8 × 140 | 140 | 8 | 35 | 0.7 | 50 | 20.8 |
| 8 × 170 | 170 | 8 | 35 | 0.7 |
50 |
24.4 |
| 8 × 200 | 200 | 8 | 35 | 0.7 | 50 | 28 |
| 8 × 230 | 230 | 8 | 35 | 0.7 | 50 | 31.8 |
| 8 × 250 | 250 | 8 | 35 | 0.7 | 50 | 33.4 |
| 8 × 300 | 300 | 8 | 35 | 0.7 | 50 |
40 |
Packing andh shipment
Galvanized Metal Insulation Anchor Insulation Pin packing and shipment
