Express Nail Anchors
Express Nail Anchor With Zinc Plated
The Express Nail Anchor is ideal for economical, quick, repetitive fixing applications. Ideal for use on frames, battens, fencing etc. Simply drill hole and…
- Built by Ningbo Anchors Precision Machinery Co., Ltd. in Ningbo, China
- More than twenty years experience in cold and hot forging and metal stamping equipment
- Rapid response technical team for operation guidance and production support
Express Nail Anchor With Zinc Plated
The Express Nail Anchor is ideal for economical, quick, repetitive fixing applications. Ideal for use on frames, battens, fencing etc. Simply drill hole and hammer fixing hole.
Material: Spring Steel C1050
Finish: Zinc Plated, Cr3+, Min 5 um
Approval and Testing Report
- CE Approval
- The Thickness of Zinc Testing
- Material Inspection certification
- Flexibility Testing and Pressing Testing
- HRC
Technical Data
| Size | D | D2 | L | B | Packaging | Weight |
| 6 × 30 | 6.7 | 6 | 30 | 0.8 | 200 | 3 |
| 6 × 40 | 6.7 | 6 | 40 | 0.8 | 200 | 4 |
| 6 × 50 | 6.7 | 6 | 50 | 0.8 | 200 | 5 |
| 6 × 60 | 6.7 | 6 | 60 | 0.8 | 200 | 6 |
| 6 × 80 | 6.7 | 6 | 80 | 0.8 | 200 | 8 |
| 6 × 100 | 6.7 | 6 | 100 | 0.8 | 200 | 10 |
| 8 × 70 | 8.7 | 8 | 70 | 1 | 100 | 12 |
| 8 × 90 | 8.7 | 8 | 90 | 1 | 100 | 15 |
| 8 × 110 | 8.7 | 8 | 110 | 1 | 100 | 18 |
| 8 × 130 | 8.7 | 8 | 130 | 1 | 100 | 21 |
| 8 × 150 | 8.7 | 8 | 150 | 1 | 100 | 24 |
| 8 × 180 | 8.7 | 8 | 180 | 1 | 100 |
27 |

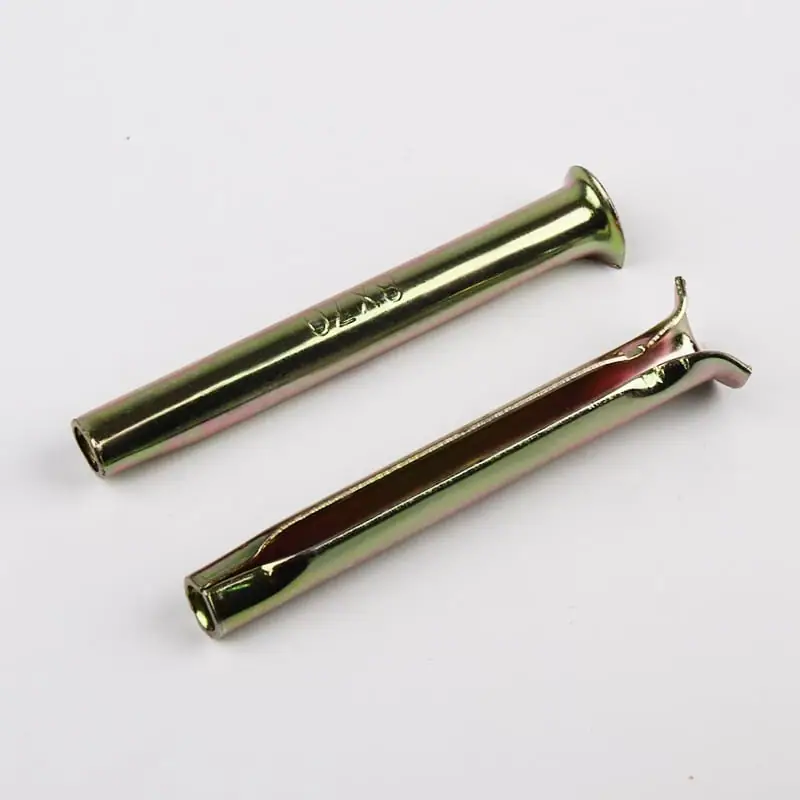

Express Nails Anchor With Zinc Plated
Express Nails Anchors With Zinc Plated
Packing andh shipment
Express Nail Anchor With Zinc Plated packing and shipment

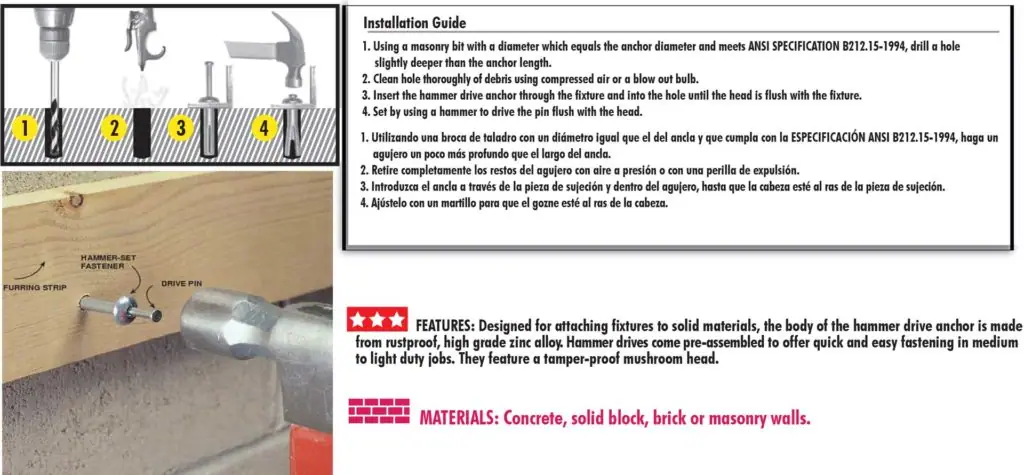

Install method
Express Nail Anchor With Zinc Plated install method
