Stainless Steel Chemical Anchor Studs
Chemical anchor can be used for the anchoring of concrete and external wall structural parts. The anchoring method is adhesive type. Corresponding hoses are…
- Product NameStainless Steel Chemical Anchor
- MaterialSS201/SS304/SS304L/SS316Letc.
- SizeM8 – M30
- SurfaceBright
- Packaging DetailsCartons + Plywood cases Also can be packed as clients’ requirements.
- DeliveryWithin 15 days
- OEM/ODMAvailable
- SampleAvailable, 3-5 days after receiving payment
- Built by Ningbo Anchors Precision Machinery Co., Ltd. in Ningbo, China
- More than twenty years experience in cold and hot forging and metal stamping equipment
- Rapid response technical team for operation guidance and production support
Stainless Steel Chemical Anchor Studs
Chemical anchor can be used for the anchoring of concrete and external wall structural parts. The anchoring method is adhesive type. Corresponding hoses are provided.
| Product Name | Stainless Steel Chemical Anchor |
| Material | SS201/SS304/SS304L/SS316Letc. |
| Size | M8 – M30 |
| Surface | Bright |
| Packaging Details | Cartons + Plywood cases
Also can be packed as clients’ requirements. |
| Delivery | Within 15 days |
| OEM/ODM | Available |
| Sample | Available, 3-5 days after receiving payment |
Technical parameters(mm):
|
Product model |
Drilling diameter |
Drilling depth |
Anchorage thickness(max) |
Substrate thickness(min) |
Screw length |
|
M8×110 |
10 |
80 |
15 |
140 |
110 |
|
M10×130 |
12 |
90 |
20 |
160 |
130 |
|
M12×160 |
14 |
110 |
25 |
210 |
160 |
|
M16×190 |
18 |
125 |
35 |
210 |
190 |
|
M20×260 |
25 |
170 |
65 |
340 |
260 |
|
M24×300 |
28 |
210 |
65 |
370 |
300 |
|
M30×380 |
35 |
270 |
70 |
540 |
380 |

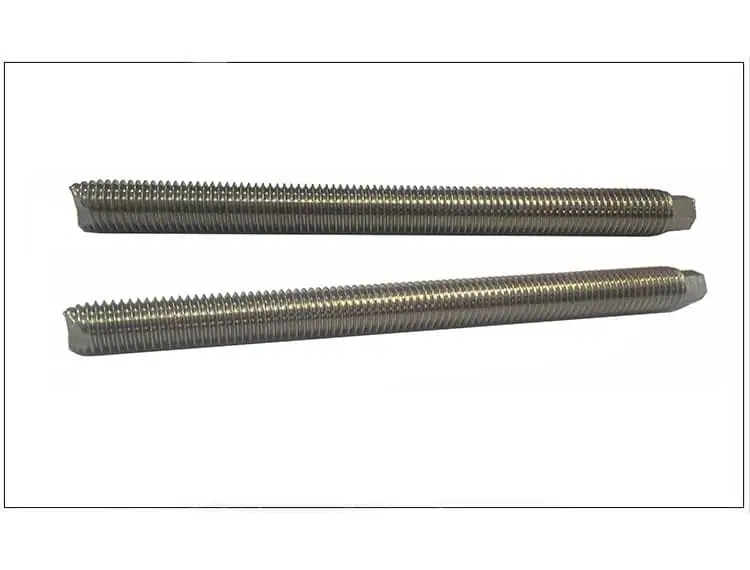

Stainless Steel Chemical Anchors
Stainless Steel Chemical Stud Anchors
Chemical reaction time:
|
Substrate temperature |
Hardening time |
|
-5℃—0℃ |
5h |
|
0℃—10℃ |
1h |
|
10℃—20℃ |
30min |
|
>20℃ |
20min |
Operating:
1. Use straight hole drills to drill holes of corresponding diameter and depth;
2. Use the soot blower to sweep ash more than 2 times;
3. Use a brush to clean hole dust more than 2 times;
4. Use the soot blower again to sweep ash until the hole has no dust overflow;
5. Put in the medicament tube;
6. Use a torque drill to screw in a high-strength chemical anchor to complete the anchoring.
P.s. Electric hammer, drills, soot blowers, brush, torque drills and mounting connector will be used during the operation. Jiraw is equipped with a brush and mounting connector as standard. Soot blowers are presented in proportion to the quantity. Others are purchased on demand.

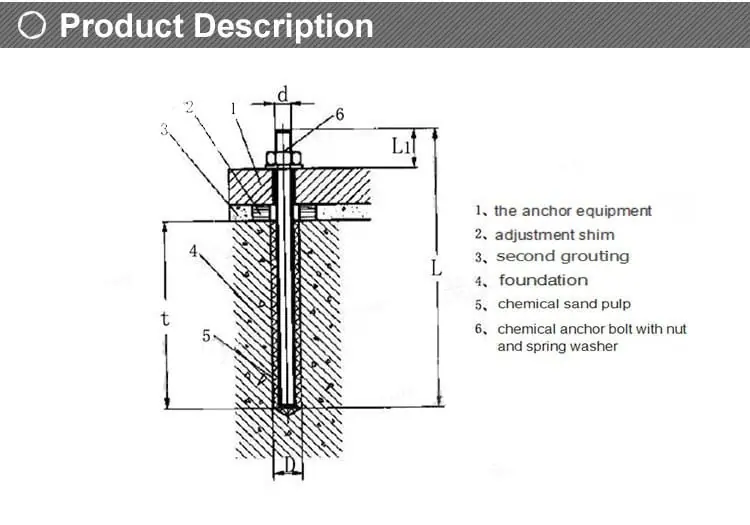

Stainless Steel Chemical Anchor Studs structure and components
Packing and shipment
Stainless Steel Chemical Anchor Studs packing and shipment

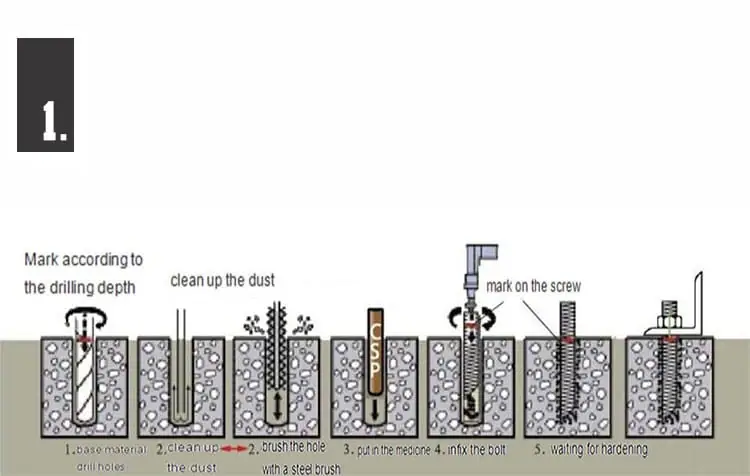

Install method:
Stainless Steel Chemical Anchor Studs install method
