High Speed Press
KDS series double guide-pillars high speed precision press
· Widely used in stamping and forming of electronics, communication, computers, household appliances, furniture, performance tools (automobiles, motorcycles…
- Built by Ningbo Anchors Precision Machinery Co., Ltd. in Ningbo, China
- More than twenty years experience in cold and hot forging and metal stamping equipment
- Rapid response technical team for operation guidance and production support
Watch Machine Video
KDS series double guide-pillars high speed precision press
Features
· Widely used in stamping and forming of electronics, communication, computers, household appliances, furniture, performance tools (automobiles, motorcycles, bicycles), hardware parts, etc.
· Straight wall integrated frame for precision continuous die stamping.
·Without the opening throat disadvantage of C-type punching frame which can save mold maintenance costs.
· High-rigidity frame, the guide rail is on the center line of the punch and the support stroke is long, which ensures long-term dynamic stability and prolongs the life of the mold.
·The bottom area of the punch is 15~25% larger than the C-type punch, allowing the station numbers of mold projects to increase and the value added processing.
·High-torque wet brake clutch for long life and low maintenance cost; no pollution, low noise, and environmental protection. High security,
·High-affinity, versatile electronic electronic control system.
· Can be used with a variety of automation equipment, easy to operate.
·Electric punch adjustment device: This adjustment device uses a thin brake motor and operates with a button. Its advantages are accurate positioning, stable mechanism, and rapid adjustment.
·Easy punch adjustment device: Simple and reliable manual mold height adjustment equipment with 0.1mm indicator.
·Electric grease pump: automatic timing centralized lubrication pump and fault detection system to ensure smooth operation.
· Highly rigid body, small deformation of the fuselage, and greatly improved tool life.
·Low noise, low vibration, and low cutting noise.
·The number of strokes is adjustable.
·Hydraulic overload protection device, overload automatic emergency stop, protect punch and mold safety.
· Strong left and right eccentric load.
·The fixed-lock six-sided long guide has high precision.
·Human machine interface, easy to operate.
Specifications of KDS series double guide-pillars high speed precision press
| Item | Unit | KDS-35B | KDS-35B |
|---|---|---|---|
| Model | Unit | H型 | S型 |
| Capacity | Ton | 35 | 35 |
| Pated tonnage point | mm | 1.2 | 1.2 |
| Pated tonnage point | mm | 30 | 50 |
| Die Height | s.p.m | 150-500 | 150-380 |
| Stroke per minute | mm | 260 | 250 |
| Slide adjustment | mm | 50 | 50 |
| Slide area | mm | 600 × 390 ×100 | 600 × 390 ×100 |
| Bolster area | mm | 320 × 250 | 320 × 250 |
| Air pressure | Kg/m² | 6 | 6 |
| Main motor | kW | VS3.7×4 | VS3.7×4 |
| Presses dimension | Ton | 4 | 4 |
| Presses weight | mm | 1300×1300 ×2170 | 1300×1300 ×2170 |
| Presses precision | GB/JIS | GB/JIS |

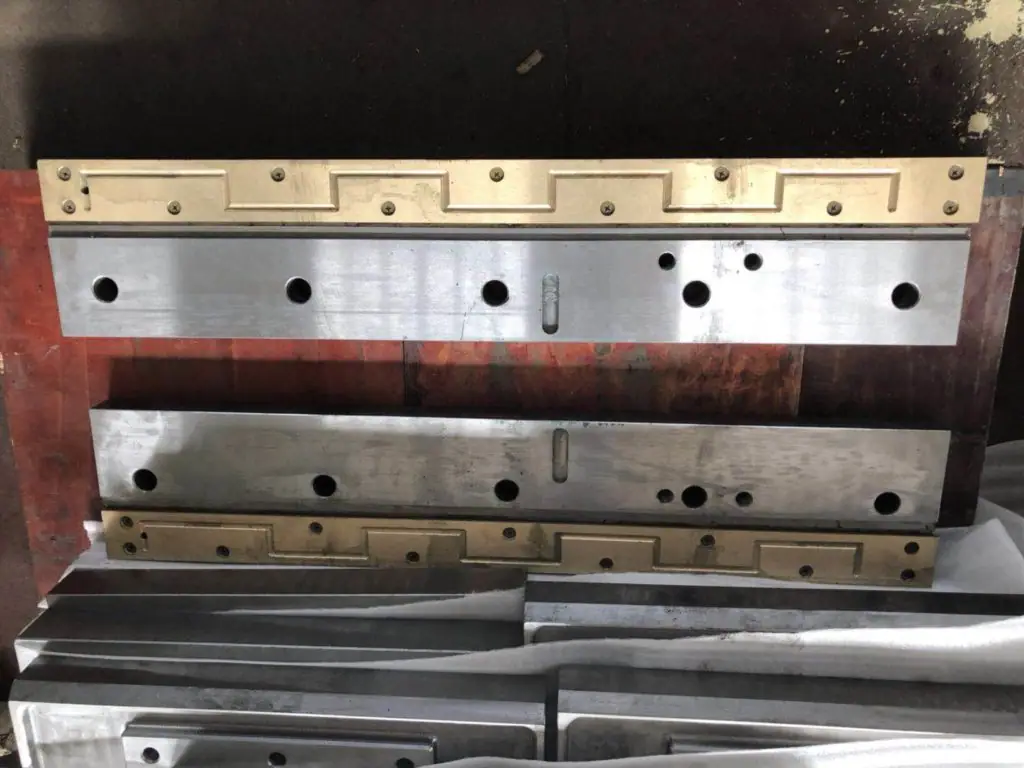

Copper anti wear slider of KDS series double guide-pillars high speed precision press
Top quality copper anti wear sleeve of KDS series double guide-pillars high speed precision press
Delta inverter of KDS series double guide-pillars high speed precision press
OMPI clutch used on KDS series double guide-pillars high speed precision press
Dorna mitusbihsi chint famous brands electric components used one the stamping press
Cnc automatic strip feeder with touch screen of chinese and english language.
Related Machines
More From High Speed Press
APB series high speed punching press machine
APG series double crank high-speed stamping press machine
APH Series Enclosed type high speed punch stamping machine
AW11Y Series Hydraulic Guillotine Shearing Machine
AW12Y Series Hydraulic Swing Beam Shearing machine
AW31 Series 125T-1600T Straight-side Single Point Press
AW36 Series 250T-1600T Straight-side Two Points Press
AW67K Series CNC Hydraulic Press Brake Bending MachineQuestions About This Machine
Where Is This Machine Made
It is manufactured by Ningbo Anchors Precision Machinery Co., Ltd. in Ningbo, Zhejiang, China, in our own 18,000 square meters workshop with advanced machining equipment.
What Components Are Used In The Machine
We use the world's advanced technology and well-known brands components to ensure high precision and long working life with reliable performance.
Do You Provide Operator Training
Yes. Our professional rapid response technical team instructs machine operation and helps solve problems occurring during production.
Which Countries Do You Export To
Our equipment has been sold to customers all over the world, including Mexico, India, Turkey, Vietnam, Malaysia and South Africa, and many domestic forging and stamping manufacturers in China also use our machines.
How Do I Get A Quotation
Send us your requirement by WhatsApp on +86 185 5689 5898 or email [email protected]. Tell us the fastener or part you want to produce, the size range and the output you need, and we will advise which machine suits.
Tell Us What You Need To Produce
Send your part drawing, size range and target output and our engineers will advise which machine suits your production.
