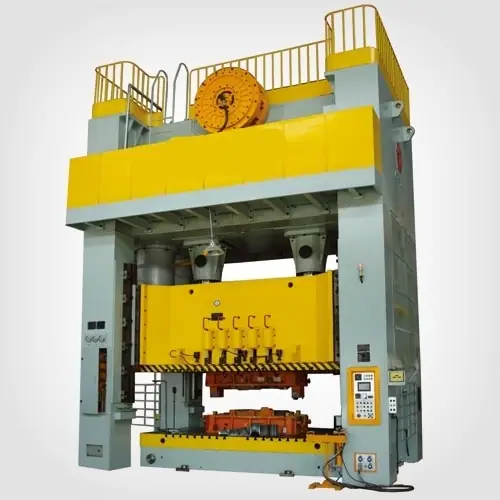

AW36 Series 250T-1600T Straight-side Two Points Press

The straight-side two points press utilizes a dry type clutch and brake, a steel welded framework with cross beam and column. Through taut bolts, the base is…

Request A Quote Email Us Talk To An Engineer

Built by Ningbo Anchors Precision Machinery Co., Ltd. in Ningbo, China
More than twenty years experience in cold and hot forging and metal stamping equipment
Rapid response technical team for operation guidance and production support

Category: Bush Cutting Machine · CNC Turret Punch Machine · High Precision Press · High Speed Press

Specifications of AW36 Series 250T-1600T Straight-side Two Points Press

The straight-side two points press utilizes a dry type clutch and brake, a steel welded framework with cross beam and column. Through taut bolts, the base is tightened and combined into an integral body. Due to herringbone gear transmission, this machine generates low noise and working impact. The slide moves with the eight sided orthogonal guide rail or four sided guide rail reclining at 45 degree. If equipped with the movable worktable, the product offers higher working efficiency. This press is suitable for applying in heavy tonnage die tooling with different precision in blanking, piercing, bending, forming for single or progressive application. Its working capacity ranges from 250ton to 1600ton. This machine is commonly used in the manufacture of auto parts

Parameter		Unit	AW36- 250	AW36- 300	AW36- 400
Nominal Capacity		KN	2500	3000	4000
Nominal pressure stroke		mm	13	13	13
Slide Stroke		mm	400	400	400
Strokes Per Minute		spm	16	16	16
Max Die Set Height		mm	650	720	770
Die Height Adjustment		mm	315	400	400
Bolster Size	L×R	mm	2600	2800	2800
	F×B	mm	1300	1600	1600
Slide Bottom Size	L×R	mm	2600	2800	2800
	F×B	mm	1300	1600	1600
Side Knockout Rod	Structure		rigidity	rigidity	rigidity
	Knockout pressure	KN	100	150	150
Cushion	Clamping pressure	KN	510	600	600
	Withdraw pressure	KN	510	600	600
	Quantity	PC	1	1	1
	Stroke	mm	200	200	200
Overall Dimensions	Height	mm	6960	7000	7000
	L×R	mm	4760	5100	5100
	F×B	mm	4200	4000	4000
Motor Power		KW	37	37	45
Weight		T	75	90	104

Parameter		Unit	AW36- 500	AW36- 630	AW36- 800
Nominal Capacity		KN	5000	6300	8000
Nominal pressure stroke		mm	13	13	13
Slide Stroke		mm	400	500	500
Strokes Per Minute		spm	16	14	10
Max Die Set Height		mm	650	1100	990
Die Height Adjustment		mm	400	500	400
Bolster Size	L×R	mm	2800	3500	3640
	F×B	mm	1600	1800	1800
Slide Bottom Size	L×R	mm	2800	3500	3640
	F×B	mm	1600	1800	1800
Side Knockout Rod	Structure		rigidity	rigidity	rigidity
	Knockout pressure	KN	150	150	150
Cushion	Clamping pressure	KN	600	1000	1000
	Withdraw pressure	KN	600	1000	1000
	Quantity	PC	1	1	1
	Stroke	mm	200	250	250
Overall Dimensions	Height	mm	7400	8000	8500
	L×R	mm	5100	6200	6800
	F×B	mm	4000	4370	4600
Motor Power		KW	75	90	110
Weight		T	142	180	210

Parameter		Unit	AW36-1000	AW36-1250	AW36-1600
Nominal Capacity		KN	10000	12500	16000
Nominal pressure stroke		mm	13	13	13
Slide Stroke		mm	500	600	500
Strokes Per Minute		spm	10	12	10
Max Die Set Height		mm	1000	1300	950
Die Height Adjustment		mm	400	500	400
Bolster Size	L×R	mm	4000	4000	5000
	F×B	mm	2000	2000	2000
Slide Bottom Size	L×R	mm	4000	4000	5000
	F×B	mm	2000	2000	2000
Side Knockout Rod	Structure		rigidity	rigidity	air
	Knockout pressure	KN	150	150	100
Cushion	Clamping pressure	KN	1200	1500	1500
	Withdraw pressure	KN	1200	1500	1500
	Quantity	PC	1	1	1
	Stroke	mm	250	250	250
Overall Dimensions	Height	mm	9000	9900	10000
	L×R	mm	7500	8500	8500
	F×B	mm	5300	5600	5600
Motor Power		KW	110	132	132
Weight		T	255	320	480
