Hit Anchors
Hit Anchor Bolt , Steel Nail Strike Anchor,Hammer Drive Anchor
The inner nail Central and carbon steel heat treatment is made with a flange only refund the mother, this product is suitable for installation, construction…
- NameStrike Anchor / Hammer Drive Anchor / Metal Hit Anchor
- Place ofOriginCixi, Zhejiang,
- ChinaSizeM6 M8 M10 M12 M16 M20 or non-standard as request&design
- Length45mm-190mm or non-standard as request&design
- Grade4.6 – 43.6KNS.
- StandardsDIN, ANSI,ASTM, JIS, GB,etc
- MaterialSteel, Carbon Steel ,Stainless Steel,etc
- SurfaceZinc Plated/Hot Dipped/Mechanical Galvanising; Yellow/ Blue and White etc
- Built by Ningbo Anchors Precision Machinery Co., Ltd. in Ningbo, China
- More than twenty years experience in cold and hot forging and metal stamping equipment
- Rapid response technical team for operation guidance and production support

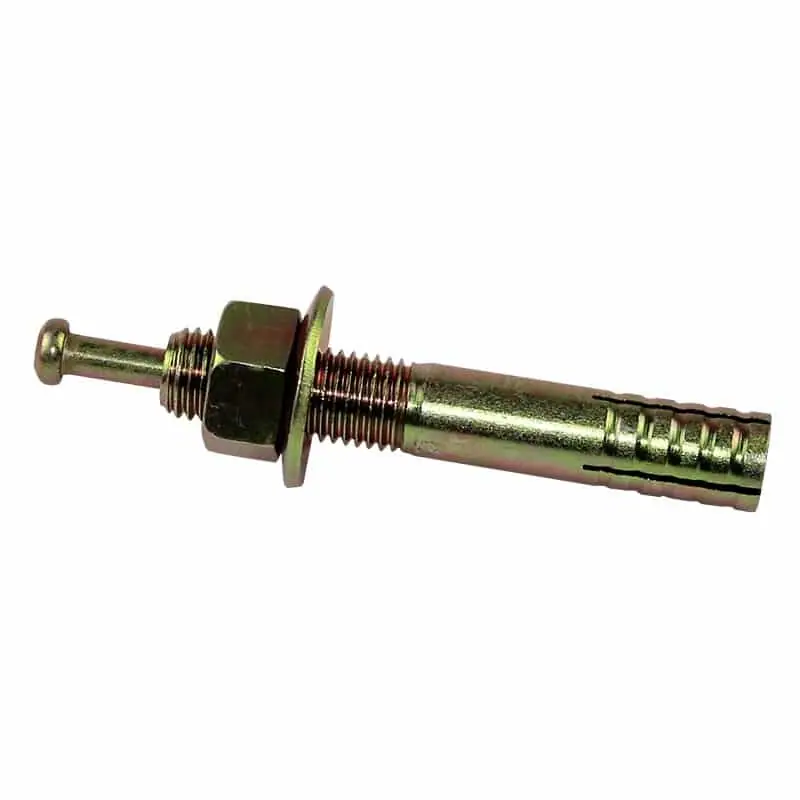

Hit Anchor Bolt , Steel Nail Strike Anchor,Hammer Drive Anchor
Features:The inner nail Central and carbon steel heat treatment is made with a flange only refund the mother, this product is suitable for installation, construction, heating and cooling, billboard installation, fixed stadium seats, such as machinery and equipment fixed appliances fixed. This product is the easiest type of installation, rapid expansion of the gecko, for no accurate drilling depth, specifically according to the nut and the body tube up and down adjustment.
| Name | Strike Anchor / Hammer Drive Anchor / Metal Hit Anchor |
| Place ofOrigin | Cixi, Zhejiang, |
| ChinaSize | M6 M8 M10 M12 M16 M20 or non-standard as request&design |
| Length | 45mm-190mm or non-standard as request&design |
| Grade | 4.6 – 43.6KNS. |
| Standards | DIN, ANSI,ASTM, JIS, GB,etc |
| Material | Steel, Carbon Steel ,Stainless Steel,etc |
| Surface | Zinc Plated/Hot Dipped/Mechanical Galvanising; Yellow/ Blue and White etc |
| Thread | Metric,UNC,UNF,BSW,RD |
| Payment | L/C or T/T (30% in advance and 70% against the copy of BL) |
| Non-standards | OEM is available if you provide a drawing or sample |
| Samples | Samples are free |
| Usage | Door&Window, Support Frame, Machine, Pipe Line, Extemal Wall,
Fire Control Spray System Grid, etc |
Base application:Door&Window,Support Frame,Machine fixing,Pipe Line fixing,Fire Control Spray System Grid fixing,Extemal Wall
The strike anchor is a fast & easy to use expansion anchor,no precise hole depth is required and installation condition can be adjusted from pin and nut..
The nail made by high tensile material.
Metric Size:
| Dia. (mm) | Length(mm) |
| M6 | 45, 60 |
| M8 | 70, 80 |
| M10 | 50-120 |
| M12 | 60-120 |
| M16 | 100-150 |
| M20 | 100-200 |
Hit Anchor Bolt Steel Nail Strike Anchor Hammer Drive Anchors

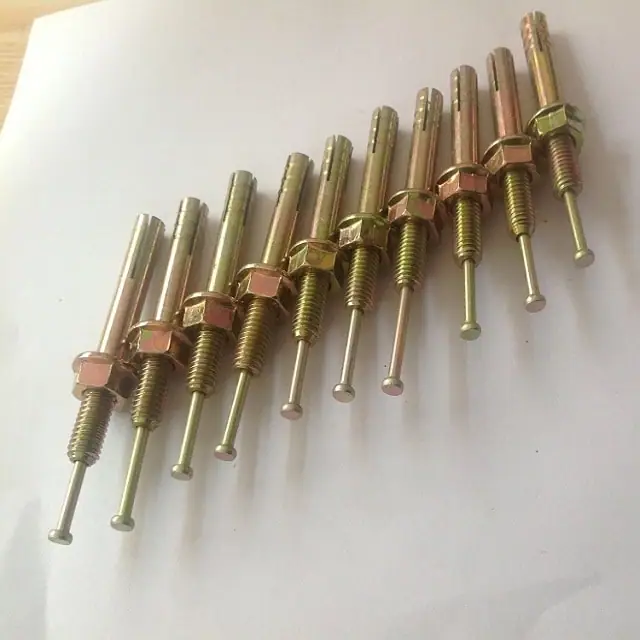

Hit Anchor Bolt Steel Nail Strike Anchors Hammer Drive Anchors
Packing and shipment
Hit Anchor Bolt Steel Nail Strike Anchors Hammer Drive Anchors packing and shipment

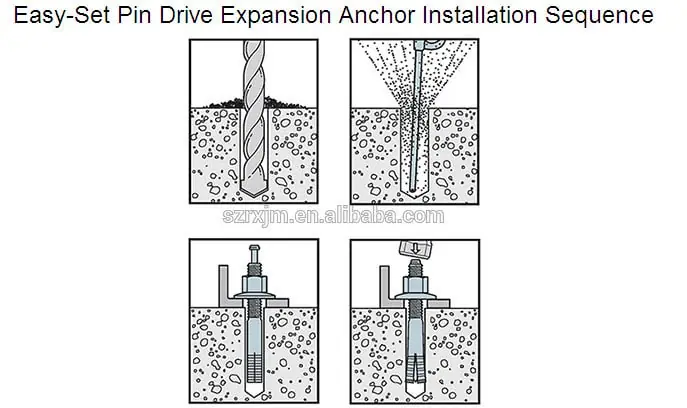

Install method:
Hit Anchor Bolt Steel Nail Strike Anchor Hammer Drive Anchor install method
