CNC Turret Punch Machine

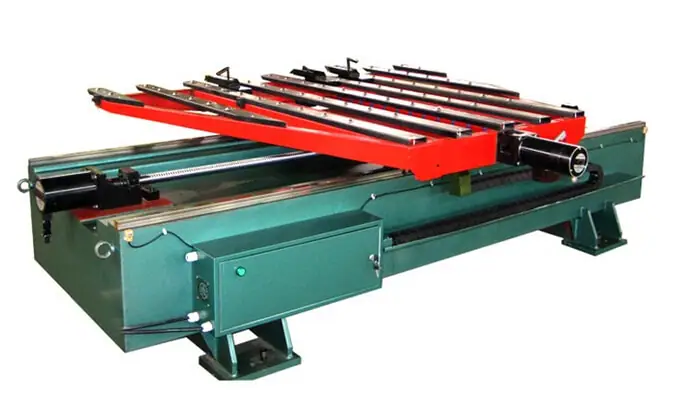

CNC steel material feeder
● After the bed is welded, it is treated by vibration aging and stress relief, and the rigidity is good; ●The clamp is manual, pneumatic or hand-held;
- Dimensions (mm)3200×2160×88
- Types25C
- Suitable for nominal force (KN)63-1250
- Processing the largest sheet (mm)2500×1250
- Machining accuracy (mm)±0.1
- Standard feed rate (m/min)30
- Maximum feeding plate thickness (mm)6
- Number of control axes (a)2
- Built by Ningbo Anchors Precision Machinery Co., Ltd. in Ningbo, China
- More than twenty years experience in cold and hot forging and metal stamping equipment
- Rapid response technical team for operation guidance and production support
Specifications of CNC steel material feeder
| Types | 25C |
| Suitable for nominal force (KN) | 63-1250 |
| Processing the largest sheet (mm) | 2500×1250 |
| Machining accuracy (mm) | ±0.1 |
| Standard feed rate (m/min) | 30 |
| Maximum feeding plate thickness (mm) | 6 |
| Number of control axes (a) | 2 |
| Lead screw lead (mm) | 20 |
| Rated power (kw) | 3.2 |
| Rail spacing (mm) | 800 |
| Dimensions (mm) | 3200×2160×88 |
Features of CNC steel material feeder
● After the bed is welded, it is treated by vibration aging and stress relief, and the rigidity is good;
●The clamp is manual, pneumatic or hand-held;
● The work surface is an integral sheet metal mixed universal ball structure;
●The motor and driver are imported stepping, with unique anti-jitter and noise reduction technology, and the operation is more stable;
●The guide rail and screw are imported brands to ensure the feeding accuracy;
●Configure manual centralized lubrication pump to reduce the friction of each movement pair;
●The cable adopts the special cable for the towline, which has good toughness, oil resistance and anti-interference;
●The main electrical components are imported;
●The control system adopts a special intelligent brand industrial computer with intuitive interface and reliable performance;
● The software is easy to learn, full-featured, and the CAD graphics are directly converted, which is convenient and quick.
