CNC Camless Spring Production Machine

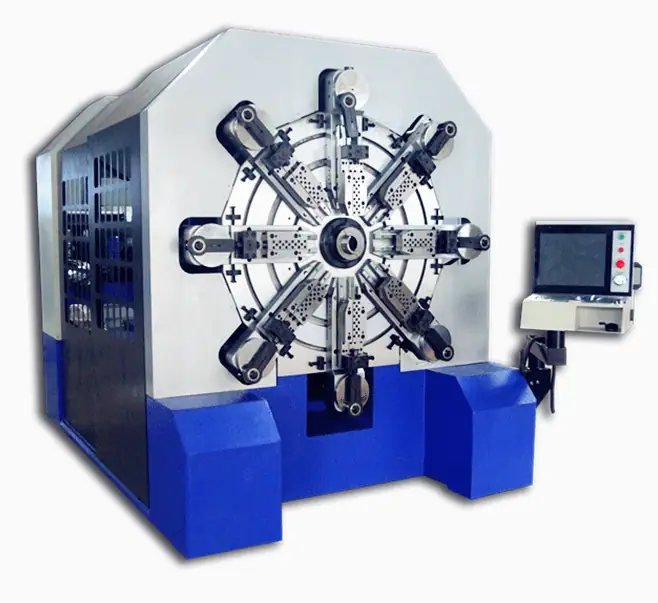

ASF-60T Camless High Speed Springs Production Machine
Unique camless and non-rocker design, independently controlled by multiple sets of servo motors, can produce a variety of special-shaped springs, compression…
- Pneumatic system5-6KG/cm Air pressure
- Machine size3150mm length
- Built by Ningbo Anchors Precision Machinery Co., Ltd. in Ningbo, China
- More than twenty years experience in cold and hot forging and metal stamping equipment
- Rapid response technical team for operation guidance and production support
Salient Features of ASF-60T Camless High Speed Springs Production Machine
- Full automatic design with high efficiency.
- Easy to operate and adjustment.
- Advanced PLC control system optional.
Unique camless and non-rocker design, independently controlled by multiple sets of servo motors, can produce a variety of special-shaped springs, compression springs, double torsion springs, battery springs, flat springs and various wire forming . Precision and accurate, fast, stable and reliable, this machine is also called the eight-jaw spring machine, because he has 8 stations, of course, there is no cam spring machine, because there is no cam, but also CNC spring machine, because it is full computer numerical control of.
Local functions and features:
1. No cam and no rocker arm design ( not only the speed of the machine is more than 50% faster than the traditional cam machine, but also the production speed is faster than 100% , accurate positioning and stable operation ) .
2 , with the advantages of traditional 8- station machinery, and a set of free hands, can play up and down, left and right, free to play (production of difficult springs, easier, faster, more accurate.)
3 , full-rolling guide rail, long-term accuracy.
4 , no collision machine and heat, composite blade to complete all processes, low blade loss.
5 , intelligent module, automatic detection and alarm.
6 , Windows operation system, Chinese and English display, easy to learn and use.
Parameters of ASF-60T Camless High Speed Springs Production Machine
| model | ASF-60T | |
| Wire diameter | 2.0-6.0mm | |
| Maximum wire feed command value | 10000.00mm | |
| Minimum wire feed command value | 0.01mm | |
| Maximum wire feed speed | 80m/ min | |
| Maximum wire length | Infinite length | |
| Number of axes | 12 axis | |
| Servo motor rated output total power | 50KW | |
| Input voltage | 380V | |
| Computer specification | Pentium Industrial Computer | |
| Process data storage | More than 2000 | |
| Pneumatic system | Air pressure | 5-6KG/cm |
| Probe | 3 | |
| Machine size | length | 3150mm |
| width | 2130mm | |
| height | 2400mm | |
| Machine weight | 7000KG | |
Springs made by ASF-60T Camless High Speed Springs Production Machine
