CNC Camless Spring Production Machine

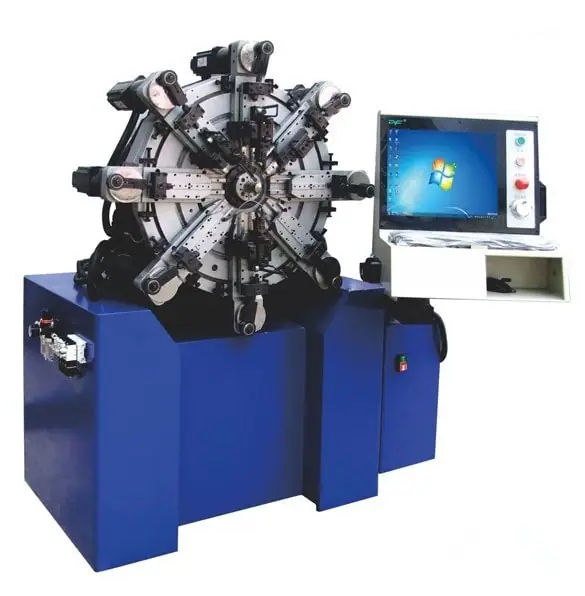

ASF-25T 12 Axles Camless High Speed Spring Production Machine

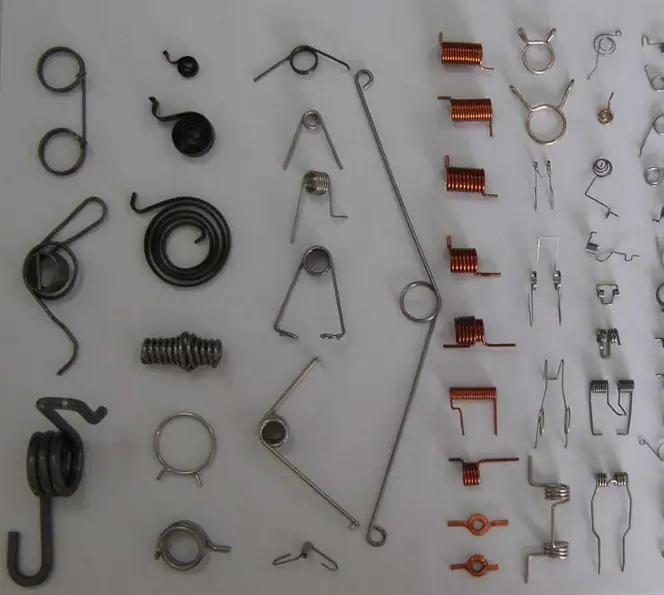

Spring parts made by ASF-25T 12 Axles Camless High Speed Spring Production Machine
- Pneumatic system5-6KG/cm Air pressure
- Machine size1700mm thickness
- Built by Ningbo Anchors Precision Machinery Co., Ltd. in Ningbo, China
- More than twenty years experience in cold and hot forging and metal stamping equipment
- Rapid response technical team for operation guidance and production support
Salient Features of ASF-25T 12 Axles Camless High Speed Spring Production Machine
- Full automatic design with high efficiency.
- Easy to operate and adjustment.
- Advanced PLC control system optional.
1. 12 sets of servo motors independently control eight stations, transfer lines, cores, and wires. The machine is fast (more than 50% faster than cam machines ). It is suitable for manufacturing various high-precision shaped wire forming, tension spring, and twisting. Spring, double torsion spring, etc., the production speed is fast (more than 10% faster than similar products ).
2. The servo motor precision reducer is directly connected to the transmission mode to ensure high precision, long life and high stability, and overcome the shortcomings of low stability of the synchronous belt drive.
3. The tool holder adopts parallel double-rail sliders to maintain high precision and high rigidity for a long time.
4. Simple operation, friendly interface, the computer automatically detects the health status and alarm of the whole machine.
5. High-precision wire box gear manufacturing process, maintaining wire feeding accuracy for a long time.
6. Wide range of applications: electronics, toys, electrical appliances, sports equipment, automobiles, tableware, supermarkets, stationery, instruments, meters, hair accessories, handicrafts.
7. High-torque planetary reducer for transmission with the best stability and accuracy. The main components are imported for higher life and long-term accuracy.
Parameters of ASF-25T 12 Axles Camless High Speed Spring Production Machine
| model | ASF-25T | |
| Wire diameter | 0.2-2.5mm | |
| Maximum wire feed command value | 10000.00mm | |
| Minimum wire feed command value | 0.01mm | |
| Maximum wire feed speed | 100m/min | |
| Maximum wire length | Infinite length | |
| Number of axes | 12 axis | |
| Servo motor output total power | 13000W | |
| Input voltage | 380V | |
| Computer specification | Pentium Industrial Computer | |
| Process data storage | More than 2000 | |
| Pneumatic system | Air pressure | 5-6KG/cm |
| Probe | 3 | |
| Machine size | thickness | 1700mm |
| width | 1400mm | |
| height | 1900mm | |
| Machine weight | 1800KG | |
Spring parts made by ASF-25T 12 Axles Camless High Speed Spring Production Machine
Related Machines
More From CNC Camless Spring Production Machine
Questions About This Machine
Where Is This Machine Made
It is manufactured by Ningbo Anchors Precision Machinery Co., Ltd. in Ningbo, Zhejiang, China, in our own 18,000 square meters workshop with advanced machining equipment.
What Components Are Used In The Machine
We use the world's advanced technology and well-known brands components to ensure high precision and long working life with reliable performance.
Do You Provide Operator Training
Yes. Our professional rapid response technical team instructs machine operation and helps solve problems occurring during production.
Which Countries Do You Export To
Our equipment has been sold to customers all over the world, including Mexico, India, Turkey, Vietnam, Malaysia and South Africa, and many domestic forging and stamping manufacturers in China also use our machines.
How Do I Get A Quotation
Send us your requirement by WhatsApp on +86 185 5689 5898 or email [email protected]. Tell us the fastener or part you want to produce, the size range and the output you need, and we will advise which machine suits.
Tell Us What You Need To Produce
Send your part drawing, size range and target output and our engineers will advise which machine suits your production.
