CNC Camless Spring Production Machine

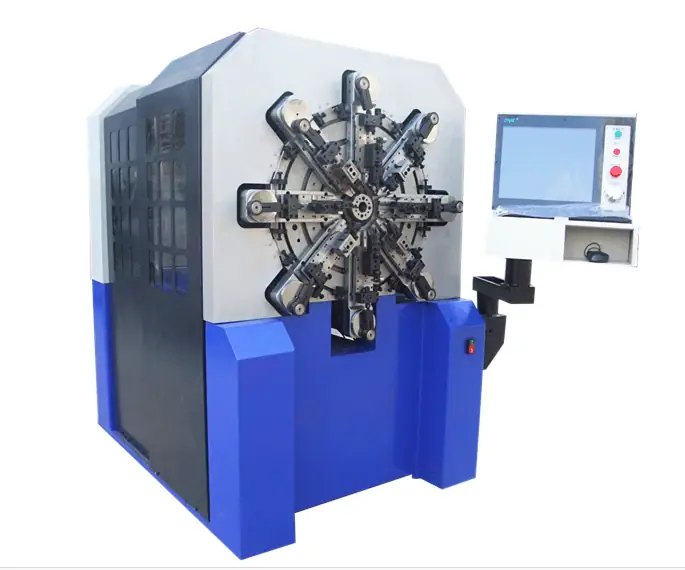

ASF-28T 12 Axles Camless Spring Parts Production Machine
Spring parts made by ASF-28T 12 Axles Camless Spring Parts Production Machine
- Pneumatic system5-6KG/cm Air pressure
- Machine size1550mm length
- Built by Ningbo Anchors Precision Machinery Co., Ltd. in Ningbo, China
- More than twenty years experience in cold and hot forging and metal stamping equipment
- Rapid response technical team for operation guidance and production support
Salient Features of ASF-28T 12 Axles Camless Spring Parts Production Machine
- Full automatic design with high efficiency.
- Easy to operate and adjustment.
- Advanced PLC control system optional.
1. Twelve groups of servo motors independently control eight stations, turn core, feed line, turn, turn. Quick adjustment (more than 50% faster than cam machine, more than 10% faster than similar products)
2. The direct connection mode of servo motor and precision planetary reducer ensures high precision, long life and high stability, and overcomes the shortcomings of low stability of other transmission modes.
3. The tool holder adopts parallel double-rail sliders and has a high-speed lateral movement tool holder for more flexible adjustment.
4. Unique eccentric shaft double-end support, the production of large diameter springs is more stable and more rigid.
5. High-precision wire box gear manufacturing process, full gear transmission line structure, faster and more stable.
6. Arm position 360 degree rotation, powerful line forming ability.
7. Wide application core circumference, suitable for producing all kinds of special-shaped springs, paper clips, tension springs, compression springs, torsion springs, flat springs, spiral coil springs, etc
Parameters of ASF-28T 12 Axles Camless Spring Parts Production Machine
| model | ASF-28T | |
| Wire diameter | 0.4-2.8 | |
| Maximum wire feed command value | 10000.00mm | |
| Minimum wire feed command value | 0.01mm | |
| Maximum wire feed speed | 80m/ min | |
| Maximum wire length | Infinite length | |
| Number of axes | 12 axis | |
| Servo motor rated output total power | 50KW | |
| Input voltage | 380V | |
| Computer specification | Pentium Industrial Computer | |
| Process data storage | More than 2000 | |
| Pneumatic system | Air pressure | 5-6KG/cm |
| Probe | 3 | |
| Machine size | length | 1550mm |
| width | 1250mm | |
| height | 1760mm | |
| Machine weight | 1500KG | |
Spring parts made by ASF-28T 12 Axles Camless Spring Parts Production Machine
Related Machines
More From CNC Camless Spring Production Machine
Questions About This Machine
Where Is This Machine Made
It is manufactured by Ningbo Anchors Precision Machinery Co., Ltd. in Ningbo, Zhejiang, China, in our own 18,000 square meters workshop with advanced machining equipment.
What Components Are Used In The Machine
We use the world's advanced technology and well-known brands components to ensure high precision and long working life with reliable performance.
Do You Provide Operator Training
Yes. Our professional rapid response technical team instructs machine operation and helps solve problems occurring during production.
Which Countries Do You Export To
Our equipment has been sold to customers all over the world, including Mexico, India, Turkey, Vietnam, Malaysia and South Africa, and many domestic forging and stamping manufacturers in China also use our machines.
How Do I Get A Quotation
Send us your requirement by WhatsApp on +86 185 5689 5898 or email [email protected]. Tell us the fastener or part you want to produce, the size range and the output you need, and we will advise which machine suits.
Tell Us What You Need To Produce
Send your part drawing, size range and target output and our engineers will advise which machine suits your production.
