CNC Cam Spring Production Machine

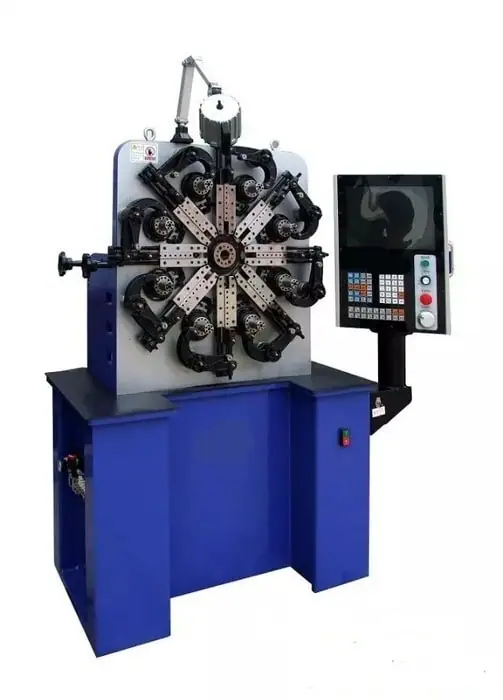

ASF-345C Cam High Speed Spring Forming Machine

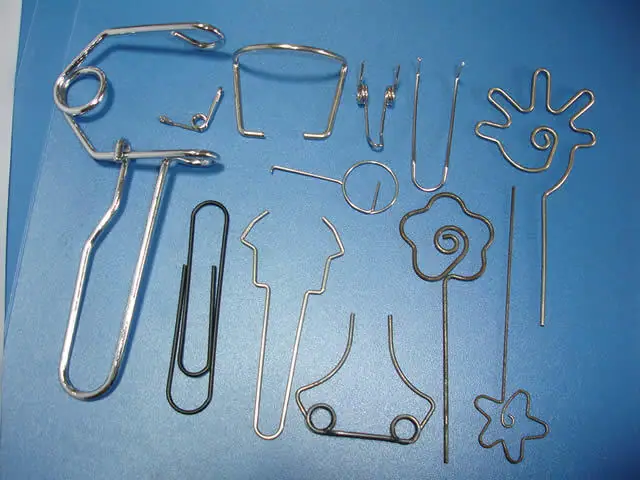

Wire parts made by ASF-345C Cam High Speed Spring Forming Machine
- weight2300kg
- Rollable material wire diameter1.01.0-ф4.2mm (iron wire ф1.0-ф6.0mm)
- Rollable spring maximum outer diameterMaxф80mm
- Wire feed command value±0.01～±9999.99
- Wire feed speed0～110m/min
- Cam command value±0.10°～±359.90°
- Cam speed1 to 60 RPM
- Wire servo motor5.5KW
- Built by Ningbo Anchors Precision Machinery Co., Ltd. in Ningbo, China
- More than twenty years experience in cold and hot forging and metal stamping equipment
- Rapid response technical team for operation guidance and production support
Salient Features of ASF-345C Cam High Speed Spring Forming Machine
- Full automatic design with high efficiency.
- Easy to operate and adjustment.
- Advanced PLC control system optional.
1. Twelve groups of servo motors independently control eight stations, turn core, feed line, turn, turn. Quick adjustment (more than 50% faster than cam machine, more than 10% faster than similar products)
2. Imported servo motor and precision ball screw drive mode ensure high precision, long life and high stability.
3. The tool holder adopts a parallel heavy-duty double-rail slider to ensure high rigidity.
4. Simple operation, friendly interface, the computer automatically detects the health status and alarm of the whole machine.
5. High-precision wire box gear manufacturing process, maintaining wire feeding accuracy for a long time.
6. Wide application core circumference, suitable for producing all kinds of special-shaped springs, wire forming, tension springs, compression springs, torsion springs, flat springs, spiral coil springs, etc.
Parameters of ASF-345C Cam High Speed Spring Forming Machine
| Rollable material wire diameter | 1.01.0-ф4.2mm (iron wire ф1.0-ф6.0mm) |
| Rollable spring maximum outer diameter | Maxф80mm |
| Wire feed command value | ±0.01～±9999.99 |
| Wire feed speed | 0～110m/min |
| Cam command value | ±0.10°～±359.90° |
| Cam speed | 1 to 60 RPM |
| Wire servo motor | 5.5KW |
| Cam servo motor | 5.5KW |
| Rotary core servo motor | 1.5KW |
| power supply | 380V±10%V50HZ |
| size | 1320X730X1720mm |
| weight | 2300kg |
Wire parts made by ASF-345C Cam High Speed Spring Forming Machine
Related Machines
More From CNC Cam Spring Production Machine
ASF-208 Automatic Compression Spring Production MachineASF-212 Automatic Compression Spring Production Machine
ASF-230 Automatic Compression Spring Production Machine
ASF-25T 12 Axles Camless High Speed Spring Production Machine
ASF-28T 12 Axles Camless Spring Parts Production Machine
ASF-320C Cam High Speed Spring Forming MachineASF-335C Cam High Speed Spring Forming Machine
ASF-45T Camless High Speed Spring Fasteners Production MachineQuestions About This Machine
Where Is This Machine Made
It is manufactured by Ningbo Anchors Precision Machinery Co., Ltd. in Ningbo, Zhejiang, China, in our own 18,000 square meters workshop with advanced machining equipment.
What Components Are Used In The Machine
We use the world's advanced technology and well-known brands components to ensure high precision and long working life with reliable performance.
Do You Provide Operator Training
Yes. Our professional rapid response technical team instructs machine operation and helps solve problems occurring during production.
Which Countries Do You Export To
Our equipment has been sold to customers all over the world, including Mexico, India, Turkey, Vietnam, Malaysia and South Africa, and many domestic forging and stamping manufacturers in China also use our machines.
How Do I Get A Quotation
Send us your requirement by WhatsApp on +86 185 5689 5898 or email [email protected]. Tell us the fastener or part you want to produce, the size range and the output you need, and we will advise which machine suits.
Tell Us What You Need To Produce
Send your part drawing, size range and target output and our engineers will advise which machine suits your production.
