Chains Forming Machine

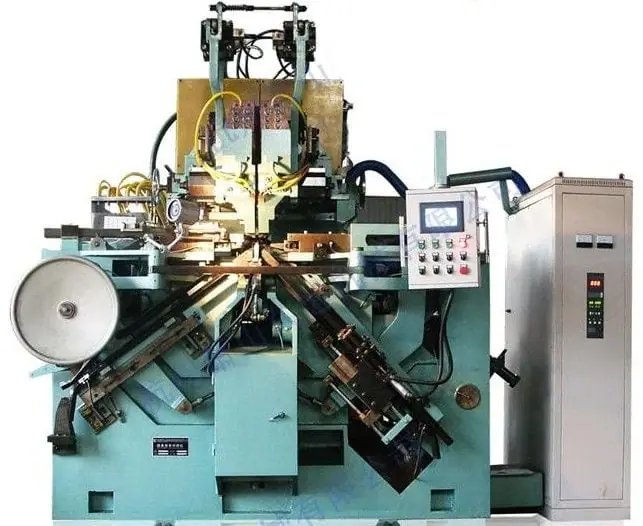

AMW-18 Automatic steel chains seal butt welding machine
Automatic chain butt welding machine is used to weld low-carbon alloy steel lifting chains by resistance twice current flow method on the basis of German…
- Built by Ningbo Anchors Precision Machinery Co., Ltd. in Ningbo, China
- More than twenty years experience in cold and hot forging and metal stamping equipment
- Rapid response technical team for operation guidance and production support
Salient Features of AMW-18 Automatic steel chains seal butt welding machine
Automatic chain butt welding machine is used to weld low-carbon alloy steel lifting chains by resistance twice current flow method on the basis of German advanced technology, available for manual, inching and semiautomatic operation of nineteen procedures including round chain delivery, rotating, welding, upsetting and burring under encoder and PLC control. It is featured by stable and reliable action, convenient maintenance and complete fault protection, and its main performance is comparable to foreign similar products. The product is mainly used to weld lifting round-link chain as well as skid chain, binding chain and mine chain, with remarkable effect and grade 80 attainable.
- Full automatic design with high efficiency.
- Easy to operate and adjustment.
- Advanced PLC control system optional.
Main parameters of AMW-18 Automatic steel chains seal butt welding machine
DC welding mode adopted is energy-saving and eco-friendly, and greatly improves welding quality and reduces power grid waste. It is an original creation in China as it overcomes the impacts of traditional high-power welding machine to peripheral electric appliances.
| Machine model | AMW-18 | |
| Work scope (welding diameter) | φ13-φ18mm | |
| Chain link from the | 33-99mm | |
| Production efficiency | 15-25 (ring/points) | |
|
Transformers: |
Intermediate frequency inverter dc power supply |
|
| Continuous rated load rate | 50% | |
| Nominal capacity | 300KVA | |
|
Motor: |
||
| Rated power /td> | 11kw | |
| Rated speed | Stepless speed regulation (with brake) | |
|
controller |
PLC (mitsubishi) |
|
| Rotary encoder | 600 (turn/points) | |
| Subprime no-load voltage | 4-10 adjustable (V) | |
|
Cooling water: |
||
| pressure | 0.15——0.3（Mpa） | |
| consumption | 45 (l/points) | |
| temperature | 15≤T≤25（℃） | |
|
Pneumatic: |
||
| Air pressure for | ≥0.65（Mpa） | |
| Work pressure | 0.45≤P≤0.65（Mpa） | |
| Air consumption | 30 (lisheng each work cycle) | |
|
power |
320（kw） |
|
| Machine size | 3300mm*2000mm*2940mm | |
| Machine weight | ≈12T |
