Chains Forming Machine

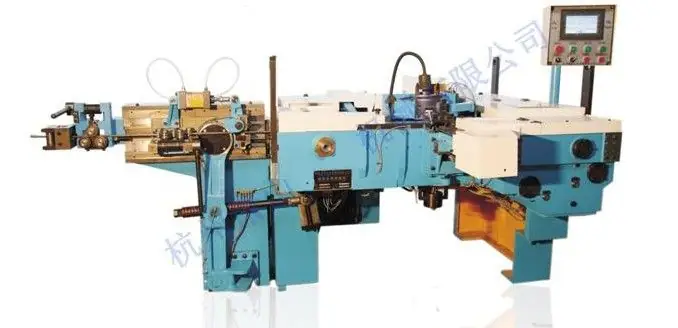

AMC-16 high speed lift ring chains making machine
The AMC series automatic chain braiding machine adopts Italian advanced technology, Is the most advanced automatic chain braiding machine in domestic…
- NOAMC-16 TPYE
- 1Φ11-φ16
- 230~ 108（mm）
- 332~ 77（mm）
- 470~ 305（mm） Feed length
- 520 ~ 40 ring/points
- 615.5KW
- 715KW（380V 50~60HZ） Motor power
- Built by Ningbo Anchors Precision Machinery Co., Ltd. in Ningbo, China
- More than twenty years experience in cold and hot forging and metal stamping equipment
- Rapid response technical team for operation guidance and production support
Salient Features of AMC-16 high speed lift ring chains making machine
The AMC series automatic chain braiding machine adopts Italian advanced technology, Is the most advanced automatic chain braiding machine in domestic. Several models of machine for application Range of diameter 3 – 22mm and so on , the application of Siemens PLC give the chains braiding knitting machine all-round protection and control, safe and reliable, stable performance, strong durability.
- Full automatic design with high efficiency.
- Easy to operate and adjustment.
- Advanced PLC control system optional.
Main parameters of AMC-16 high speed lift ring chains making machine
|
NO |
TPYE |
AMC-16 |
|
1 |
Ring chain wire diameter |
Φ11-φ16 |
|
2 |
Chain link distance |
30~108（mm） |
|
3 |
Ring chain place wide |
32~77（mm） |
|
4 |
Feed length |
70~305（mm） |
|
5 |
Work efficiency |
20 ~ 40 ring/points |
|
6 |
The electric rate |
15.5KW |
|
7 |
Motor power |
15KW（380V 50~60HZ） |
|
8 |
Rated speed |
960rpm |
|
9 |
controller |
PLC Siemens |
|
10 |
Pneumatic for air pressure |
≥0.65（Mpa） |
|
11 |
Air consumption |
3 l/ring |
|
12 |
Machine size |
4800*2940*2100 |
|
13 |
Machine weight |
≈8T |
