Chains Forming Machine

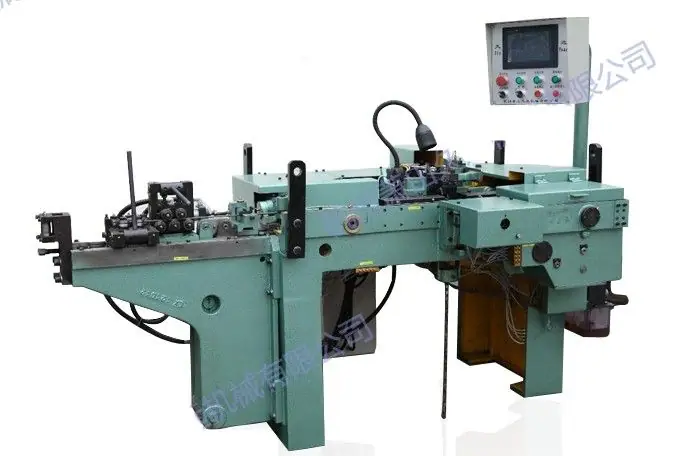

AMC-07 Automatic lifting ring chains forming machine
The AMC series automatic chain braiding machine adopts Italian advanced technology, Is the most advanced automatic chain braiding machine in domestic…
- NOAMC-07 TPYE
- 1Φ3-φ7
- 29~ 42（mm）
- 312~45.5（mm）
- 432~ 127（mm） Feed length
- 535 to 60 ring/points
- 64.5KW
- 74KW（380V 50~60HZ） Motor power
- Built by Ningbo Anchors Precision Machinery Co., Ltd. in Ningbo, China
- More than twenty years experience in cold and hot forging and metal stamping equipment
- Rapid response technical team for operation guidance and production support
Salient Features of AMC-07 Automatic lifting ring chains forming machine
The AMC series automatic chain braiding machine adopts Italian advanced technology, Is the most advanced automatic chain braiding machine in domestic. Several models of machine for application Range of diameter 3 – 22mm and so on , the application of Siemens PLC give the chains braiding knitting machine all-round protection and control, safe and reliable, stable performance, strong durability.
- Full automatic design with high efficiency.
- Easy to operate and adjustment.
- Advanced PLC control system optional.
Main parameters of AMC-07 Automatic lifting ring chains forming machine
|
NO |
TPYE |
AMC-07 |
|
1 |
Ring chain wire diameter |
Φ3-φ7 |
|
2 |
Chain link distance |
9~42（mm） |
|
3 |
Ring chain place wide |
12~45.5（mm） |
|
4 |
Feed length |
32~127（mm） |
|
5 |
Work efficiency |
35 to 60 ring/points |
|
6 |
The electric rate |
4.5KW |
|
7 |
Motor power |
4KW（380V 50~60HZ） |
|
8 |
Rated speed |
1450rpm |
|
9 |
controller |
PLC Siemens |
|
10 |
Pneumatic for air pressure |
≥0.65（Mpa） |
|
11 |
Air consumption |
1.8 L/ring |
|
12 |
Machine size |
2682*1340*1600 |
|
13 |
Machine weight |
≈1.5T |
