Details
Material
: Aluminum alloy, stainless steel,
low carbon steel
Wire diameter
: 1–2 mm
80% customer choose 1.0mm,
13% customer choose 0.8mm,
5% customer choose 1.2mm.
Aperture size
: 4-10mm
Open area
: 40– 85%
Weight
: 1.2-2.0 kg/m2.
(depending on material and size chosen)
Coil length & mesh panelwidth
customized.(up to 11m*100m)
Surface treatment
Anodic oxidation and spray pain
Main material

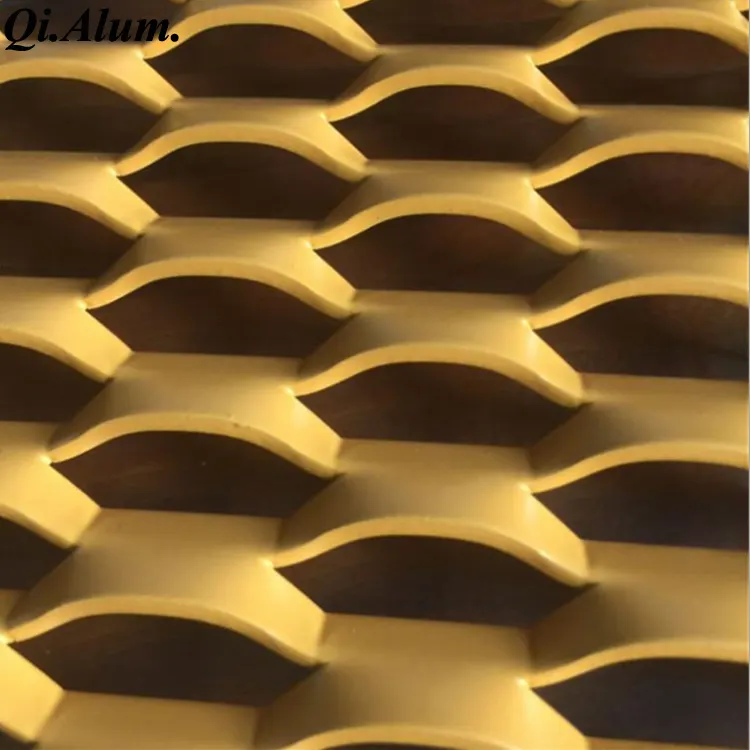

Aluminum alloy metal mesh curtain
temperature 120°C does not fade, anti-acid and anti-alkali, corrosion resistance, not
react with oxidants, suitable for humid environment, not rust or mildew, light
weight, has good toughness and high strength.
•Excellent fireproof characteristics
•Super peeling strength
•Perfect cold resistance performance
•Excellent surface flatness and smoothness
•Superior weather, corrosion, pollutant resistance
•Even coating, various colors
•Superior impact resistance
•Lightweight, easy to process and installation
•Easy to maintain
Surface treatment
The Surface is coated with PVDF fluorocarbon after chromium treatment, and PVDF paint brand options include PPG, Akzo Nobel, Nippon, Tiger and KCC etc. In our factory, we have approximately 100 colors for your choice and we can match the color according to your preference.
Spraying Painting Process
1) As per AAMA2605-98 stipulated by American Architecture Manufacture Association.
2) Pretreatment of aluminum and aluminum alloy
Degrease→Alkaline etch→Roughen(pickling)→Chromizing→Baking
3) PVDF spray painting: Workpiece loading→Primer painting→Top coat painting→Finish painting→Curing→Work piece unloading→Inspection→packing
COMMERCIAL TERM
Aluminum metal expansion mesh with metal frame frame to form a transparent ceiling surface, the system can choose dark bone mode or open bone mode;
1 simple structure, this structure is one-way parallel keel hook type structure (specific reference to the “Z” series), aluminum gusset ceiling installation structure, simple and stable, some structures have special windproof function;
2, connection mode, can choose the secret mode and open mode connection mode; Engineering aluminum ceiling ceiling keel firm well shaped structure combination, smallpox aluminum gusset plate installation and disassembly is easy, the surface is very smooth;
3, transparent grid engineering aluminum ceiling, simple and beautiful, overall, has good sound-absorbing decoration function, for the occasion of strong sound-absorbing effect, such as concert hall, bar, dance hall, etc., can be built in the grid ceiling surface of sound-absorbing moisturizing cotton, can create the sound-absorbing effect.
