Silicone flexible led strip light

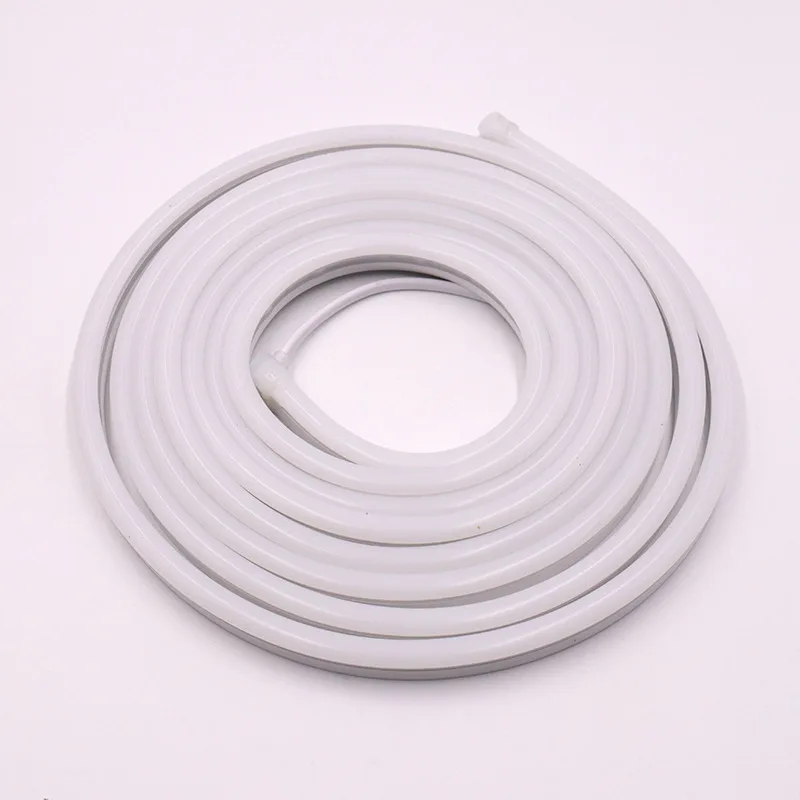

Silicone LED Neon Flex Strip- side view (all sizes)
Side-view design directs light horizontally (not upward/downward), making it perfect for wall washing, edge lighting, or illuminating vertical surfaces. Silicone diffusion ensures no pixelated spots—creating a high-end, uniform aesthetic for indirect lighting.
Glass neon is fragile, power-hungry, and hard to form into custom shapes.
- Side-Facing Light Emission: The LED chips are arranged to perpendicularly to the strips surface (side-oriented), ensuring concentrated lateral illumination.
- Silicone Encapsulation Advantages: Made of food-grade, high-transparency, IP67 waterproof protection, corrosion resistance, and UV resistance .
- Optical Performance: Available in warm white, natural white , cool white , and RGB/RGBW variants. High CRI (Ra ≥80/90) . Beam angle: 120°–150°. high brightness and no dark spots.
- Electrical Stability: Low voltage 12V/24V DC, effective power consumption , and high luminous flux .
- Indoor Decorative & Task Lighting: Cabinet & Shelf Lighting; TV/Monitor Backlighting.
- Commercial & Retail Lighting: Retail Displays; Restaurant & Café Ambiance.
Certifications printed on this family of pages include CE, RoHS, FCC, SAA and PSE where the source listing says so. Confirm the file for this exact SKU before you print a spec sheet.
Specifications published on the source page
| LED type | 2835 / 5050/ 3528/ 2216 smd; COB |
|---|---|
| Model number | WK-SPxx-xx |
| Housing material | silicone |
| Size | see [sideview size list] |
| Input voltage | DC 12V/24V |
| LED qty | customizable |
| Power Consumption | based on led qty |
| Color temperature | R/G/B / 1800-7000K/ RGB/ RGBW… |
| CRI (Ra) | > 80/90/95 |
| Beam angle | 120° |
| Lumens per watt | >90 lm/w |
| IP grade | IP 67/68 |
Factory note
Numbers in the table are copied from the current wellking-led.com product record. Lengths, wattages and IP ratings that are not in that record are not guessed here.
Customization and small trial orders are listed on the about page. Send cut length, CCT, CRI, dimming protocol and destination port with the quote.
