LED wall washer

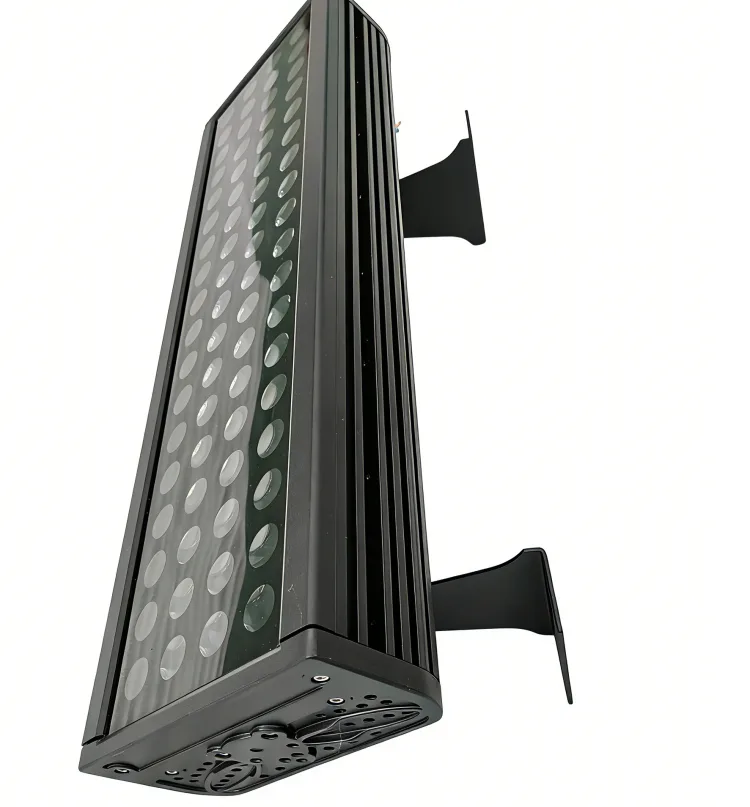

LED wall washer projection lamp W186
This serial product actually we can call led linear projection lamps, which have the bigger power for the decoration of big building.
Facades and architectural walls need even vertical illumination without hot spots.
- Product Features & Advantage: This serial products actually we can call led linear projection lamps, which have the bigger power for the decoration of big building.
- High brightness, uniform light distribution, vivid color rendering (CRI ≥ 80/90).
- Dimmable, color-changing (RGB/RGBW) options, compatible with smart systems.
- IP65/IP67 waterproof rating, corrosion-resistant aluminum housing, suitable for indoor/outdoor use.

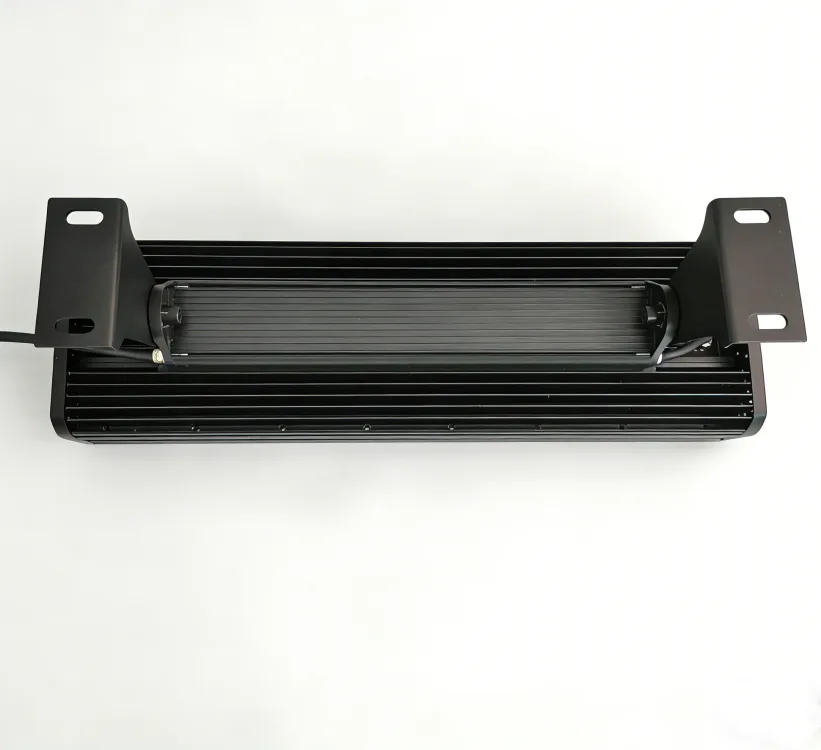

- With adjustable brackets, quick mounting for walls, buildings, landscapes.
- No UV/IR radiation, mercury-free, low heat emission, green lighting solution.
Certifications printed on this family of pages include CE, RoHS, FCC, SAA and PSE where the source listing says so. Confirm the file for this exact SKU before you print a spec sheet.
Specifications published on the source page
| Material | Aluminum Housing+Tempered glass |
|---|---|
| Finish | black; grey |
| Light efficacy | 120lm/w; 130-150lm/w (optional) |
| Input voltage | AC100-240V/DC24V |
| CCT | 2700-7000K /R/G/B/RGB |
| Led type | Cree 3535 |
| CRI | >80/90 |
| Beam angle | 20°/30°/45°/60° |
| SDCM | <3 |
| Dimmable | No dimming/DALI ; 0/1-10V & Triac |
| Other | / |
| IP grade | IP65 |
| Operating Temperature | 20°C ~ +50°C |
| Lifespan | >50,000H(L90,Tc＝55°C) |
| Warranty | 3/5 years |
Factory note
Numbers in the table are copied from the current wellking-led.com product record. Lengths, wattages and IP ratings that are not in that record are not guessed here.
Customization and small trial orders are listed on the about page. Send cut length, CCT, CRI, dimming protocol and destination port with the quote.
