Solar Refridgerator All-in-One Solar Fridge Kit for Home

Complete Solar Fridge Kit With Lithium Battery Pack Long-last 20H Working Time Rechargeable by Solar Energy

Request A Quote Email Us

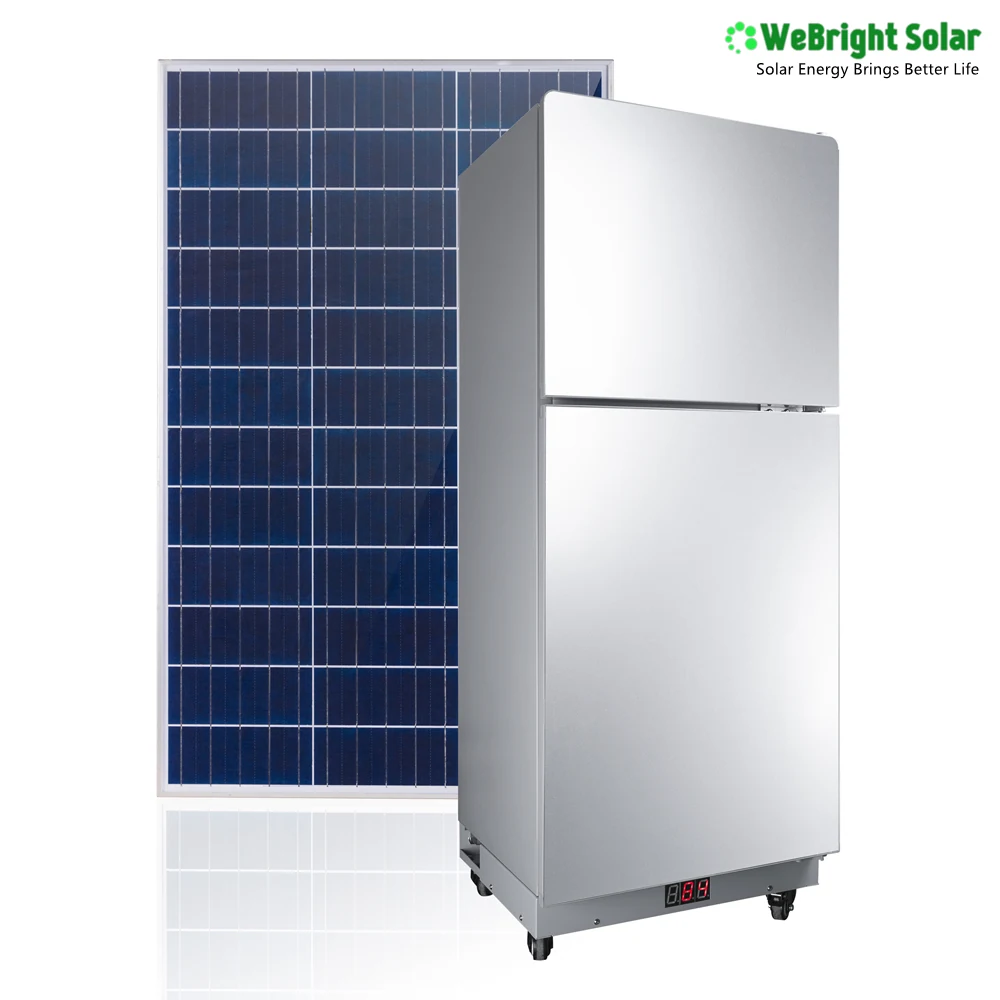

White double-door refrigerator next to a solar panel on a reflective white background.

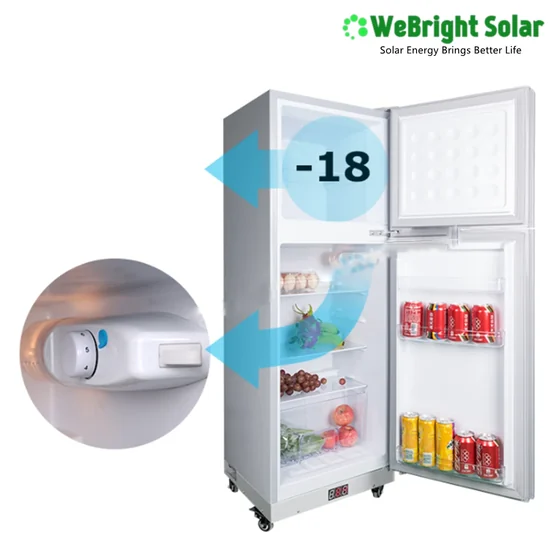

Stainless steel solar refrigerator with battery display and inset images showing interior and lithium batteryOpen upright refrigerator with graphic overlays and a circular inset showing the internal temperature dial.
Product Overview

What This Product Is

A complete all-in-one solar fridge kit for home use with integrated solar panel, inbuilt lithium battery pack, and DC-powered refrigerator. It operates directly on solar energy and can run for up to 45 hours after a full charge. Designed for remote homes and caravans, it includes MPPT charge control, overcharge and overdischarge protection, and uses R600a coolant with no CFCs. The system is pre-configured with matched components so it is ready to operate upon arrival.

Key Benefits

What You Get

  • Runs on solar energy with no grid connection required
  • Inbuilt lithium battery provides 40 to 45 hours of operation after full charge
  • MPPT charge controller ensures efficient solar charging
  • Direct DC consumption reduces energy loss compared to AC systems
  • R600a coolant is CFC-free and environmentally safe
  • Overcharge and overdischarge protection built into the PCBA
Who It Is For

Buyers and Sites

  • Solar installers setting up complete off-grid home systems
  • Importers and wholesalers supplying solar appliances to off-grid markets
  • Homeowners in remote areas seeking a self-contained fridge solution
  • Camping and caravan users needing long-duration cooling
Application Scenarios

Where It Is Installed

  • Remote homes without access to a stable power grid
  • Caravans and mobile living units that rely on solar power
  • Rural households needing reliable refrigeration without diesel generators
  • Emergency backup cooling during grid outages in unstable-grid regions
Problems It Solves

What This Removes From the Job

Technical Features

How It Is Built

  • All-in-one design with solar panel, lithium battery, and DC refrigerator integrated
  • Solar panel rated 32V 260W with 8M cable for easy connection
  • Inbuilt lithium battery with 1100WH or 780WH capacity depending on model
  • MPPT charge controller at 10A for efficient solar charging
  • DC-powered refrigerator with direct solar input and no AC conversion
  • Cooling range: fridge 0~10℃, freezer -18℃, with R600a refrigerant
  • PCBA includes overcharge and overdischarge protection circuits
Specifications

Technical Data

Values below are taken from the product documentation. Anything not listed is confirmed against your order.

Fridge Capacity108L (Freezer 33L, Cold 75L) / 128L (Freezer 35L, Cold 93L) / 138L (Freezer 43L, Cold 95L)
Solar Panel32V 260W with 8M cable
BatteryInbuilt 1100WH or 780WH lithium battery
Charge Controller10A MPPT charging
Fridge Size45cm * 45cm * 105cm / 45cm * 45cm * 119cm / 45cm * 45cm * 150.5cm
CoolantR600a, totally CFC free
Temperature RangeFridge: 0~10℃, Freezer: -18℃
Power Consumption0.54KWh/day / 0.56KWh/day
Charging TimeAbout 8 hours under direct sunshine
Working Time45H / 40H / 40H
Solar Panel Life Span20 years
Battery Life SpanDeep cycle 1500 times (10 years)
Configuration

What Is in the Shipment

The packing list follows this table item by item.

Capacity108L(Freezer33L ,Cold 75L)128L(Freezer35L ,Cold 93L)138L(Freezer43L ,Cold 95L)
Solar Panel32V/260W 8M cable
BatteryInbuilt 1100WH/780WH lithium battery
Charging controller10A ,MPPT charging way
Fridge Size45cm*45cm*105cm45cm*45cm*119cm45cm* 45cm * 150.5cm
CoolantR600a, totally CFC free
TemperatureFridge :0~10℃ ,Freezer:-18℃
Power Consumption0.54KWh/day0.56KWh/day
PCBA ProtectionOvercharge Overdischarge
Charging timeAbout 8 hours under directly sunshine
Working time45H40H40H
Life SpanFor solar panel :20years; For Battery :deep recycle 1500 times (10Year)
Materials

What It Is Made Of

  • Monocrystalline or polycrystalline silicon solar cells in the panel
  • Lithium iron phosphate (LiFePO4) battery chemistry with inbuilt protection
  • R600a refrigerant with no CFCs, safe for indoor use
  • PCBA with overcharge and overdischarge protection circuits
  • Aluminium or steel frame for the fridge and mounting structure
Manufacturing and Preparation

Before It Ships

  • Select the fridge capacity and battery size based on daily power needs
  • Integrate solar panel, battery, and fridge into a single system with MPPT controller
  • Test the full system for charge, discharge, and cooling performance before packing
  • Pack the solar panel, battery, fridge, and controller in a single unit for shipping
Quality Control

Checked Before Packing

Customisation

What Can Be Changed at Order Stage

  • Fridge capacity selected from 108L, 128L, or 138L with corresponding dimensions
  • Battery capacity chosen between 1100WH and 780WH based on runtime needs
  • Solar panel configuration fixed at 32V 260W with 8M cable
  • Fridge size adjusted to match the selected capacity and room space
  • System can be shipped with or without additional mounting brackets
Comparison

How It Compares With the Alternatives

Standard AC fridge with separate solar panel and batterySimpler setup with no need to match voltages or wiring, but less flexibility in component choice
Fridge with AC inverter and lead-acid batteryLonger runtime due to lithium battery and direct DC use, but higher initial cost
Diesel-powered refrigeratorNo fuel logistics or noise, but limited by solar availability during cloudy days
Grid-connected fridgeNo solar dependency, but fails during outages and requires stable power supply
Use Guide

Getting It Working on Site

1

Place the solar panel in direct sunlight with no shading for optimal charging

2

Ensure the fridge is level and has proper ventilation around the condenser

3

Do not open the fridge door frequently to maintain cooling efficiency

4

Charge the system fully before first use to activate the battery management system

5

Check the battery status and cooling performance weekly during extended use

Go Deeper

Related Pages

Related Solutions

Related Guides

Related Products

Others in Solar TV/Fan/Fridge

A white standing fan with a control panel next to a small solar panel on a white background.
Solar TV/Fan/Fridge

Solar Standing Fan DC AC Rechargeable Fan 18 Inch

Complete Fan Kit Rechargeable Fan with Battery With Solar Panel With 6V DC Outlet, USB port Solar Charging / A

View product →
White and blue pedestal fan connected to a small solar panel against a white background
DC Fan

Rechargeable Fan DC AC Solar Fan Kit with Lithium

Complete Fan Kit Rechargeable Fan with Battery With Solar Panel With 6V DC Outlet, USB port Solar Charging / A

View product →
Silver chest freezer with open lid filled with groceries next to a solar panel
Solar TV/Fan/Fridge

Solar Freezer All-in-One Solar Freezer Kit for Home

Complete Solar Freezer Kit With High-Quality Lithium Battery Long-last 20H Working Time Rechargeable by Solar

View product →
Digital render of three solar-powered TVs in 24, 32, and 40-inch sizes with a solar panel graphic.
Solar TV/Fan/Fridge

Solar TV 32″ 40″ Rechargeable All-in-one TV Kit with Lithium Battery

All-in-one TV Kit, Solar powered Long-life Lithium Battery Built-in With LED TV, LED Bulb Lighting With DC 12V

View product →
FAQ

Questions About the Solar Refridgerator All-in-One Solar Fridge Kit for Home

What is the working time after a full charge?

The system runs for 45 hours with the 108L model and 40 hours with the 128L and 138L models.

Can the battery be replaced after 10 years?

Yes. The battery has a lifespan of 1500 deep cycles, equivalent to about 10 years of regular use.

Is the fridge powered directly by solar or through the battery?

The fridge runs directly from the battery, which is charged by the solar panel via the MPPT controller.

Does the kit include the solar panel and battery?

Yes. The solar panel, inbuilt lithium battery, and fridge are all included as a single unit.

How long does it take to charge the battery?

About 8 hours under direct sunshine with the 32V 260W solar panel.

Can I use this fridge in a caravan?

Yes. It is designed for mobile use and can be installed in caravans or remote homes without grid access.

What coolant is used in the fridge?

The fridge uses R600a refrigerant, which is CFC-free and environmentally safe.
