Solar Water Pumping System

Solar Pumping Inverter Water Pumping System 400W to 1800W

Solar Pumping Inverter Power: 400W-1800W With MPPT Max DC Input Volt： 80-200V

Request A Quote Email Us

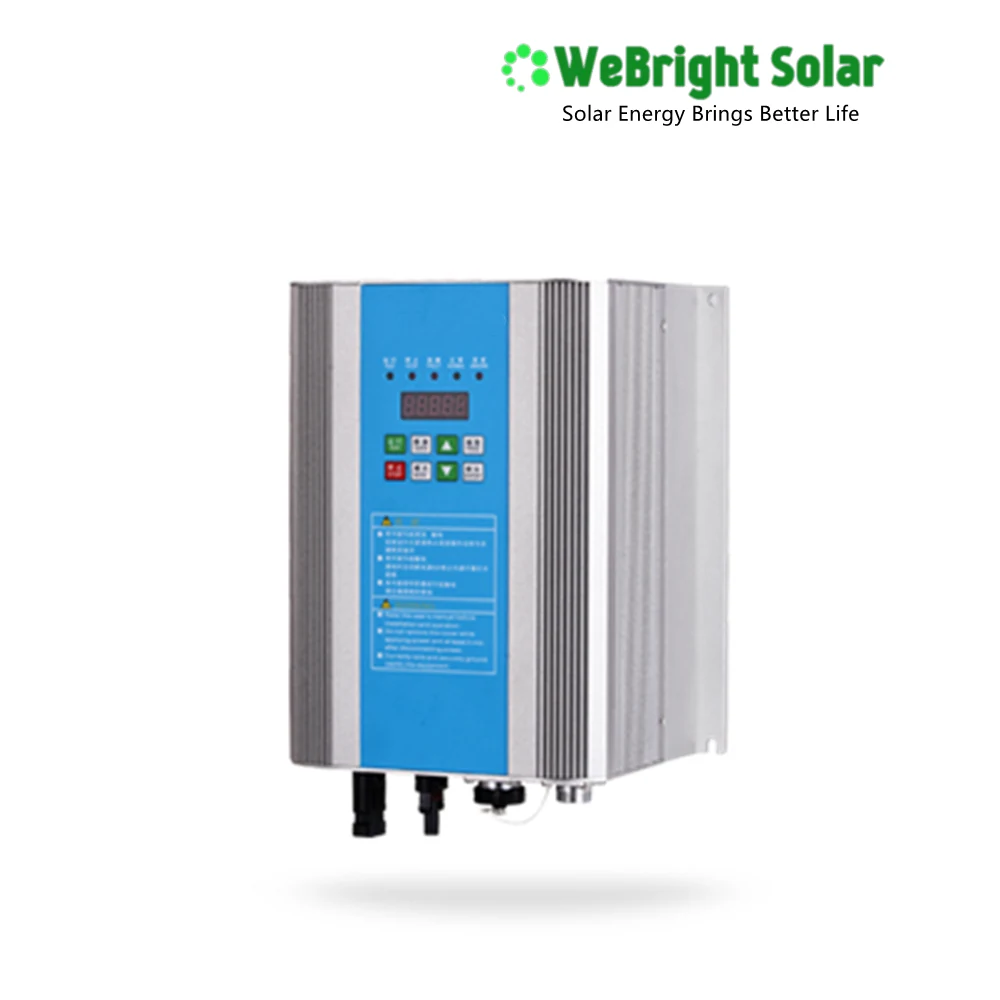

Solar inverter with blue control panel and silver heatsink fins

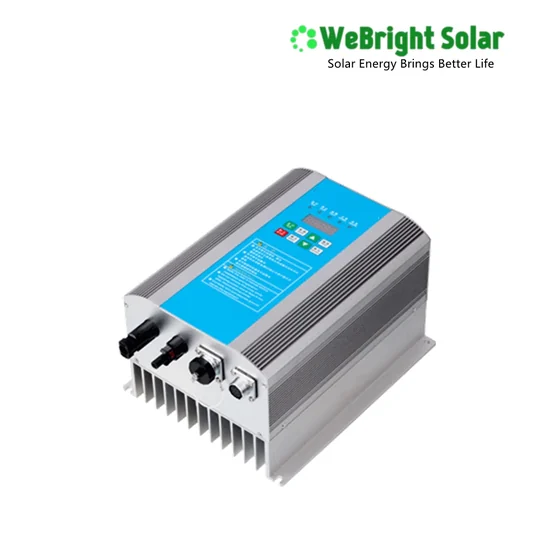

Silver and blue solar charge controller with cooling fins and connection ports.Composite image showing solar panels, inverters, and submersible pumps with company logo.Digital rendering of two solar panels standing vertically against a white background.3D render of a solar panel mounting structure on concrete blocks.
Product Overview

What This Product Is

A solar pumping inverter system from 400W to 1800W designed to control and regulate solar water pumping operations. It converts DC power from the solar array into AC power and adjusts output frequency in real time based on solar radiation to perform maximum power point tracking (MPPT). The system includes a full aluminum alloy shell with IP52 protection, operates in ambient temperatures from -20℃ to +60℃, and supports pumps with high-efficiency permanent magnet DC brushless motors. The kit is delivered as a matched set with inverter, solar panels, mounting bracket, and optional battery, all packed in wooden boxes for export.

Key Benefits

What You Get

  • Controls solar water pump operation with real-time MPPT based on solar radiation
  • High conversion efficiency up to 98% using intelligent power modules (IPM)
  • Supports soft start to reduce mechanical stress on the pump
  • Optional water level switch to prevent dry running and overflow
  • Full aluminum alloy shell with IP52 protection grade for outdoor durability
  • Operates in extreme ambient temperatures from -20℃ to +60℃
Who It Is For

Buyers and Sites

  • Solar installers deploying solar water pumping systems in off-grid regions
  • EPC contractors building irrigation or water supply projects
  • Farmers and agricultural cooperatives needing reliable water pumping
  • Importers and wholesalers supplying solar pumping kits to unstable-grid markets
  • Rural households seeking a low-maintenance water supply solution
Application Scenarios

Where It Is Installed

  • Irrigation systems in remote agricultural areas with no grid access
  • Water supply for livestock in off-grid farms and ranches
  • Domestic water pumping in rural homes without reliable electricity
  • Solar-powered water supply for small villages or community wells
  • Replacement of diesel-powered pumps where fuel delivery is difficult
Problems It Solves

What This Removes From the Job

Technical Features

How It Is Built

  • MPPT function adjusts output frequency in real time based on solar radiation
  • Intelligent power modules (IPM) used in main circuit for high reliability
  • Conversion efficiency up to 98% under optimal conditions
  • Supports soft start to reduce mechanical stress on the pump
  • Optional water level switch to prevent dry running and overflow
  • Full aluminum alloy shell with IP52 protection grade
  • Ambient operating temperature range from -20℃ to +60℃
Specifications

Technical Data

Values below are taken from the product documentation. Anything not listed is confirmed against your order.

System Power400W to 1800W
Max DC Input Voltage80V to 200V
Input Strings1 or 2
Recommended MPP Voltage20 – 60V for 400W, 60 – 120V for 600W, 120 – 160V for 1200W and 1800W
Rated Input Current13A for 400W, 13A for 600W, 11A for 1200W, 16A for 1800W
Rated Output Frequency0 – 110 Hz
Output Voltage24 / 36 Vac for 400W, 48 Vac for 600W, 110 Vac for 1200W and 1800W
Net Weight2.5KG for 400W, 3.6KG for 600W, 5.0KG for 1200W and 1800W
Gross Weight3.3KG for 400W, 4.3KG for 600W, 5.8KG for 1200W and 1800W
Packing Size325 x 285 x 175mm for 400W, 355 x 280 x 225mm for 600W, 445 x 280 x 225mm for 1200W and 1800W
Inverter ModelWS-PM400D, WS-PM600D, WS-PM1200D, WS-PM1800D
Configuration

What Is in the Shipment

The packing list follows this table item by item.

ModelMax.DC input Voltage (V)Input StringsRecommended MPP Voltage (V)Rated Input Current (A)Rated Output Frequency (Hz)Output Voltage (Vac)Net Weight (KG)Gross Weight (KG)Packing Size (mm)
LWH
WS-PM400D80120 – 60130 – 11024 / 362.53.3325285175
WS-PM600D150160 – 120130 – 110483.64.3355280225
WS-PM1200D2001120 – 160110 – 1101105.05.8445280225
WS-PM1800D2002120 – 160160 – 1101105.05.8445280225
Materials

What It Is Made Of

  • Full aluminum alloy shell for the inverter
  • High-efficiency permanent magnet DC brushless motor compatible pumps
  • Intelligent power modules (IPM) in the main circuit
  • Monocrystalline or polycrystalline solar panels, optional PERC type
  • GEL or AGM lead-acid batteries, optional 48V lithium battery
Manufacturing and Preparation

Before It Ships

  • Review pump load and solar array size to match the inverter model
  • Select the appropriate inverter model based on max DC input voltage and MPP voltage range
  • Design mounting structure for flat roof, pitched roof, soil or cement ground using CAD drawings
  • Assemble the system with solar panels, inverter, mounting bracket, and optional battery
  • Perform function test on the inverter with simulated solar input before packing
  • Pack inverter, solar panels, mounting bracket, and battery in wooden boxes for export
Quality Control

Checked Before Packing

Customisation

What Can Be Changed at Order Stage

  • Choose between 400W, 600W, 1200W or 1800W inverter models
  • Select solar panel type: mono, poly, blue, black, or PERC
  • Choose battery type: 2V/12V GEL/AGM or 48V lithium battery
  • Custom mounting structure designed with CAD drawings for roof or ground
  • Adjust output voltage to 24V, 36V, 48V or 110V AC based on pump requirement
Comparison

How It Compares With the Alternatives

Grid-powered water pumpNo grid connection required, but needs solar array and inverter for operation
Diesel-powered pumpNo fuel cost or logistics, but initial solar system cost is higher
Basic solar pump controllerIncludes MPPT and soft start, but basic controllers lack real-time frequency adjustment
AC inverter with no MPPTLess efficient under variable sunlight, but simpler and lower cost
Use Guide

Getting It Working on Site

1

Match the inverter model to the solar array’s max DC input voltage and MPP voltage range

2

Install the solar array so all panels receive uniform irradiance and shading is minimal

3

Connect the inverter to the pump using the correct AC output voltage and frequency

4

Install the water level switch if used to prevent dry running and overflow

5

Ensure the inverter is mounted in a ventilated, shaded area to avoid overheating

6

Check the pump and inverter operation regularly, especially after prolonged sun exposure

Go Deeper

Related Pages

Related Solutions

Related Industries

Related Products

Others in Solar Water Pumping System

Gray industrial VFD motor controller with digital keypad and WeBright Solar logo in corner.
Solar Water Pumping System

Solar Pump Inverter 15KW Water Pumping System 3 Phase

Solar Pump Inverter Power: 400W-200KW Hybrid AC & Solar With Solar MPPT Max DC Input Volt： 200-750V

View product →
Red solar power inverter with digital display and multiple bottom ports on a white background
Solar Water Pumping System

Solar Pumping Inverter with AC and Solar Priority 750W to 22KW

Solar Pumping Inverter 0.75KW-22KW Hybrid AC with Solar Priority Support Multi-link Function Max DC Volt: 450V

View product →
A solar water pump system consisting of a blue and silver controller box and a vertical stainless steel pump.
DC Solar Pump

DC Solar Pump 36V/48V/110V 0.4KW to 1.5KW for Pool and Garden Pump

Permanent magnet DC solar pump Power: 0.25KW-1.5KW With DC brush-less motor Water Head: 10 – 178 m Daily Water

View product →
Red solar pump controller unit and stainless steel submersible pump displayed on a white background.
AC Solar Pump

AC Solar Pump Water Pump Hybrid AC with Solar Priority 0.37KW to 22KW

Solar Pump Hybrid AC with Solar Priority Support Multi-link Function Max DC Volt: 450V/850V Water Head：Upto 25

View product →
FAQ

Questions About the Solar Pumping Inverter Water Pumping System 400W to 1800W

What pump types are compatible with this inverter?

The inverter is compatible with pumps using high-efficiency permanent magnet DC brushless motors.

Does the system include solar panels?

Yes. Solar panels are included in the kit and can be mono, poly, blue, black, or PERC type.

Can I use a lithium battery instead of GEL or AGM?

Yes. 48V lithium batteries are available as an optional upgrade.

What is the operating temperature range?

The inverter operates in ambient temperatures from -20℃ to +60℃.

Is there a water level switch included?

The water level switch is optional and not included by default, but can be added at order stage.

Can the mounting structure be customised?

Yes. Mounting structures are customised using CAD drawings for flat roof, pitched roof, soil, or cement ground installation.

What is the maximum DC input voltage for the WS-PM1800D model?

The maximum DC input voltage for the WS-PM1800D model is 200V. It supports 2 input strings.
