Solar Water Pumping System

Solar Pump Inverter 15KW Water Pumping System 3 Phase

Solar Pump Inverter Power: 400W-200KW Hybrid AC & Solar With Solar MPPT Max DC Input Volt： 200-750V

Request A Quote Email Us
Gray industrial VFD motor controller with digital keypad and WeBright Solar logo in corner.

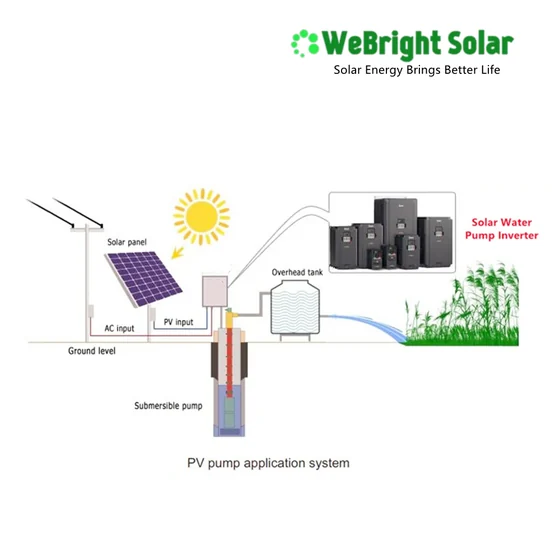

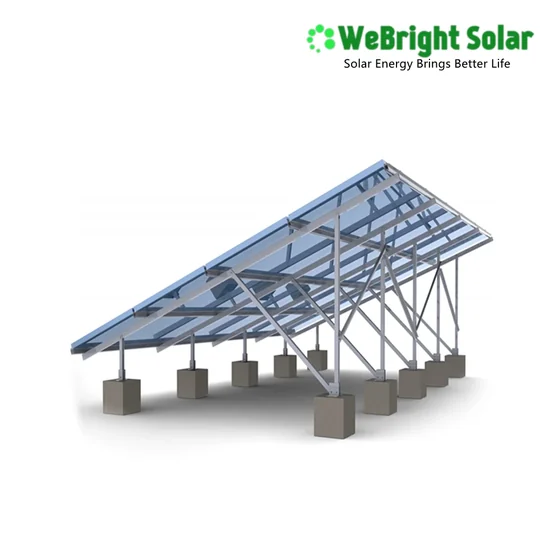

Diagram of a PV pump application system showing solar panels, inverter, submersible pump, and an overhead tank.Digital rendering of two solar panels standing vertically against a white background.3D render of a solar panel mounting structure on concrete blocks.
Product Overview

What This Product Is

A 15KW three-phase solar pump inverter system designed for continuous water pumping in off-grid or unstable-grid areas. It uses MPPT technology to maximise solar power extraction and automatically switches to AC grid or generator input when solar power is insufficient. The system includes the inverter, solar panels, mounting structure, and all necessary accessories for immediate commissioning. The inverter supports both solar and AC input, enabling 24-hour operation without manual intervention.

Key Benefits

What You Get

  • Auto switches between solar and AC input to maintain continuous pumping
  • MPPT tracking efficiency reaches 99% for maximum solar energy harvest
  • Supports 220V single-phase and 220V/380V three-phase pumps up to 200kW
  • Built-in protection against dry running, weak sunshine, full water level and over-temperature
  • Motor soft start and speed control reduce mechanical stress and extend pump life
  • Remote monitoring via GPRS module and APP for real-time system status
Who It Is For

Buyers and Sites

  • Solar installers deploying water pumping systems in remote or unstable-grid regions
  • EPC contractors managing agricultural or water infrastructure projects
  • Farmers and agricultural cooperatives needing reliable water supply without fuel
  • Water utility operators in off-grid zones requiring automated pumping
  • Importers and wholesalers supplying complete solar water pumping kits
Application Scenarios

Where It Is Installed

  • Irrigation for farms and agricultural fields with no reliable grid access
  • Water supply for remote villages or rural communities without consistent power
  • Groundwater extraction in off-grid mining or construction sites
  • Solar-powered water pumping where diesel generator fuel supply is unreliable
  • Continuous pumping in areas with variable sunlight due to weather or season
Problems It Solves

What This Removes From the Job

Technical Features

How It Is Built

  • MPPT technology with 99% tracking efficiency for maximum solar output
  • Supports both solar DC input and AC input from grid or generator
  • Auto-switch function enables 24-hour unattended operation
  • Motor soft start and speed control for smooth pump operation
  • Self-checking functions for dry running, weak sunshine, full water level
  • PV over-voltage protection, polarity reverse warning, auto derating for over-temperature
  • GPRS remote monitoring via APP for real-time performance tracking
Specifications

Technical Data

Values below are taken from the product documentation. Anything not listed is confirmed against your order.

System Power15KW
Input TypeSolar DC and AC grid or generator
Output TypeThree-phase 220V/380V
MPPT Efficiency99%
Max DC Input Voltage750V
Min DC Input Voltage200V
Rated Output Power15KW
Protection LevelIP54
Remote MonitoringGPRS module supported
Input Current33A
Output Current30A
Pump CompatibilitySingle-phase 220V and three-phase 220V/380V
Power Range400W to 200KW
Boost ModuleAvailable for models 2.2kW and below
Configuration

What Is in the Shipment

The packing list follows this table item by item.

ProductsProductsRated out putpower (kW)Rated input current (A)Rated output current (A)
SeriesModel
WS-SS2 (0.75-2.2 kW)WS100-0R7G-SS2-PV0.759.37.2
WS100-1R5G-SS2-PV1.515.710.2
WS100-2R2G-SS2-PV2.22414
WS-S2 Single-phase 220V (0.75-2.2 kW)WS100-0R7G-S2-PV0.759.34.2
WS100-1R5G-S2-PV1.515.77.5
WS100-2R2G-S2-PV2.22410
WS-2 Three-phase. 220V (4-7.5kW)WS100-004G-2-PV41716
WS100-5R5G-2-PV5.52520
WS100-7R5G-2-PV7.53330
WS-4 Three-phase 380V (0.75-200KW)WS100-0R7G-4-PV0.753.42.5
WS100-1R5G-4-PV1.554.2
WS100-2R2G-4-PV2.25.85.5
WS100-004G-4-PV413.59.5
WS100-5R5G-4-PV5.519.514
WS100-7R5G-4-PV7.52518.5
WS100-011G-4-PV113225
WS100-015G-4-PV154032
WS100-018G-4-PV18.54738
WS100-022G-4-PV225145
WS100-030G-4-PV307060
WS100-037G-4-PV378075
WS100-045G-4-PV459892
WS100-075G-4-PV75139150
WS100-090G-4-PV90168180
WS100-200G-4-PV200385380
Materials

What It Is Made Of

  • Monocrystalline or polycrystalline solar panels, 450W available
  • Aluminium or galvanised steel mounting structure for ground or roof
  • IP54-rated metal cabinet for inverter enclosure
  • Single-core PV cable in 4mm2 and 6mm2 cross section
  • MC4 connectors for panel interconnection
Manufacturing and Preparation

Before It Ships

  • Review pump power and voltage requirements to match the 15KW inverter
  • Select solar panel quantity and configuration to match the 200-750V DC input range
  • Install mounting structure on ground or roof with correct tilt and orientation
  • Connect solar panels to the inverter via combiner box and MC4 connectors
  • Link the inverter output to the three-phase pump motor
  • Power up the system and verify auto-switch function between solar and AC input
Quality Control

Checked Before Packing

Customisation

What Can Be Changed at Order Stage

  • Pump voltage and phase selected from single-phase 220V or three-phase 220V/380V
  • Boost module added for low-voltage operation in models 2.2kW and below
  • Solar panel count adjusted based on site irradiance and pump load
  • Mounting structure customised for ground, roof or pole installation
  • Remote monitoring enabled with GPRS module and APP integration
Comparison

How It Compares With the Alternatives

Grid-tie pump systemOperates without grid, but requires battery or generator backup during low solar
Diesel pump systemNo fuel cost or noise, but requires solar array and inverter for initial setup
Simple solar pump with no inverterNo auto-switch or protection, leading to pump damage during low sun or dry run
Single-phase inverter systemSupports three-phase pumps for higher power and efficiency, but requires three-phase input
Use Guide

Getting It Working on Site

1

Confirm the pump is three-phase 220V/380V and matches the inverter output

2

Install solar panels with uniform orientation and minimal shading

3

Connect the inverter to the pump motor and ensure correct phase sequence

4

Enable GPRS module and verify remote monitoring via APP

5

Test auto-switch function by blocking solar input and verifying AC backup activation

6

Keep the inverter cabinet clean and dry to maintain IP54 protection

Go Deeper

Related Pages

Related Solutions

Related Industries

Related Products

Others in Solar Water Pumping System

Solar inverter with blue control panel and silver heatsink fins
Solar Water Pumping System

Solar Pumping Inverter Water Pumping System 400W to 1800W

Solar Pumping Inverter Power: 400W-1800W With MPPT Max DC Input Volt： 80-200V

View product →
Red solar power inverter with digital display and multiple bottom ports on a white background
Solar Water Pumping System

Solar Pumping Inverter with AC and Solar Priority 750W to 22KW

Solar Pumping Inverter 0.75KW-22KW Hybrid AC with Solar Priority Support Multi-link Function Max DC Volt: 450V

View product →
A solar water pump system consisting of a blue and silver controller box and a vertical stainless steel pump.
DC Solar Pump

DC Solar Pump 36V/48V/110V 0.4KW to 1.5KW for Pool and Garden Pump

Permanent magnet DC solar pump Power: 0.25KW-1.5KW With DC brush-less motor Water Head: 10 – 178 m Daily Water

View product →
Red solar pump controller unit and stainless steel submersible pump displayed on a white background.
AC Solar Pump

AC Solar Pump Water Pump Hybrid AC with Solar Priority 0.37KW to 22KW

Solar Pump Hybrid AC with Solar Priority Support Multi-link Function Max DC Volt: 450V/850V Water Head：Upto 25

View product →
FAQ

Questions About the Solar Pump Inverter 15KW Water Pumping System 3 Phase

What pump types can this inverter drive?

It supports single-phase 220V and three-phase 220V/380V pumps, with power from 0.4kW to 200kW.

Can the system run at night or on cloudy days?

Yes. The inverter automatically switches to AC grid or generator input when solar power is insufficient.

Is remote monitoring included?

Yes. The system supports GPRS module for remote monitoring via APP.

What protection features are built in?

Includes dry running protection, weak sunshine detection, full water level sensing, over-temperature auto derating, and PV over-voltage and polarity reverse warnings.

Can I use this with a low-voltage solar array?

Yes. Models 2.2kW and below can be configured with a boost module to operate in low voltage.

How is the system packed for shipping?

The inverter, solar panels, mounting structure, and accessories are packed in wooden boxes for export.

Can the mounting structure be customised?

Yes. The mounting system can be adapted for ground, roof, or pole installation based on site conditions.
